K30ALBT2WBH Banner Electronic Components

K30ALBT2WBH on Powermatic Associates
Banner

Part#:K30ALBT2WBH

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

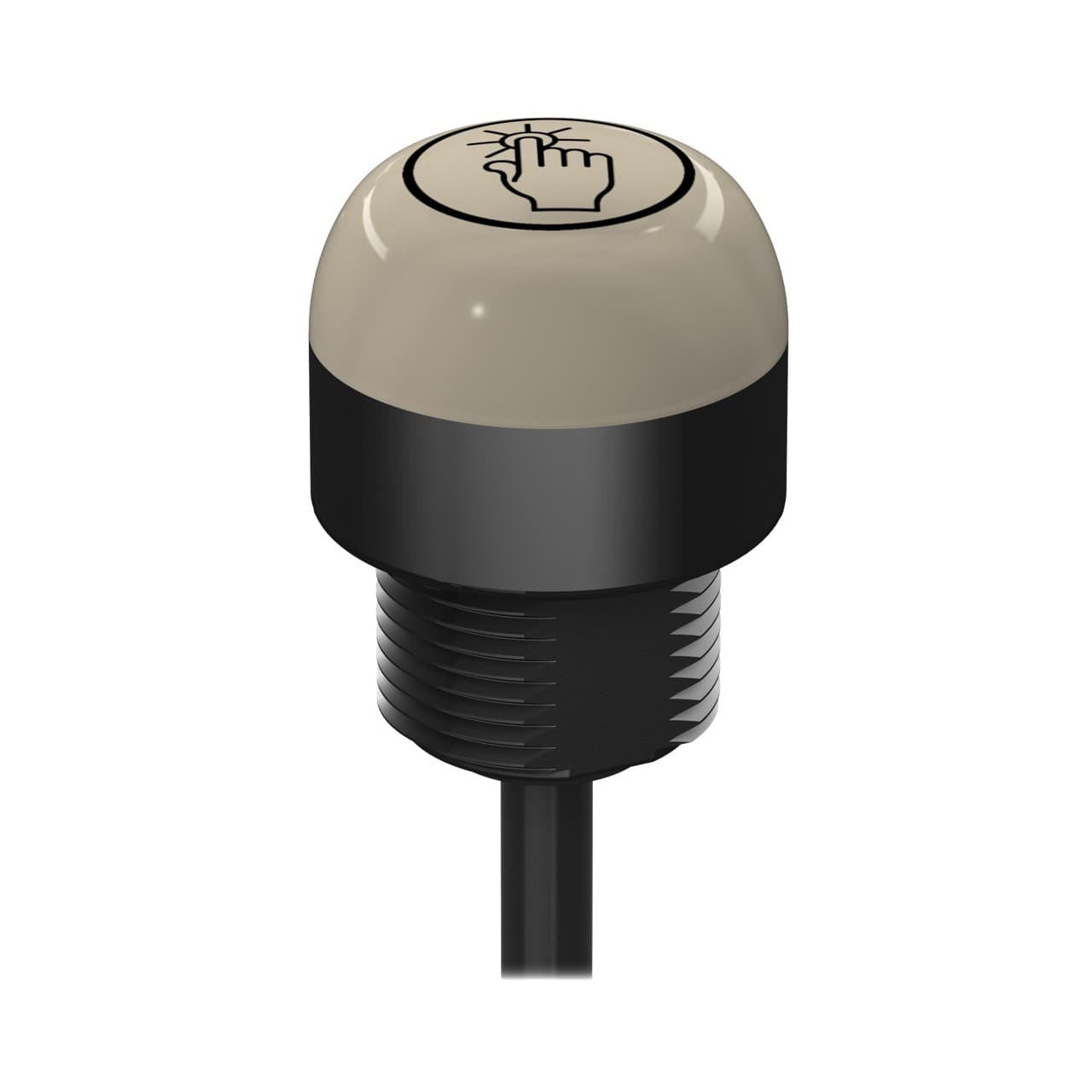

Banner Engineering K30ALBT2WBH is a capacitive touch-sensitive button designed with Gen.2 2-color LED illumination that changes from white (not activated) to blue (activated). It features a black housing with a dome-shaped window made from diffused polycarbonate (PC), and a base also constructed from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The K30ALBT2WBH can be mounted via surface or base pole with an M22 thread and has a 30mm / 1-3/16" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is a latched NO (Normally Open) touch output, and it includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.

Product Details

  • Power Source
    DC
  • Color Technology
    Standard LED
  • Input Type
    Bimodal (PNP/NPN)
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 1
    White
  • Number of Colors / Segments
    2
  • Max Current Color (mA)
    55
  • Mounting Thread
    M22 x 1.5
  • Lumens Color 1
    5.0
  • Color 2 - Wavelength/Color Temp/Coordinates
    470 nm
  • Storage Temp (°C)
    -40 to 70
  • Feature: Washdown Rated
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Color 1 - Wavelength/Color Temp/Coordinates
    7500K
  • Operation
    Normally Open
  • Min Op. Temperature (°C)
    -40
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Animation Option 1
    Solid On
  • Output Type
    Bipolar (NPN & PNP)
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Multi-Color Device
    Single Color On
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 2
    1.0
  • Max Output Response Time (ms)
    150
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Modbus RTU
    No
  • Activation Function
    Capacitive Touch
  • Product Size (mm)
    30
  • Supply Voltage
    12-30 V dc
  • Environmental Rating
    IP67; IP69
  • Feature: Hazardous Area
    No
  • Actuation
    Yes
  • Cable Length (m)
    2
  • Color Option 2
    Blue
  • Max Input Response Time (ms)
    300
  • Primary Window Material
    Polycarbonate Diffused
  • Wireless
    No
  • Primary Housing Material
    Polycarbonate
  • Connection
    Cable
  • Number of Input Pins/Conductors
    5
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Op. Temperature (°C)
    50
  • Button Operation
    Latching
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
