Part#:K30APTRGF2

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

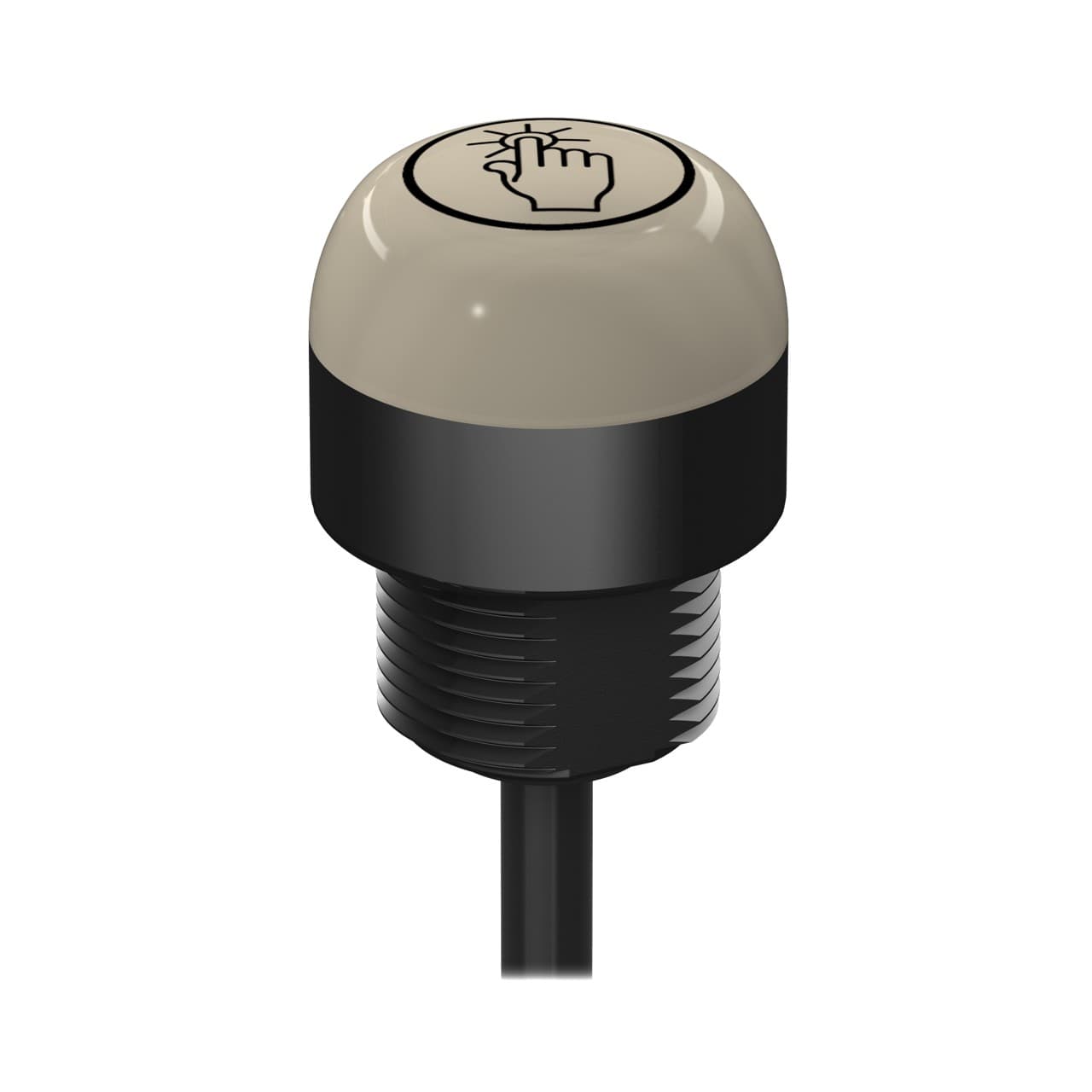

Banner Engineering K30APTRGF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and the base. This unit is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, supporting a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal). It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm / 1-3/16". It operates within an ambient air temperature range of -40°C to +50°C and boasts a high degree of protection rated at IP67, IP69K, NEMA 4X, and NEMA 13. The operating mode includes a momentary job light where the red light is on when power is applied, and the green light activates when the input is active. Touch activates the output only with a Normally Open (NO) touch output. The device has a current consumption of 55mA, one digital input (12-30Vdc; PNP) for job color control, and one digital output (12-30Vdc; PNP) for touch functionality.

Product Details

  • Mounting Thread
    M22 x 1.5
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -40
  • Button Operation
    Momentary
  • Actuation
    Yes
  • Max Current Color (mA)
    55
  • Max Output Response Time (ms)
    150
  • Feature: Washdown Rated
    Yes
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Output Type
    PNP
  • Feature: Chemical Resistant
    No
  • Wireless
    No
  • Activation Function
    Capacitive Touch
  • Color Option 2
    Green
  • Environmental Rating
    IP67; IP69
  • Multi-Color Device
    Single Color On
  • Product Size (mm)
    30
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Max Input Response Time (ms)
    300
  • Feature: Quick Disconnect
    No
  • Primary Housing Material
    Polycarbonate
  • Connection
    Cable
  • Input Type
    PNP
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Audible
    No
  • Housing Style
    Base Mount - Dome Window
  • Number of Colors / Segments
    2
  • Number of Input Pins/Conductors
    4
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Cable Length (m)
    0.15
  • Color Technology
    Standard LED
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Pro-Editor Compatible (Discrete)
    No
  • Color Option 1
    Red
  • Operation
    Normally Open
  • Max Op. Temperature (°C)
    50
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power
    DC
  • Pick-to-Light Function
    F2
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K30APTRGF2 Related Documents

K30 Touch Illuminated Multipurpose Buttons -- Datasheet-1630952689486.pdfK30C CABLE-1630952689482.stpK30C CABLE-1630952689484.pdf
