K30APT2BRYF2Q Banner Electronic Components

K30APT2BRYF2Q on Powermatic Associates
Banner

Part#:K30APT2BRYF2Q

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

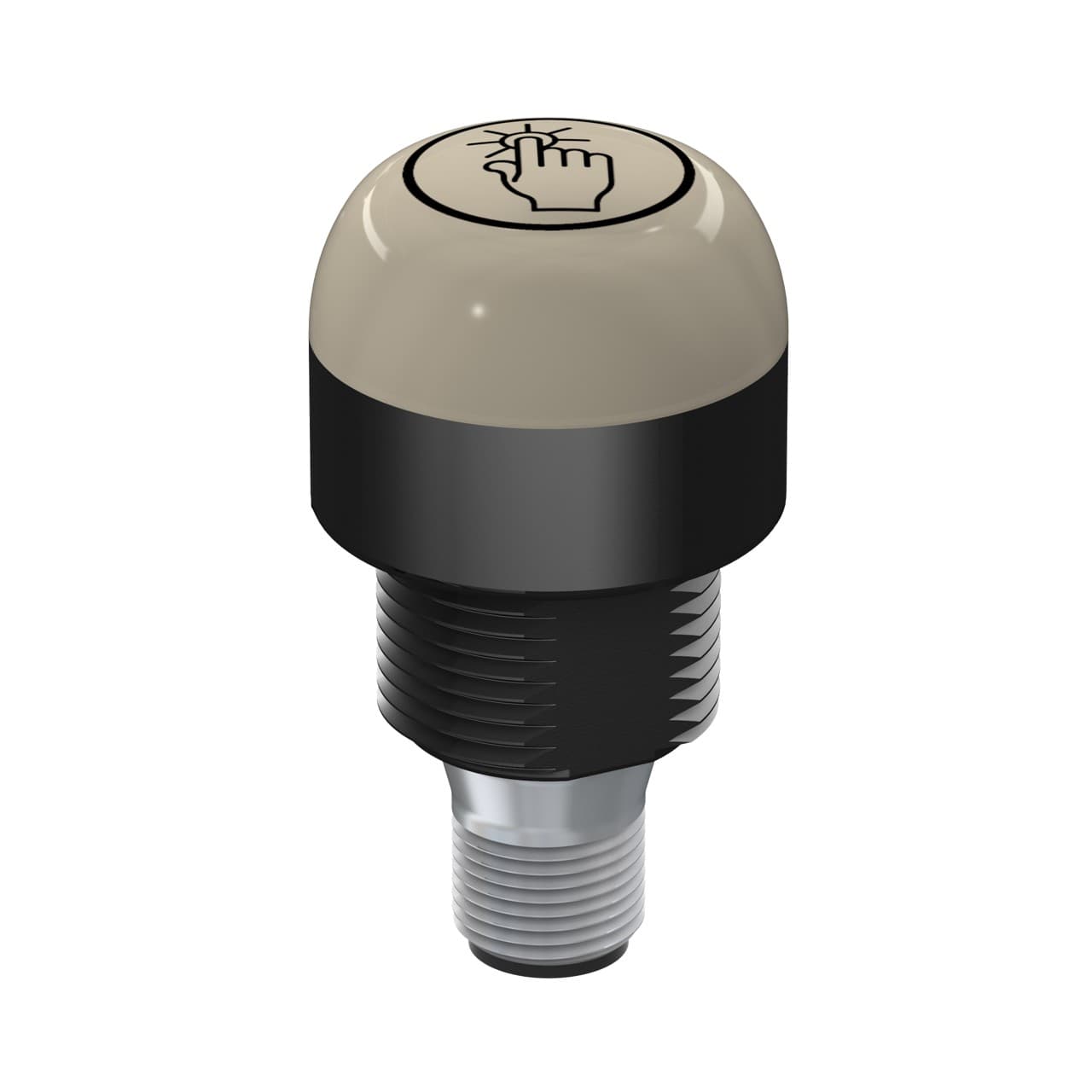

Banner Engineering K30APT2BRYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC), ensuring durability. This part is equipped with an 8-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface, base, or pole flush with a 22mm hole and M22 thread. The dome diameter measures 30mm / 1-3/16". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K, making it suitable for harsh environments. The operating mode includes a momentary job light (B/R/Y; Blue or Red or Yellow) that is ON when one of the 3 job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It also features 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.

Product Details

  • Power Source
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Color Option 3
    Yellow
  • Supply Voltage
    12-30 V dc
  • Feature: Audible
    No
  • Number of Colors / Segments
    3
  • Color Option 1
    Blue
  • Lumens Color 2
    1.7
  • Output Type
    PNP
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    30
  • Color 3 - Wavelength/Color Temp/Coordinates
    580 nm
  • Max Input Response Time (ms)
    300
  • Primary Housing Color
    Black
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • Pick-to-Light Function
    F2
  • Input Type
    PNP
  • Storage Temp (°C)
    -40 to 70
  • Mounting Thread
    M22 x 1.5
  • Lumens Color 1
    1.0
  • Number of Input Pins/Conductors
    8
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Feature: Hazardous Area
    No
  • Actuation
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Output Response Time (ms)
    150
  • Feature: Washdown Rated
    Yes
  • IO Link
    No
  • Activation Function
    Capacitive Touch
  • Color Technology
    Standard LED
  • Lumens Color 3
    4.4
  • Operation
    Normally Open
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Housing Style
    Base Mount - Dome Window
  • Connection
    Integral QD
  • Max Current Color (mA)
    55
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 54.5
  • Primary Window Material
    Polycarbonate Diffused
  • Modbus RTU
    No
  • Power
    DC
  • Color Option 2
    Red
  • Environmental Rating
    IP67; IP69
  • Button Operation
    Momentary
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    50
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
