K30ABT2GGH Banner Pick-to-Light Sensors

Name: K30ABT2GGH
Brand: Banner
Price: 127 USD
Availability: BackOrder

Part#:K30ABT2GGH

Alt. Part#:96566

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K30 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: Green - Not Activated, Green - Activated; 2 m (6.5 ft) PVC Cable

Product Details

Weight
58.96696 g
Country Of Origin
MX
Primary Housing Material
Polycarbonate
Color Technology
Standard LED
Number of Input Pins/Conductors
5
Max Op. Temperature (°C)
50
Wireless
No
Activation Function
Capacitive Touch
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Max Current Color (mA)
55
Environmental Rating
IP67; IP69
Min Op. Temperature (°C)
-40
Cable Length (m)
2
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Connection
Cable
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Audible
No
Color Option 2
Green
Physical Dimensions (LxWxH or DxH mm)
30.0 x 41.0
Feature: Washdown Rated
Yes

Number of Colors / Segments

Color 2 - Wavelength/Color Temp/Coordinates

525 nm

Max Output Response Time (ms)

150

Feature: Hazardous Area

Power

Product Size (mm)

Output Type

Bipolar (NPN & PNP)

Primary Housing Color

Black

Feature: Chemical Resistant

Feature: Quick Disconnect

Actuation

Yes

Lumens Color 1

4.4

Supply Voltage

12-30 V dc

Primary Window Material

Polycarbonate Diffused

Power Source

Color Option 1

Green

Input Type

Bimodal (PNP/NPN)

Button Operation

Momentary

Mounting Thread

M22 x 1.5

Lumens Color 2

4.4

Max Input Response Time (ms)

300

NEMA Type and UL Type Rating

NEMA and UL 4X, 13

Housing Style

Base Mount - Dome Window

Animation Option 1

Solid On

Operation

Normally Open

Storage Temp (°C)

-40 to 70

Multi-Color Device

Single Color On

Pro-Editor Compatible (Discrete)

Modbus RTU

IO Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30ABT2GGH on Powermatic Associates is $127.00. Order now.

About the product

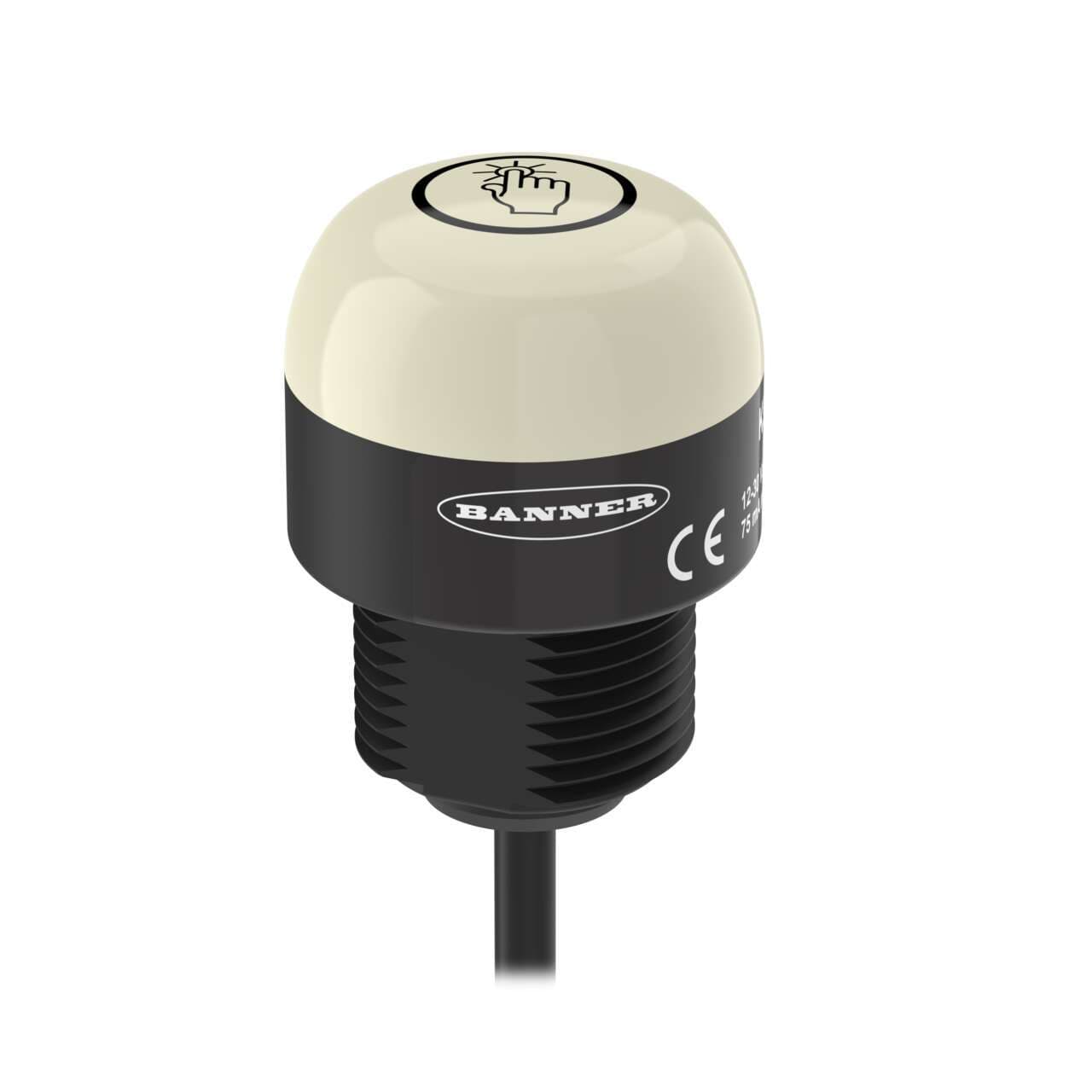

Banner Engineering K30ABT2GGH is an illuminated capacitive touch-sensitive button designed with Gen.2 1-color G (Not activated) / G (Activated) LED illumination, housed in a black polycarbonate base with a dome-shaped diffused window. It features a pre-wired connection with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 12Vdc-30Vdc (24Vdc nom.). This part offers versatile mounting options, including surface or base pole with an M22 thread, and has a 30mm / 1-3/16" dome diameter. It operates within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The K30ABT2GGH operates in a momentary NO (Normally Open) touch output mode and includes 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
