K30ANT2XRF2QP Banner Electronic Components

K30ANT2XRF2QP on Powermatic Associates
Banner

Part#:K30ANT2XRF2QP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

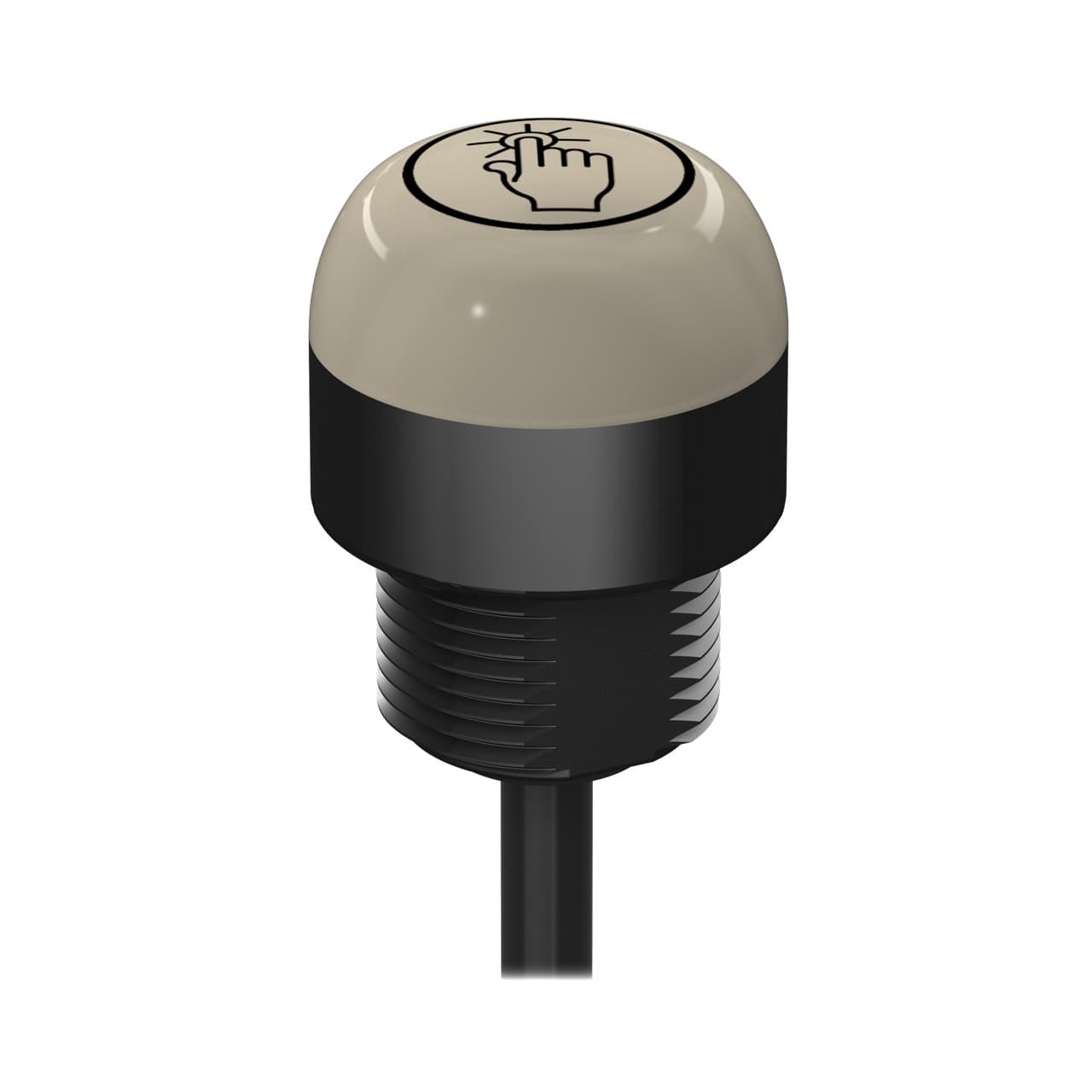

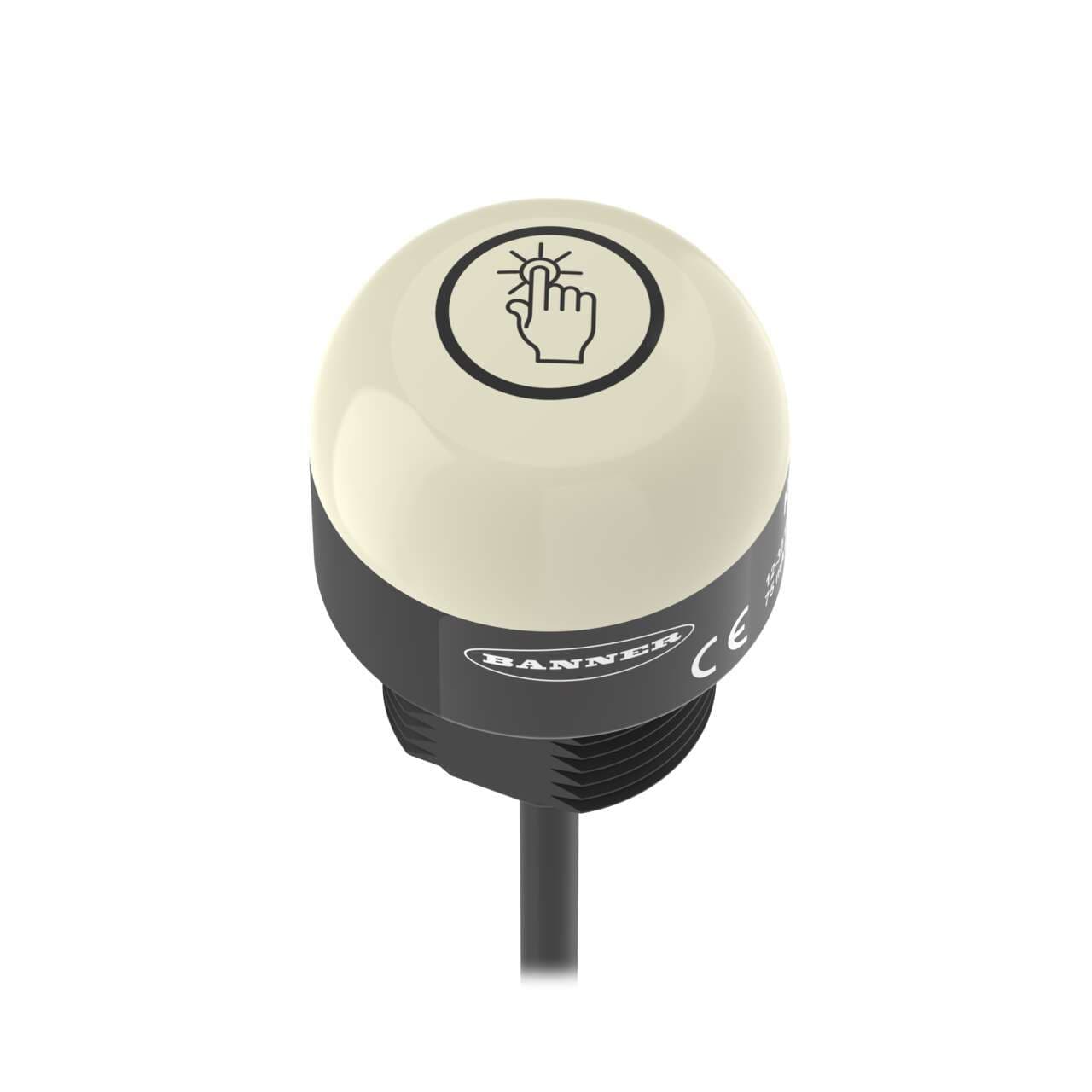

K30 Series EZ-LIGHT: 1-Input-Color Touch Sensor Gen 2;, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Input: NPN (NO); Colors: None - Power applied, Red- Input Active, Euro 4-pin 150 mm (6 in) PVC Pigtail

Product Details

  • Power
    DC
  • Max Current Color (mA)
    55
  • Input Type
    NPN
  • Actuation
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Feature: Hazardous Area
    No
  • Housing Style
    Base Mount - Dome Window
  • Lumens Color 2
    1.7
  • Output Type
    NPN
  • Storage Temp (°C)
    -40 to 70
  • Mounting Thread
    M22 x 1.5
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Physical Dimensions (LxWxH or DxH mm)
    30.0 x 41.0
  • Feature: Washdown Rated
    Yes
  • Power Source
    DC
  • Product Size (mm)
    30
  • Number of Input Pins/Conductors
    4
  • Min Op. Temperature (°C)
    -40
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Pick-to-Light Function
    F2
  • Environmental Rating
    IP67; IP69
  • Multi-Color Device
    Single Color On
  • Primary Housing Material
    Polycarbonate
  • Connection
    Pigtail QD
  • Operation
    Normally Open
  • Max Op. Temperature (°C)
    50
  • Activation Function
    Capacitive Touch
  • Color Technology
    Standard LED
  • Max Input Response Time (ms)
    300
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Quick Disconnect
    Yes
  • Number of Colors / Segments
    1
  • Color Option 2
    Red
  • Max Output Response Time (ms)
    150
  • Button Operation
    Momentary
  • Supply Voltage
    12-30 V dc
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Audible
    No
  • Primary Housing Color
    Black
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
