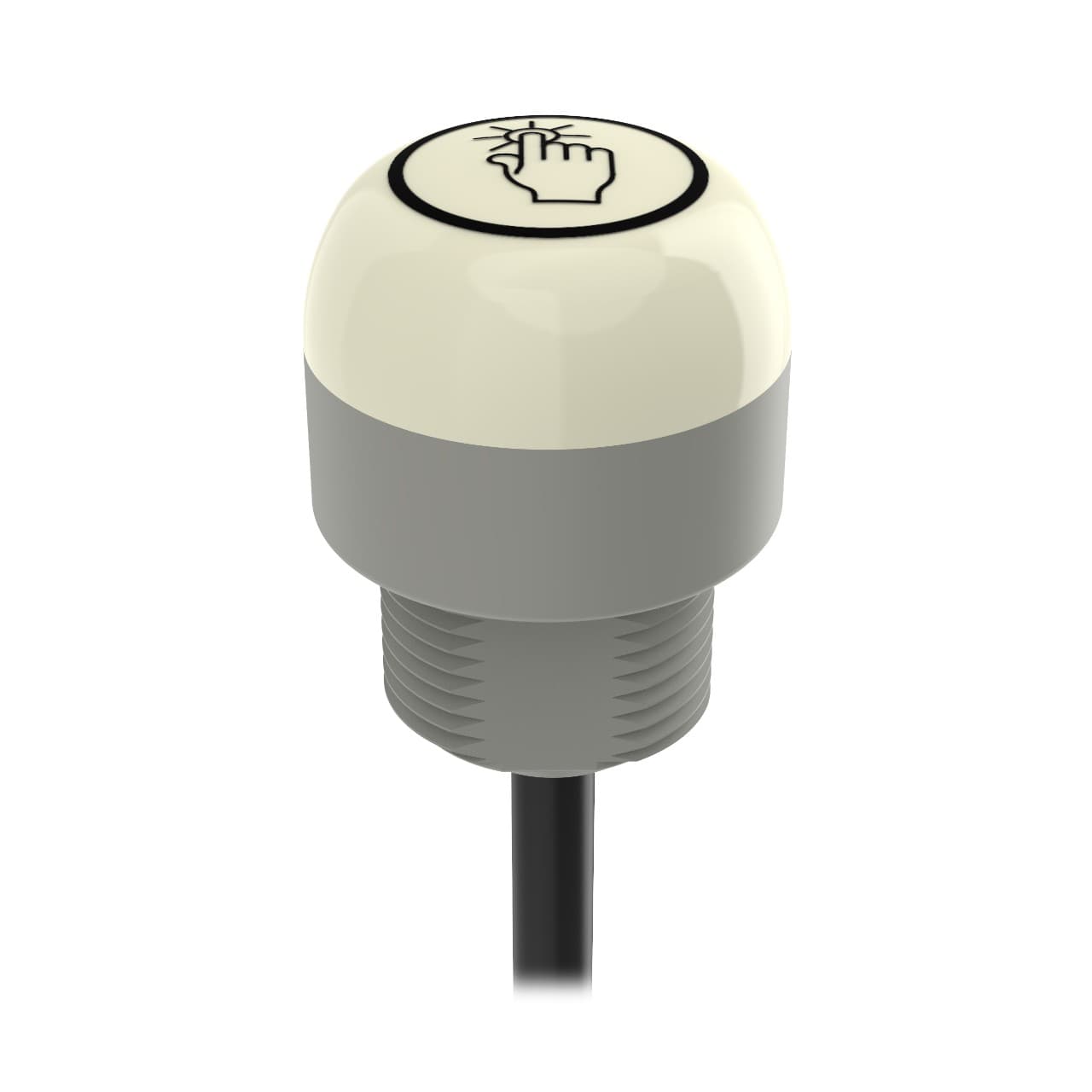

K30ALBT2FXGH Banner Electronic Components

Product Details

• Actuation
  Yes
• Connection
  Cable
• Max Output Response Time (ms)
  150
• Storage Temp (°C)
  -40 to 70
• Mounting Thread
  M22 x 1.5
• Color Option 2
  Green
• Operation
  Normally Open
• Button Operation
  Latching
• Power Source
  DC
• Product Size (mm)
  30
• Max Input Response Time (ms)
  300
• Primary Window Material
  FDA Polycarbonate Diffused
• Primary Housing Material
  FDA Copolyester
• Number of Colors / Segments
  1
• Output Type
  Bipolar (NPN & PNP)
• Physical Dimensions (LxWxH or DxH mm)
  30.0 x 41.0
• Housing Style
  Base Mount - Dome Window
• Max Current Color (mA)
  55
• Input Type
  Bimodal (PNP/NPN)
• Multi-Color Device
  Single Color On
Power
DC
Color 2 - Wavelength/Color Temp/Coordinates
525 nm
Environmental Rating
IP67; IP69
Cable Length (m)
2
Color Technology
Standard LED
Supply Voltage
12-30 V dc
Min Op. Temperature (°C)
-40
Modbus RTU
No
Activation Function
Capacitive Touch
Lumens Color 2
4.4
Max Op. Temperature (°C)
50
IO Link
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Number of Input Pins/Conductors
5
Feature: Washdown Rated
Yes
Feature: Audible
No
Feature: Hazardous Area
No
Wireless
No
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Primary Housing Color
FDA Gray
Feature: Chemical Resistant
No
Pro-Editor Compatible (Discrete)
No
