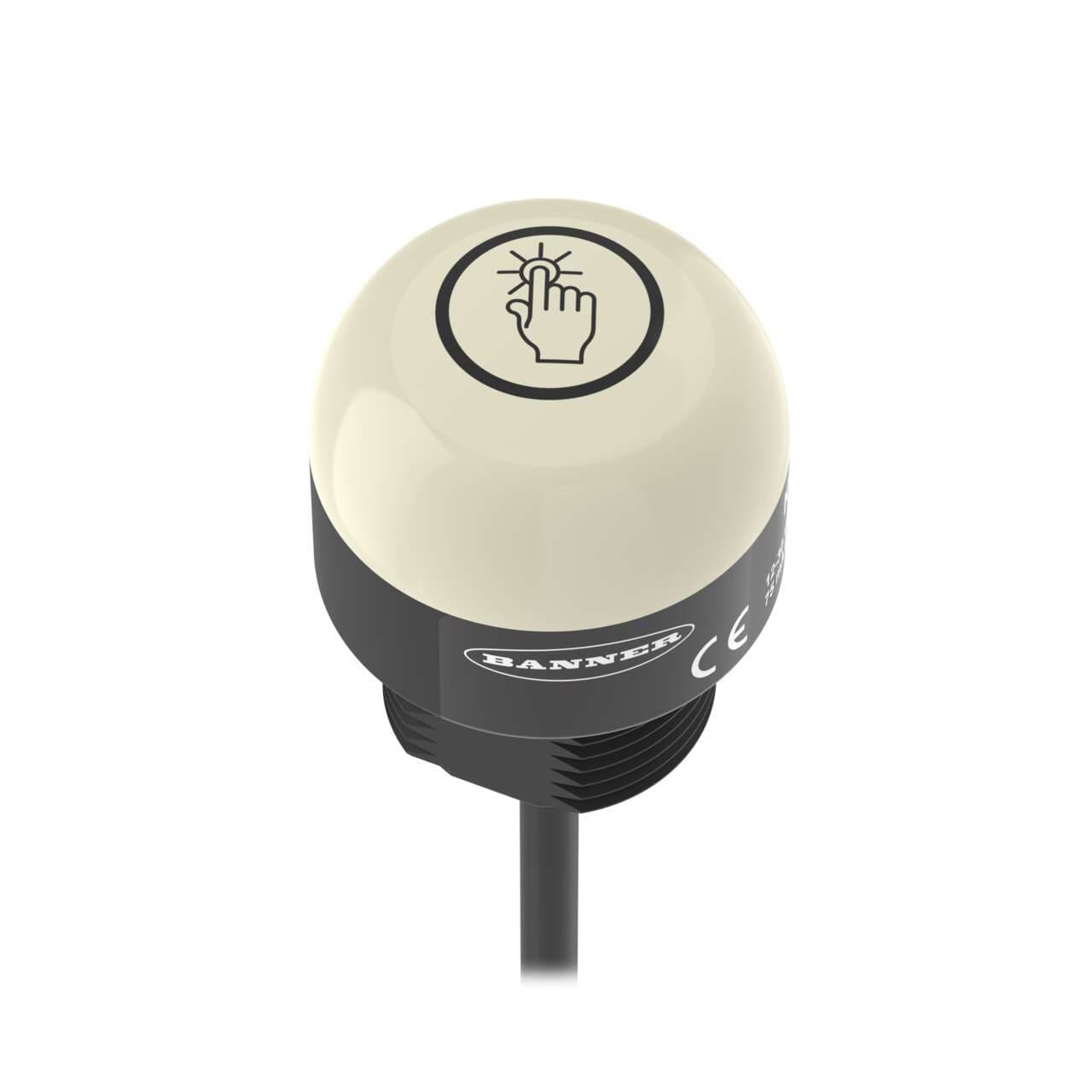

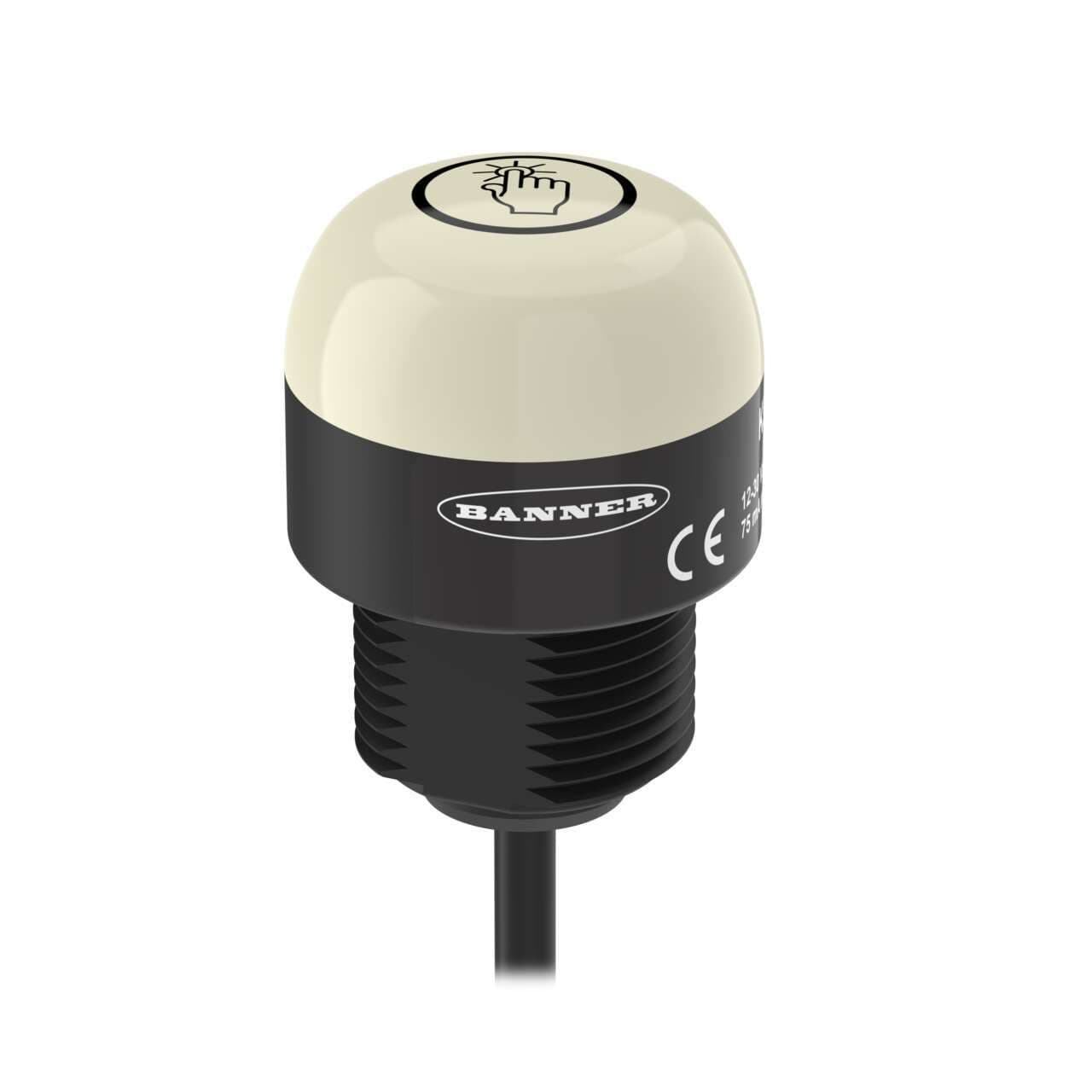

K30APT2GRF2QP Banner Pick-to-Light Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  US
• Number of Colors / Segments
  2
• Color Option 2
  Red
• Supply Voltage
  12-30 V dc
• Environmental Rating
  IP67; IP69
• Feature: Audible
  No
• Mounting Thread
  M22 x 1.5
• Animation Option 1
  Solid On
• Max Current Color (mA)
  55
• Max Output Response Time (ms)
  150
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Connection
  Pigtail QD
• Operation
  Normally Open
• Max Op. Temperature (°C)
  50
• Primary Housing Color
  Black
• Actuation
  Yes
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Output Type
  PNP
• NEMA Type and UL Type Rating
  NEMA and UL 4X, 13
Multi-Color Device
Single Color On
Power Source
DC
Quick Disconnect Type
M12 (Euro)
Input Type
PNP
Storage Temp (°C)
-40 to 70
Modbus RTU
No
Primary Housing Material
Polycarbonate
Color Technology
Standard LED
Lumens Color 2
1.7
Min Op. Temperature (°C)
-40
Housing Style
Base Mount - Dome Window
Color Option 1
Green
Pick-to-Light Function
F2
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Power
DC
Product Size (mm)
30
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Physical Dimensions (LxWxH or DxH mm)
30.0 x 41.0
Feature: Chemical Resistant
No
IO Link
No
Activation Function
Capacitive Touch
Lumens Color 1
4.4
Number of Input Pins/Conductors
4
Max Input Response Time (ms)
300
Wireless
No
Button Operation
Momentary
Primary Window Material
Polycarbonate Diffused
Feature: Hazardous Area
No
Pro-Editor Compatible (Discrete)
No
Feature: Washdown Rated
Yes
