Part#:K50ABT2GGH

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

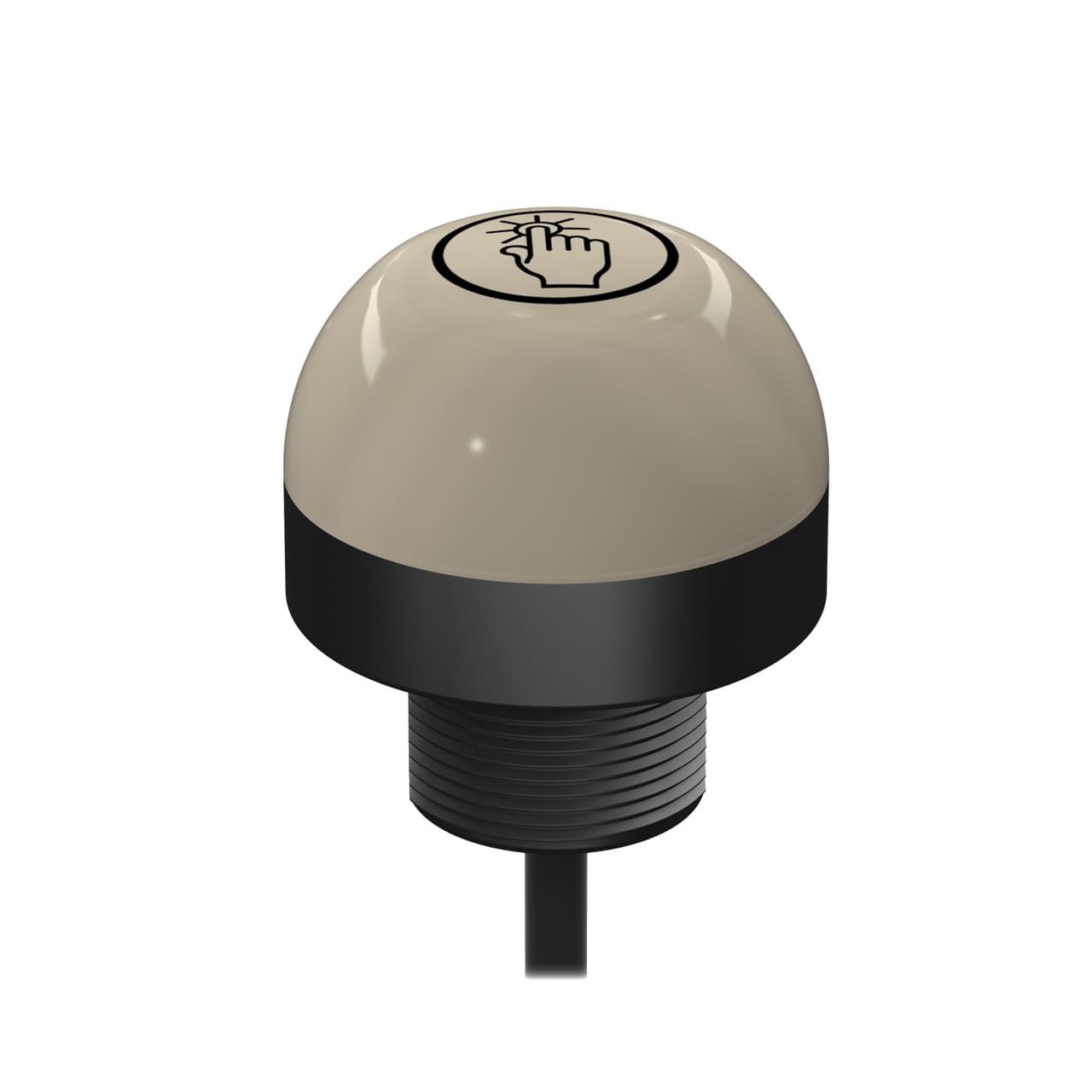

Banner Engineering K50ABT2GGH is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series, featuring Gen.2 1-color G (Green) LED illumination for both its activated and non-activated states. This part comes in a black housing with a dome-shaped window made from diffused polycarbonate (PC), and a base also constructed from polycarbonate (PC). It is designed for surface or base pole mounting with an M30 thread and has a 50mm / 2" dome diameter. The K50ABT2GGH is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal). It operates within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode is a momentary NO (Normally Open) touch output, with a current consumption of 75mA. Additionally, it features 2 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.

Product Details

  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 2
    29.0
  • Max Output Response Time (ms)
    50
  • Feature: Washdown Rated
    Yes
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    75
  • Environmental Rating
    IP67; IP69
  • Feature: Audible
    No
  • Power
    DC
  • Product Size (mm)
    50
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Operation
    Normally Open
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Primary Housing Material
    Polycarbonate
  • Lumens Color 1
    29.0
  • Supply Voltage
    12-30 V dc
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Min Op. Temperature (°C)
    -40
  • Multi-Color Device
    Single Color On
  • Activation Function
    Capacitive Touch
  • Color Option 2
    Green
  • Input Type
    PNP
  • Primary Window Material
    Polycarbonate Diffused
  • Housing Style
    Base Mount - Dome Window
  • Color Option 1
    Green
  • Pick-to-Light Function
    H
  • Max Op. Temperature (°C)
    50
  • Feature: Chemical Resistant
    No
  • Mounting Thread
    M30 x 1.5
  • Animation Option 1
    Solid On
  • Number of Input Pins/Conductors
    5
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • IO Link
    No
  • Number of Colors / Segments
    2
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Output Type
    Bipolar (NPN & PNP)
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Actuation
    Yes
  • Connection
    Cable
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 55.0
  • Button Operation
    Momentary
  • Feature: Quick Disconnect
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
