K50APTGRYF2QP Banner Pick-to-Light Sensors
Part#:K50APTGRYF2QP
Alt. Part#:30383
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 150 mm (6 in) M12 PVC Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Cable Length (m) 2
- Product Size (mm) 50
- Color Technology Standard LED
- Operation Normally Open
- Power DC
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Supply Voltage 12-30 V dc
- Primary Housing Color Black
- Power Source DC
- Color Option 1 Green
- Lumens Color 1 29.0
- Pick-to-Light Function F2
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 8
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Feature: Washdown Rated Yes
- Housing Style Base Mount - Dome Window
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Current Color (mA) 75
- Input Type PNP
- Button Operation Momentary
- Actuation Yes
- Number of Colors / Segments 3
- Lumens Color 3 24.0
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- IO Link No
- Mounting Thread M30 x 1.5
- Color Option 2 Red
- Output Type PNP
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 13.0
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Color Option 3 Yellow
- Max Output Response Time (ms) 50
- Primary Window Material Polycarbonate Diffused
- Storage Temp (°C) -40 to 70
- Wireless No
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APTGRYF2QP on Powermatic Associates is $180.00. Order now.
About the product

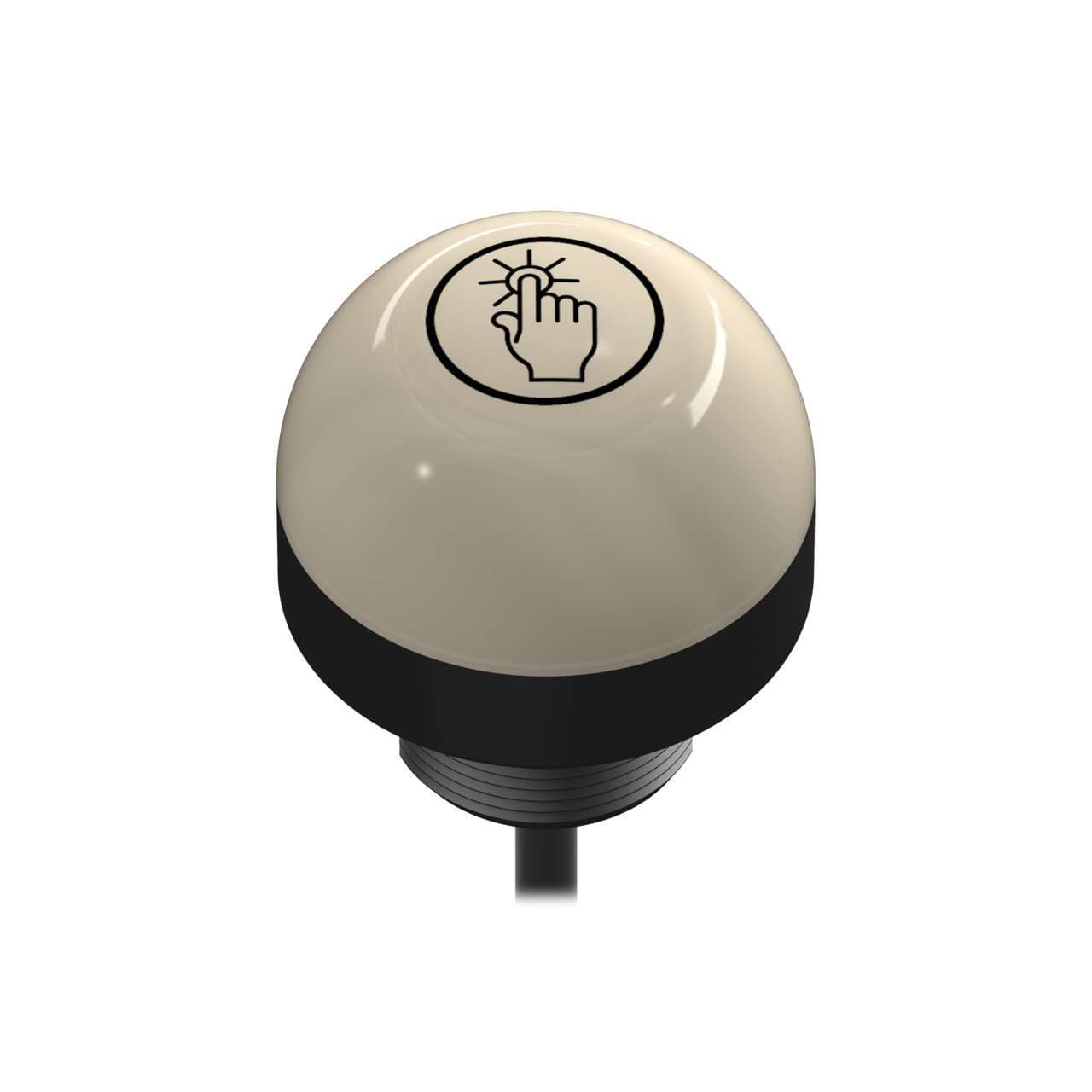

Banner Engineering K50APTGRYF2QP, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination in a black housing. It features a dome window shape with both the window and base made of polycarbonate material. This part is equipped with an 8-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M30 thread and has a 50mm / 2" dome diameter. The K50APTGRYF2QP is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. Its operating mode includes a momentary job light (G/R/Y; Green or Red or Yellow) that is ON when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It also features 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.
K50APTGRYF2QP Related Documents
Similar products from: Banner Pick-to-Light Sensors
Manufacturer warranty
K50APTGRYF2QP Banner
$180.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$180.00
$180.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare K50APTGRYF2QP with other Pick-to-Light Sensors products
Weight
Country Of Origin
Cable Length (m)
Product Size (mm)
Color Technology
Operation
Power
Quick Disconnect Type
Color 2 - Wavelength/Colo...
Supply Voltage
Selected product
K50APTGRYF2QP
Banner
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 I...
Weight158.7572 g
Country Of OriginMX
Cable Length (m)2
Product Size (mm)50
Color TechnologyStandard LED
OperationNormally Open
PowerDC
Quick Disconnect TypeM12 (Euro)
Color 2 - Wavelength/Color Temp/Coordinates625 nm
Supply Voltage12-30 V dc
K50LGRYPQP
Banner
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate;...
Weight154.22128 g
Country Of OriginCN
Cable Length (m)0.15
Product Size (mm)50
Color Technology-
Operation-
PowerDC
Quick Disconnect Type-
Color 2 - Wavelength/Color Temp/Coordinates-
Supply Voltage-
WLS15HXDW0360LS24QP
Banner

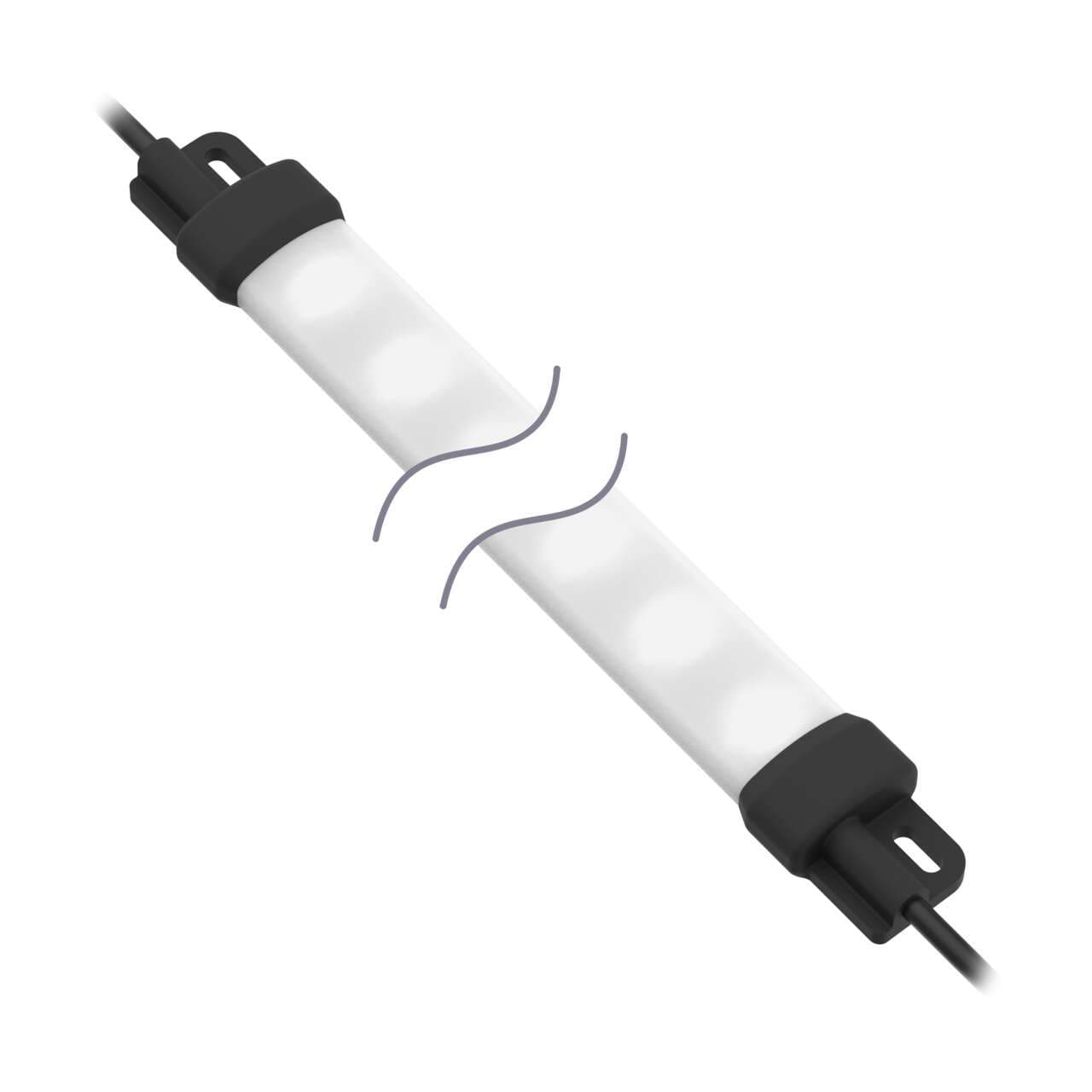

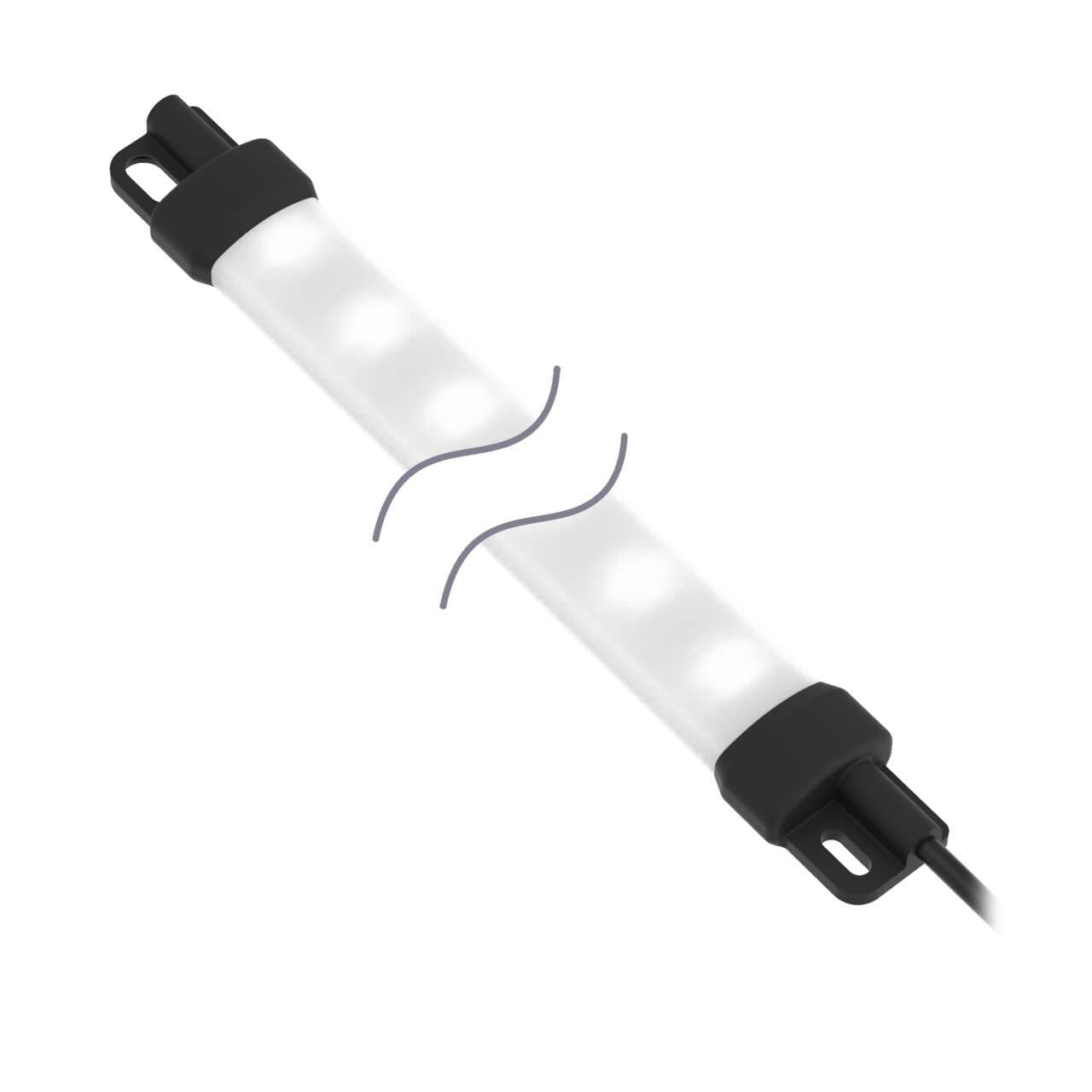

WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm; Voltage: 24 V dc; Environmen...
