K50APTGYRF2Q Banner Pick-to-Light Sensors
Part#:K50APTGYRF2Q
Alt. Part#:88478
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Input-Color Touch Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Yellow Red; 8-pin M12 Integral QD
Product Details
- Weight 181.4368 g
- Country Of Origin MX
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 591 nm
- Max Output Response Time (ms) 50
- Activation Function Capacitive Touch
- Connection Integral QD
- Operation Normally Open
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Max Current Color (mA) 75
- Output Type PNP
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 8
- Max Op. Temperature (°C) 50
- Actuation Yes
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Lumens Color 1 29.0
- Color Option 3 Red
- Pick-to-Light Function F2
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Environmental Rating IP67; IP69
- Feature: Hazardous Area No
- Feature: Audible No
- Power DC
- Color Option 1 Green
- Lumens Color 2 24.0
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Cable Length (m) 2
- Number of Colors / Segments 3
- Color Option 2 Yellow
- Input Type PNP
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Button Operation Momentary
- Supply Voltage 12-30 V dc
- Modbus RTU No
- Storage Temp (°C) -40 to 70
- IO Link No
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Wireless No
- Feature: Quick Disconnect Yes
- Primary Window Material Polycarbonate Diffused
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50APTGYRF2Q on Powermatic Associates is $188.00. Order now.
About the product

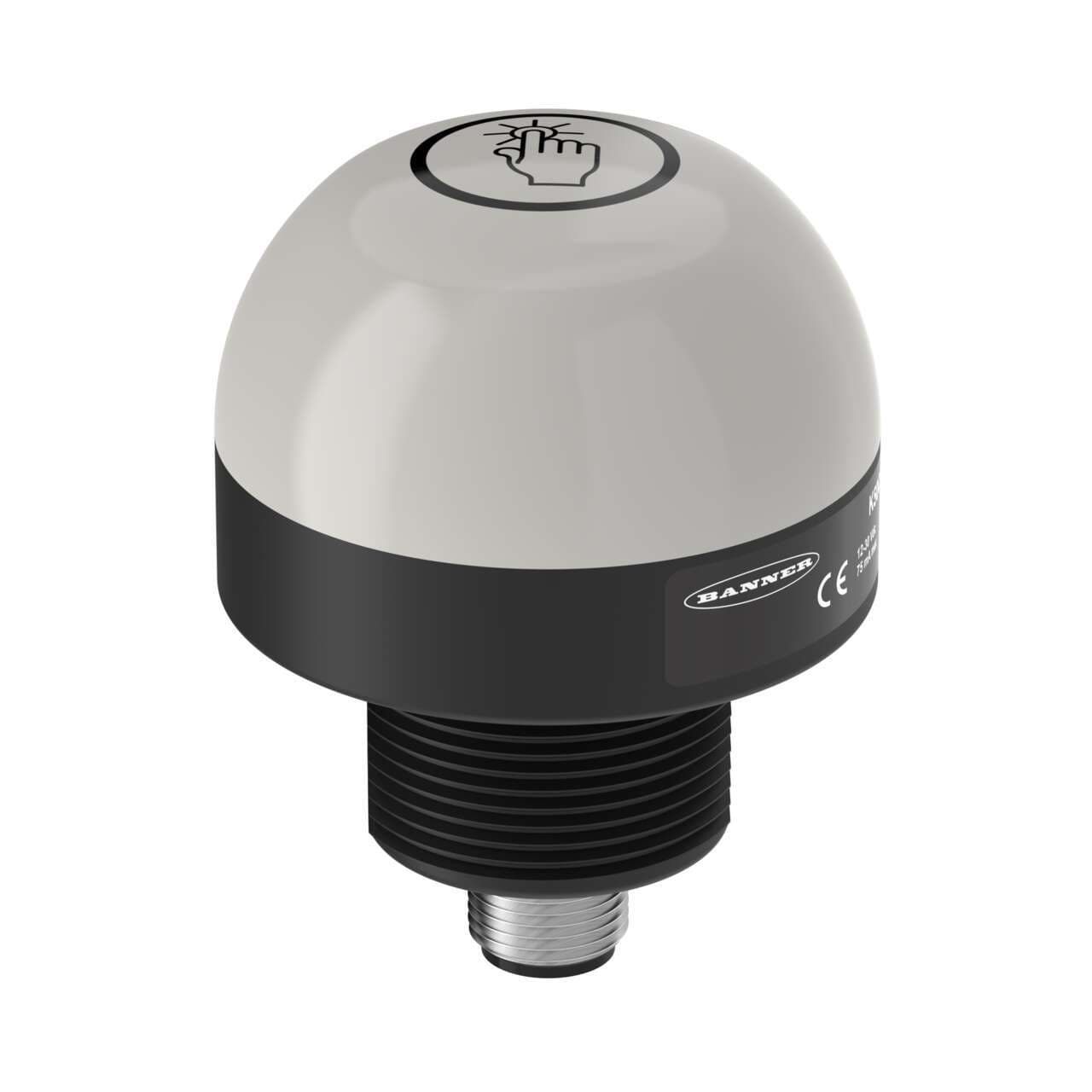

Banner Engineering K50APTGYRF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 8-wire cable that terminates with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The K50APTGYRF2Q offers versatile mounting options, including surface or base pole with an M30 thread, and has a 50mm / 2" dome diameter. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode is momentary, with a job light (G/Y/R; Green or Yellow or Red) that turns on when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 75mA, includes 3 x digital inputs (12-30Vdc; PNP) for JOB color control, and 1 x digital output (12-30Vdc; PNP) for touch.
