K50ALBTXYH on Powermatic Associates
Banner

Part#:K50ALBTXYH

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

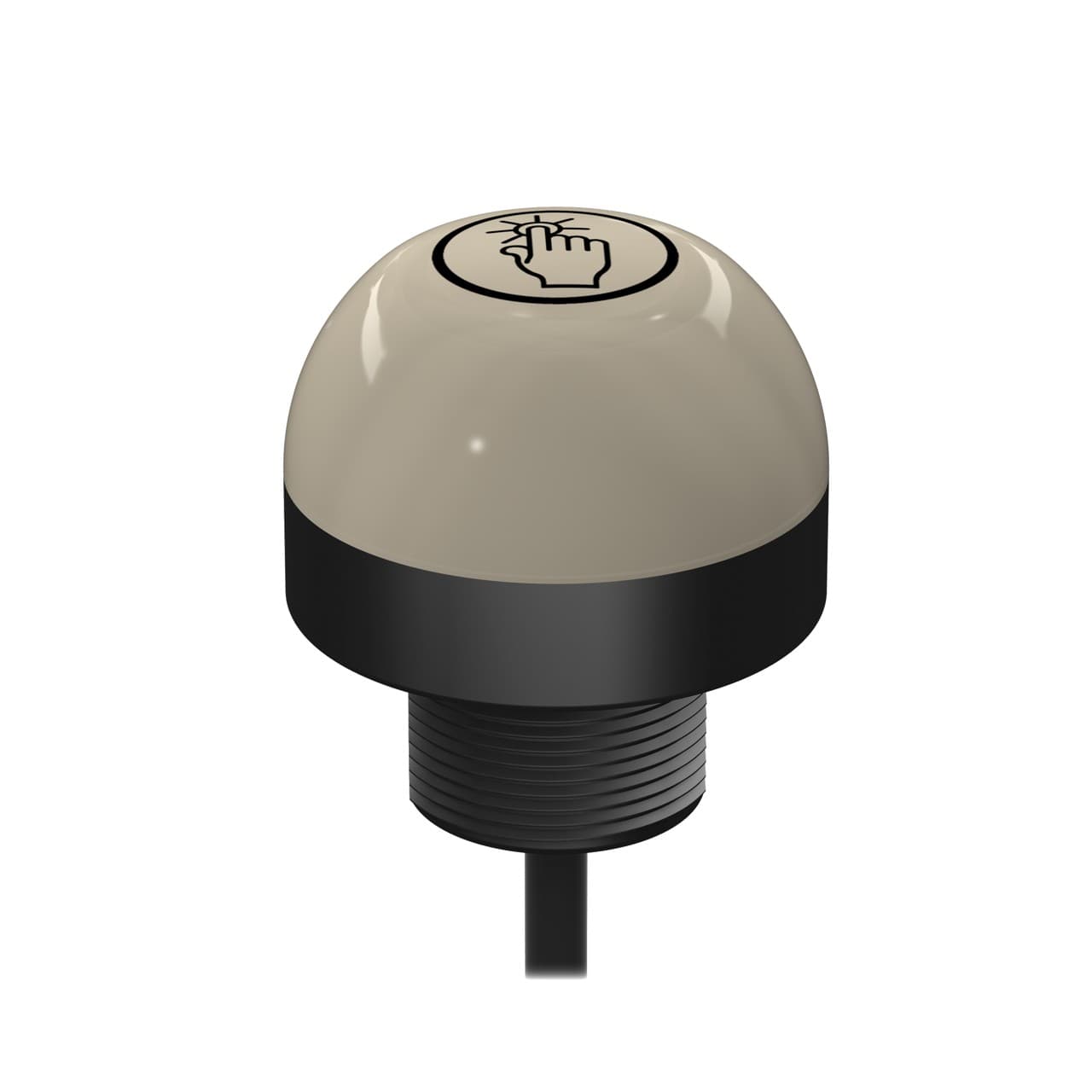

K50 Series EZ-LIGHT: 1-Color Touch Sensor; Latching Output, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Output: Bipolar (NO); Colors: None - Not Activated, Yellow - Activated, 2 m (6.5 ft) PVC Cable

Product Details

  • Power Source
    DC
  • Connection
    Cable
  • Operation
    Normally Open
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Actuation
    Yes
  • Max Output Response Time (ms)
    150
  • Feature: Washdown Rated
    Yes
  • Mounting Thread
    M30 x 1.5
  • Number of Input Pins/Conductors
    5
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Input Type
    PNP
  • Button Operation
    Latching
  • Job Light
    Yellow
  • Power
    DC
  • Animation Option 1
    Solid On
  • Max Current Color (mA)
    75
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Quick Disconnect
    No
  • Housing Style
    Base Mount - Dome Window
  • Color Option 1
    Yellow
  • Output Type
    Bipolar (NPN & PNP)
  • Primary Window Material
    Polycarbonate Diffused
  • Modbus RTU
    No
  • Activation Function
    Capacitive Touch
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 55.0
  • Feature: Hazardous Area
    No
  • Environmental Rating
    IP67; IP69
  • IO Link
    No
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    50
  • Supply Voltage
    12-30 V dc
  • Storage Temp (°C)
    -40 to 70
  • Feature: Chemical Resistant
    No
  • Number of Colors / Segments
    1
  • Pick-to-Light Function
    H
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
