K50ALBTXWHQP Banner Electronic Components

K50ALBTXWHQP on Powermatic Associates
Banner

Part#:K50ALBTXWHQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

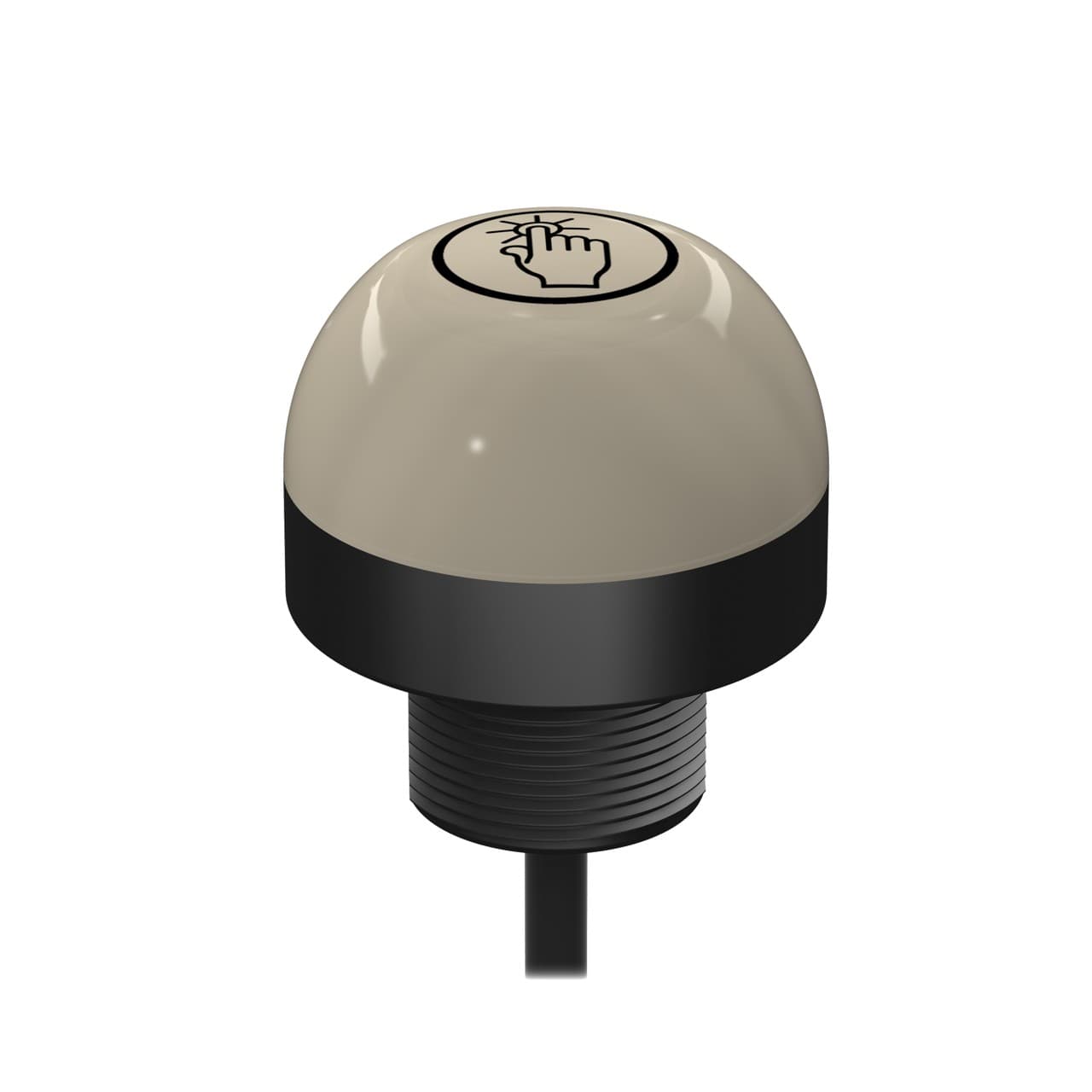

Banner Engineering K50ALBTXWHQP is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series. This automation part features a 1-color illumination design, displaying no color when not activated and white when activated, encased in a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a polycarbonate (PC) base. It is pre-wired with a 6-inch (15cm) pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector. The K50ALBTXWHQP operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on a surface or base pole with an M30 thread. The dome has a diameter of 50mm (2 inches), and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP67 and IP69K, ensuring durability in various environmental conditions. The operating mode is a latched normally open (NO) touch output, with a current consumption of 75mA. It also features 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.

Product Details

  • Housing Style
    Base Mount - Dome Window
  • Connection
    Pigtail QD
  • Input Type
    PNP
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Environmental Rating
    IP67; IP69
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Material
    Polycarbonate
  • Pick-to-Light Function
    H
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Mounting Thread
    M30 x 1.5
  • Quick Disconnect Type
    M12 (Euro)
  • Output Type
    Bipolar (NPN & PNP)
  • Storage Temp (°C)
    -40 to 70
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • I/O Block Compatible
    Yes
  • Modbus RTU
    No
  • Power
    DC
  • Number of Colors / Segments
    1
  • Supply Voltage
    12-30 V dc
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Feature: Quick Disconnect
    Yes
  • Actuation
    Yes
  • Max Current Color (mA)
    75
  • Max Output Response Time (ms)
    150
  • Feature: Washdown Rated
    Yes
  • Cable Length (m)
    2
  • Color Option 1
    White
  • Operation
    Normally Open
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 55.0
  • Button Operation
    Latching
  • Activation Function
    Capacitive Touch
  • Product Size (mm)
    50
  • Number of Input Pins/Conductors
    5
  • Feature: Chemical Resistant
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Primary Housing Color
    Black
  • Job Light
    White

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
