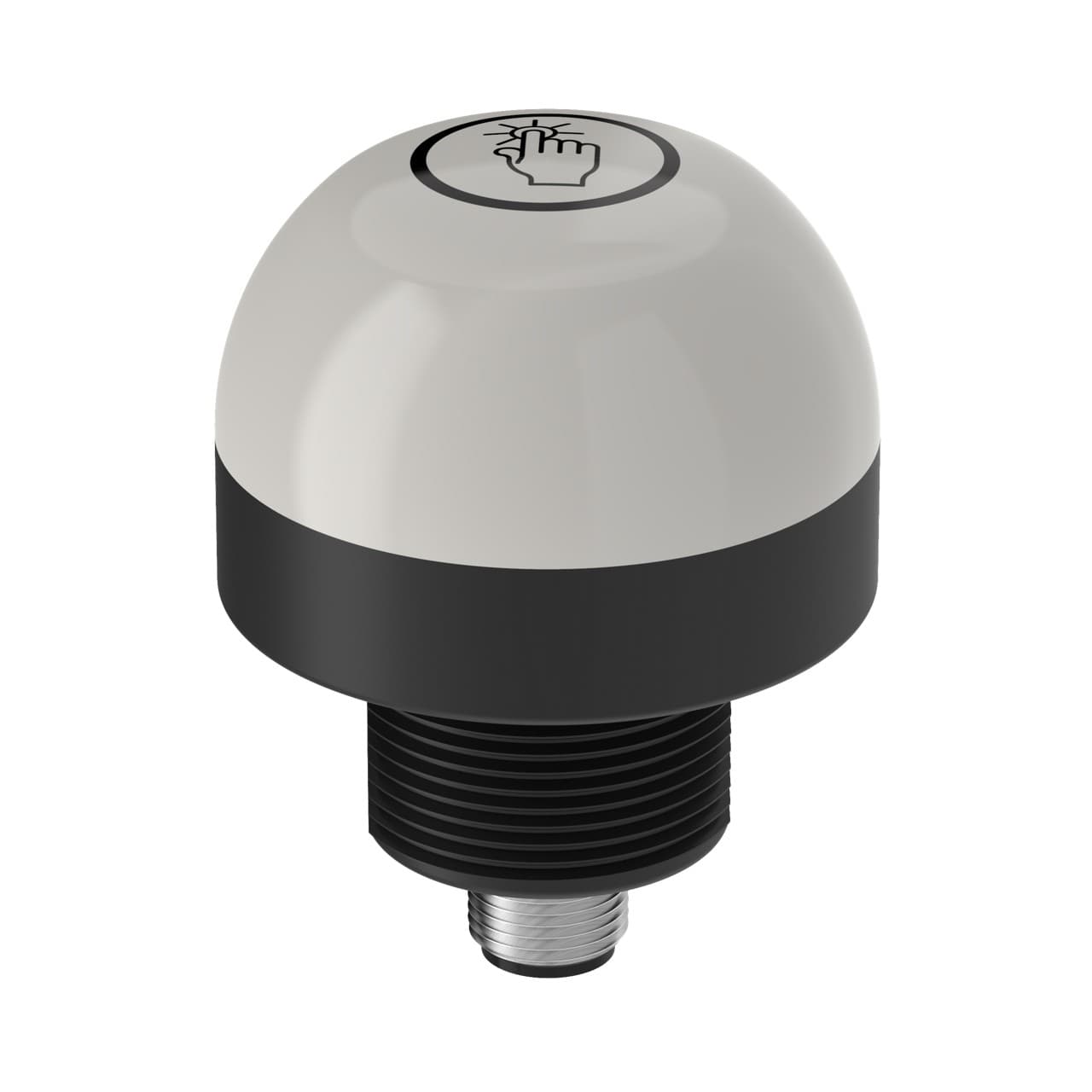

K50ALBTXYHQ Banner Electronic Components

Product Details

• Activation Function
  Capacitive Touch
• Quick Disconnect Type
  M12 (Euro)
• I/O Block Compatible
  Yes
• Storage Temp (°C)
  -40 to 70
• Mounting Thread
  M30 x 1.5
• Pick-to-Light Function
  H
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 66.0
• Feature: Hazardous Area
  No
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Material
  Polycarbonate
• Connection
  Integral QD
• Environmental Rating
  IP67; IP69
• Feature: Audible
  No
• Actuation
  Yes
• Max Current Color (mA)
  75
• Output Type
  Bipolar (NPN & PNP)
• Feature: Washdown Rated
  Yes
• Power Source
  DC
• Color Option 1
  Yellow
• Input Type
  PNP
Max Op. Temperature (°C)
50
Modbus RTU
No
Power
DC
Color Technology
Standard LED
Max Output Response Time (ms)
150
Button Operation
Latching
Housing Style
Base Mount - Dome Window
Number of Colors / Segments
1
Operation
Normally Open
Min Op. Temperature (°C)
-40
Feature: Quick Disconnect
Yes
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Animation Option 1
Solid On
Supply Voltage
12-30 V dc
Cable Length (m)
2
Product Size (mm)
50
Number of Input Pins/Conductors
5
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Chemical Resistant
No
Wireless
No
Primary Housing Color
Black
IO Link
No
Pro-Editor Compatible (Discrete)
No
Job Light
Yellow
