K50ALBTXBHQ Banner Pick-to-Light Sensors

K50ALBTXBHQ on Powermatic Associates
Banner
  • K50ALBTXBHQ
  • K50ALBTXBHQ

Part#:K50ALBTXBHQ

Alt. Part#:88406

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 1-Color Touch Sensor; Latching Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: None - Not Activated, Blue - Activated; 5-pin M12 Integral QD

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    5
  • Min Op. Temperature (°C)
    -40
  • Mounting Thread
    M30 x 1.5
  • Number of Colors / Segments
    1
  • Output Type
    Bipolar (NPN & PNP)
  • Primary Housing Color
    Black
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    75
  • Input Type
    PNP
  • Button Operation
    Latching
  • Housing Style
    Base Mount - Dome Window
  • Connection
    Integral QD
  • Max Output Response Time (ms)
    150
  • Feature: Washdown Rated
    Yes
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • I/O Block Compatible
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Actuation
    Yes
  • Animation Option 1
    Solid On
  • Supply Voltage
    12-30 V dc
  • Max Op. Temperature (°C)
    50
  • IO Link
    No
  • Activation Function
    Capacitive Touch
  • Color Technology
    Standard LED
  • Environmental Rating
    IP67; IP69
  • Primary Window Material
    Polycarbonate Diffused
  • Cable Length (m)
    2
  • Pick-to-Light Function
    H
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Modbus RTU
    No
  • Power Source
    DC
  • Color Option 1
    Blue
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 66.0
  • Feature: Audible
    No
  • Product Size (mm)
    50
  • Operation
    Normally Open
  • Storage Temp (°C)
    -40 to 70
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Quick Disconnect
    Yes
  • Wireless
    No
  • Job Light
    Blue

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50ALBTXBHQ on Powermatic Associates is $166.00. Order now.


About the product

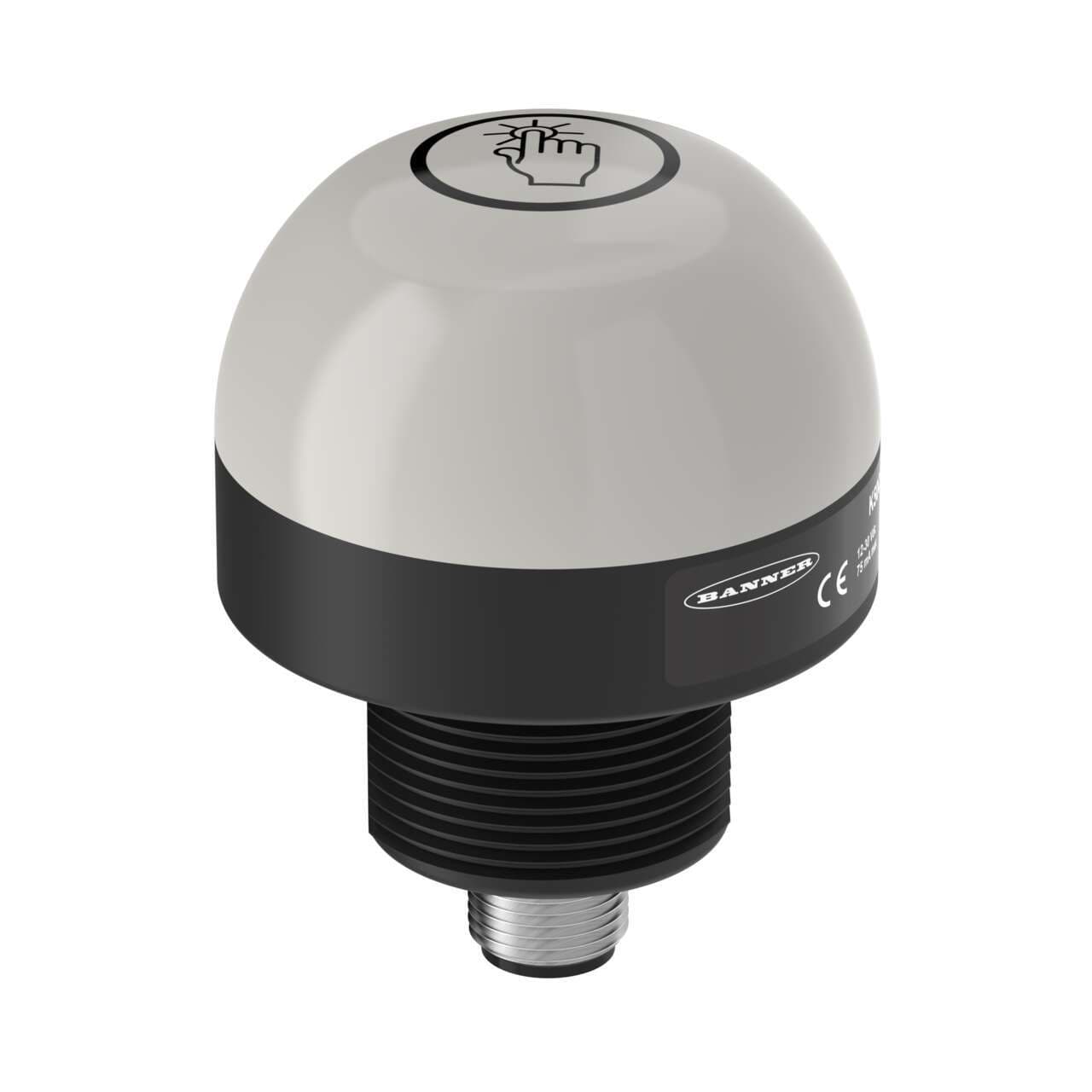

Banner Engineering K50ALBTXBHQ is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series. This automation part features a 1-color LED illumination that displays no color when not activated and turns blue (B) when activated. It is housed in a black casing with a dome-shaped window made from diffused polycarbonate (PC), and the base is also constructed from polycarbonate (PC). It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. The K50ALBTXBHQ operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It offers versatile mounting options, including surface or base pole mounting with an M30 thread, and has a 50mm (2 inches) dome diameter. Designed to operate in ambient air temperatures ranging from -40°C to +50°C, it boasts a high degree of protection with IP67 and IP69K ratings. The operating mode is a latched normally open (NO) touch output. Additionally, it features 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
