K50LRXALSXN Banner Pick-to-Light Sensors
Part#:K50LRXALSXN
Alt. Part#:93936
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: NPN; Color: Red; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 229.517552 g
- Country Of Origin MX
- Indication Yes
- Connection Cable
- Min Audible Intensity (db at 1m) 70
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- IO Link No
- Housing Style Base Mount - Dome Window
- Input Type NPN
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Mounting Thread M30 x 1.5
- Supply Voltage 12-30 V dc
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Power Source DC
- Animation Option 1 Solid On
- Environmental Rating IP67
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Audible Operating Frequency (kHz) 2.9
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Option 1 Red
- Max Audible Intensity (db at 1m) 94
- Min Op. Temperature (°C) -20
- Wireless No
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Max Current Color (mA) 35
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 62.0
- Secondary Material Thermoplastic
- Cable Length (m) 2
- Product Size (mm) 50
- Audible Alarm Type Continuous
- Max Current - Audible Alarm (mA) 35
- Feature: Audible Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRXALSXN on Powermatic Associates is $155.00. Order now.
About the product

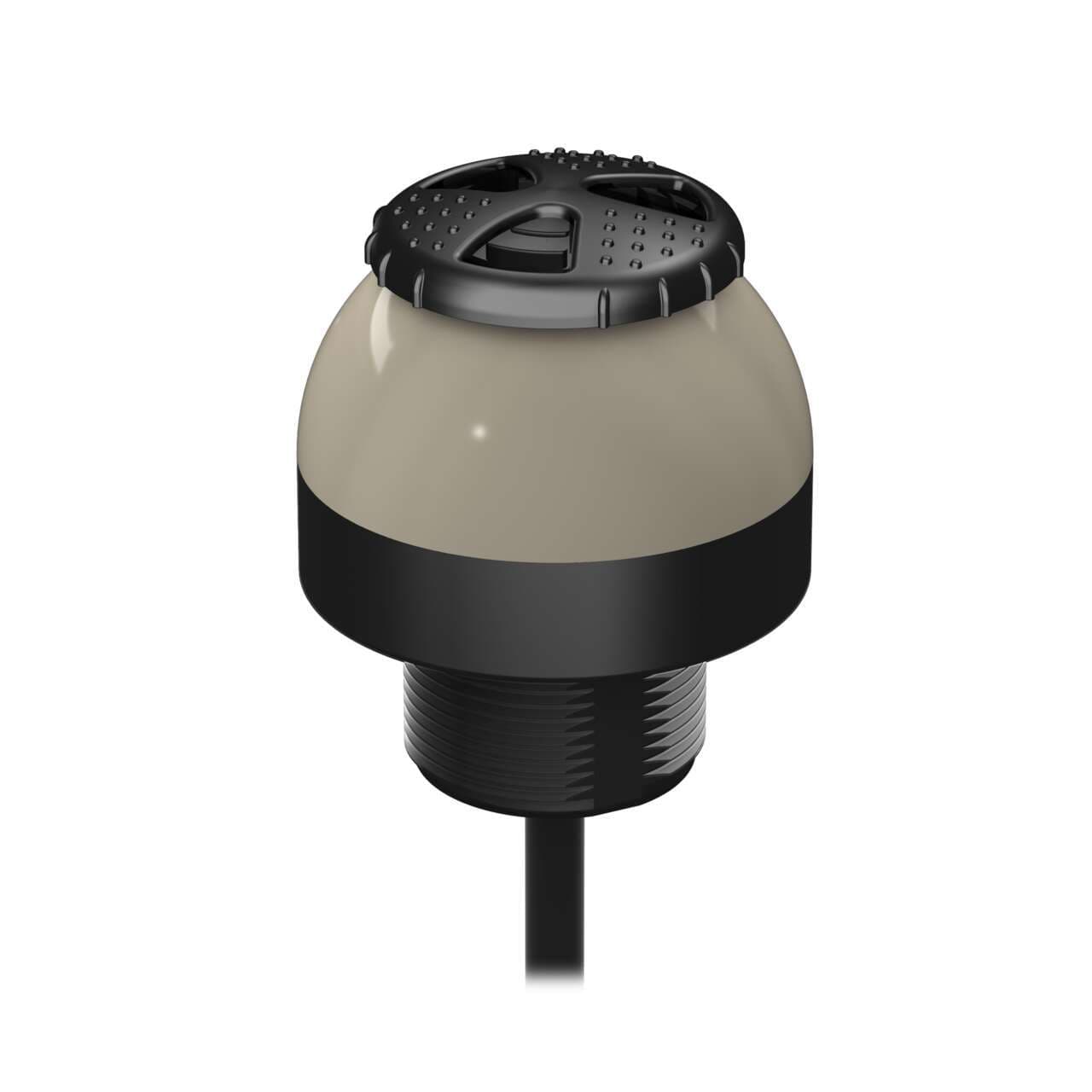

Banner Engineering K50LRXALSXN is a pilot light from the EZ-LIGHT series featuring an adjustable audible sealed LED indicator with a staccato loud sound and 1-color red LED illumination. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail terminated with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and can be mounted on a surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter is 50mm / 2", and it is designed to operate in ambient air temperatures ranging from -20°C to +50°C. It offers a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, with a current consumption of 35mA. This part includes 1 x digital input (12-30Vdc; PNP) for color control and 1 x digital input (12-30Vdc; PNP) for alarm input.
