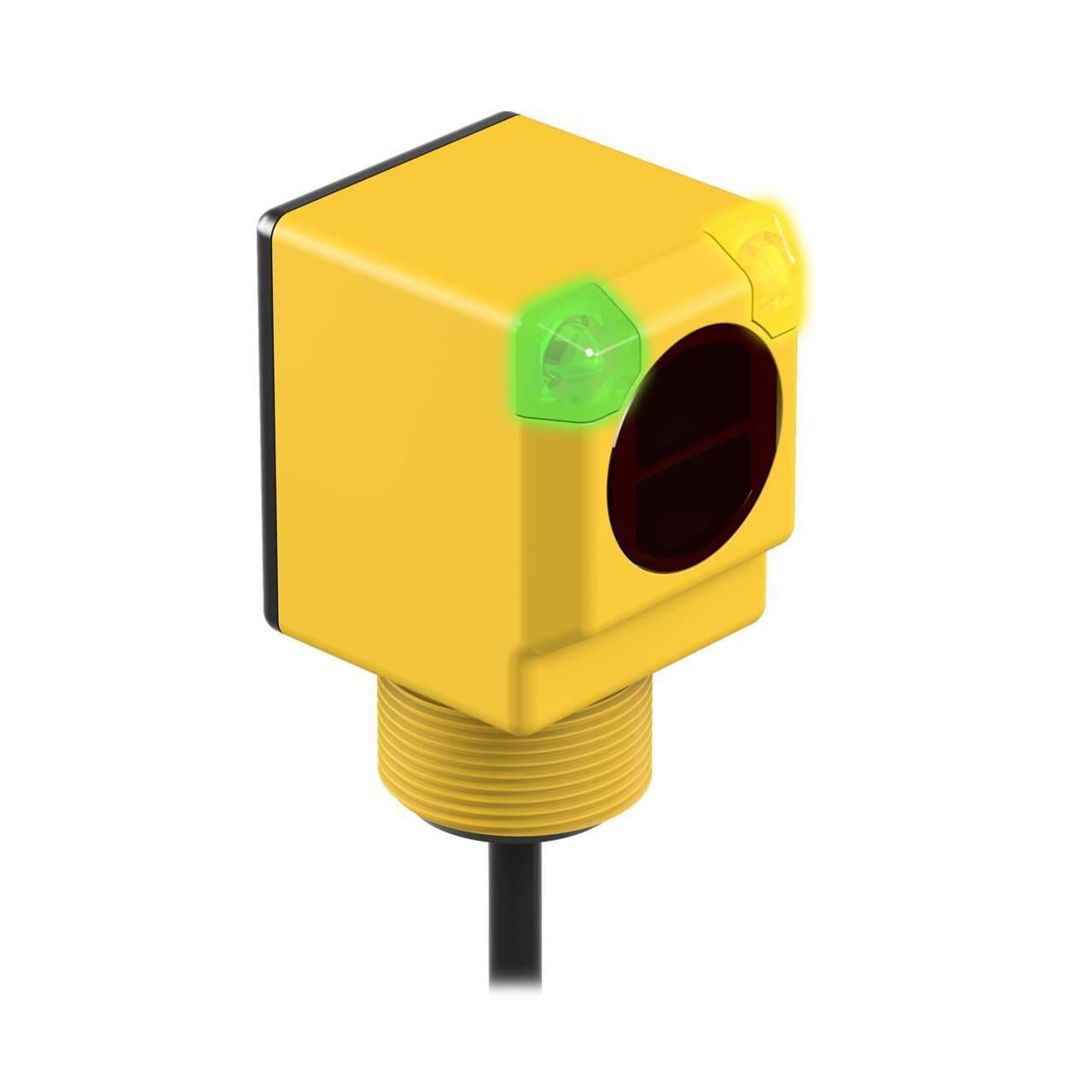

Q40SN6FF600 Banner Proximity Sensors

Name: Q40SN6FF600
Brand: Banner
Price: 155 USD
Availability: BackOrder

Part#:Q40SN6FF600

Alt. Part#:32369

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM Q40 Series: Fixed Field; Range: 600 mm; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable

Product Details

Weight
249.929192 g
Country Of Origin
US
Wavelength
880 nm
Product series / family name
EZ-BEAM series
Design
background suppression system
Thread size
M30
Material
thermoplastic housing
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Sensing distance
600mm
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Response time
3ms / 0.003 s
Ambient air temperature for operation
-40...+70 °C
Main function
Sensor (Photo-electric)
Functions
Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
Shape
Rectangular
Digital outputs
1 x digital output (NPN transistor)
Order code / Manufacturer SKU
32369
Sub-range name
Q40 DC series
Light Color
Infrared (IR)

Degree of protection

IP67 NEMA 6P

Compliant with standard(s)

cULus cCSAus CE

Operating mode

Light-ON Dark-ON

IO Link

Power

Input/Output

Discrete

Sensing Mode (General)

Proximity

Outputs

NPN

Sensing Beam

Infrared LED

Min Op. Temp. (°C)

-40

Number of Pins

Max Op. Temp. (°C)

Repeatability (µs)

750

Barrel Diameter (mm)

Feature: Encapsulated

Yes

Feature: Hazardous Area

Feature: Chemical Resistant

Cable Length (m)

Output response time (ms)

Power Supply/Supply Voltage

10-30 V dc

Feature: Audible

IP Rating

IP67

Opposed Mode Emitter/Receiver

N/A

Feature: Health/ Marginal Signal Output

Yes

Sensing Mode (Detailed)

Background Suppression (Fixed)

Max Sensing Distance (mm)

600

Connection

Cable

Special Feature: Water Detection

Operation

Light/Dark Operate

Delay at Power-up (ms)

100

Max Op. Relative Humidity [%]

90% @ 50°C

Lens Material

Polycarbonate

Primary Housing Material

Thermoplastic

Special Feature: Intrinsically Safe

Housing Style

Rectangular

Quick Disconnect Type

No QD

NEMA Rating

NEMA 6P

Special Feature: Remote Teach

Adjustments

N/A

Indicator

LEDs

Feature: Timing (Hold/Delay)

Feature: Ecolab Certified

Yes

DeviceNet

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q40SN6FF600 on Powermatic Associates is $155.00. Order now.

About the product

Banner Engineering Q40SN6FF600 is a fixed-field photo-electric sensor designed for versatile applications, featuring a M30 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -40 to +70°C and incorporates a background suppression system to enhance its detection capabilities. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating straightforward integration into various systems. Part of the Q40 DC series, it offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in challenging environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and is housed in a thermoplastic casing. It has a sensing distance of 600mm and utilizes infrared light with a wavelength of 880 nm for detection. The operating modes include Light-ON and Dark-ON, supported by a digital output (NPN transistor; complementary NO/NC) and a swift response time of 3ms / 0.003 s.
