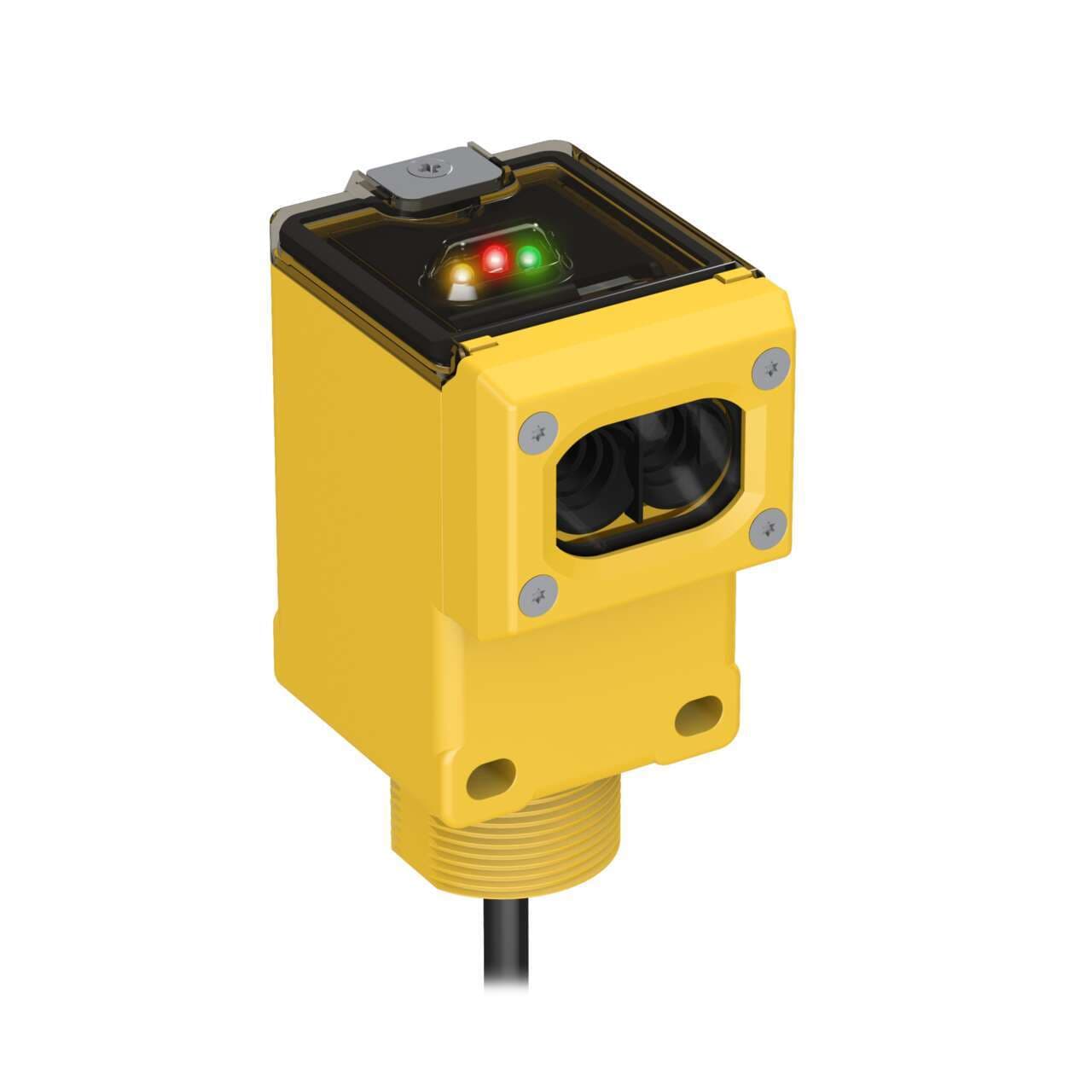

Q45AD9D Banner Proximity Sensors
Part#:Q45AD9D
Alt. Part#:37617
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 NAMUR: Diffuse; Range: 300 mm; Input: 5-15 V dc; Output: NAMUR; 2 m (6.5 ft) Cable
Product Details
- Weight 308.44256 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Sensing distance 300mm
- Wavelength 880 nm
- Product series / family name Q series
- Design diffuse mode
- Thread size M30
- Degree of protection IP67 NEMA 6P
- Sub-range name Q45AD9
- Shape Rectangular
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 37617
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (NAMUR)
- Response time 5ms / 0.005 s
- Primary brand Banner Engineering
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Compliant with standard(s) ATEX FM cCSAus CE
- Power DC
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Encapsulated No
- Sensing Beam Infrared LED
- Outputs Constant Current
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area Yes
- Sensing Mode (General) Proximity
- Housing Style Rectangular
- Primary Housing Material Thermoplastic
- Cable Length (m) 2
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type No QD
- Max Sensing Distance (mm) 300
- Delay at Power-up (ms) N/A
- DeviceNet No
- Opposed Mode Emitter/Receiver N/A
- Lens Material Acrylic
- IO Link No
- Operation Light/Dark Operate
- Number of Pins 2
- Indicator LEDs
- Power Supply/Supply Voltage 5-15 V dc
- Output response time (ms) 5
- Feature: Timing (Hold/Delay) No
- Connection Cable
- Special Feature: Intrinsically Safe Yes
- Repeatability (µs) N/A
- Barrel Diameter (mm) 30
- Special Feature: Water Detection No
- Feature: Chemical Resistant No
- NEMA Rating NEMA 6P
- Adjustments Potentiometer
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45AD9D on Powermatic Associates is $174.00. Order now.
About the product
Banner Engineering Q45AD9D is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. This sensor features a diffuse mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. It is designed for mounting via an M30 threaded mount and operates within an ambient air temperature range of -40 to +70°C. The Q45AD9D, part of the Q45AD9 series, offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. It operates on a supply voltage range of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens, capable of sensing distances up to 300mm. It utilizes infrared (IR) light with a wavelength of 880 nm and can operate in both Light-ON and Dark-ON modes. The sensor provides a single digital output (NAMUR) and boasts a quick response time of 5ms / 0.005 s.
