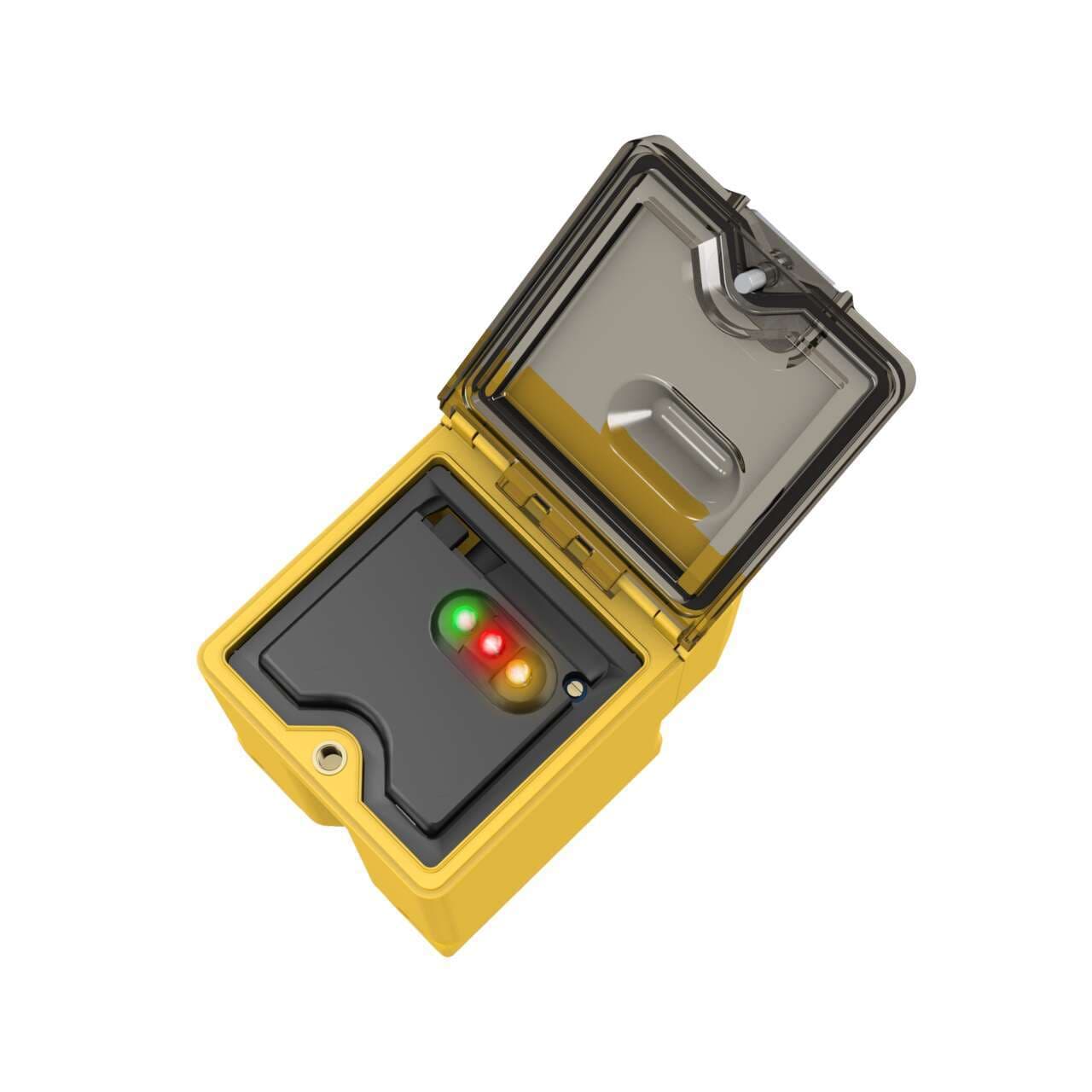

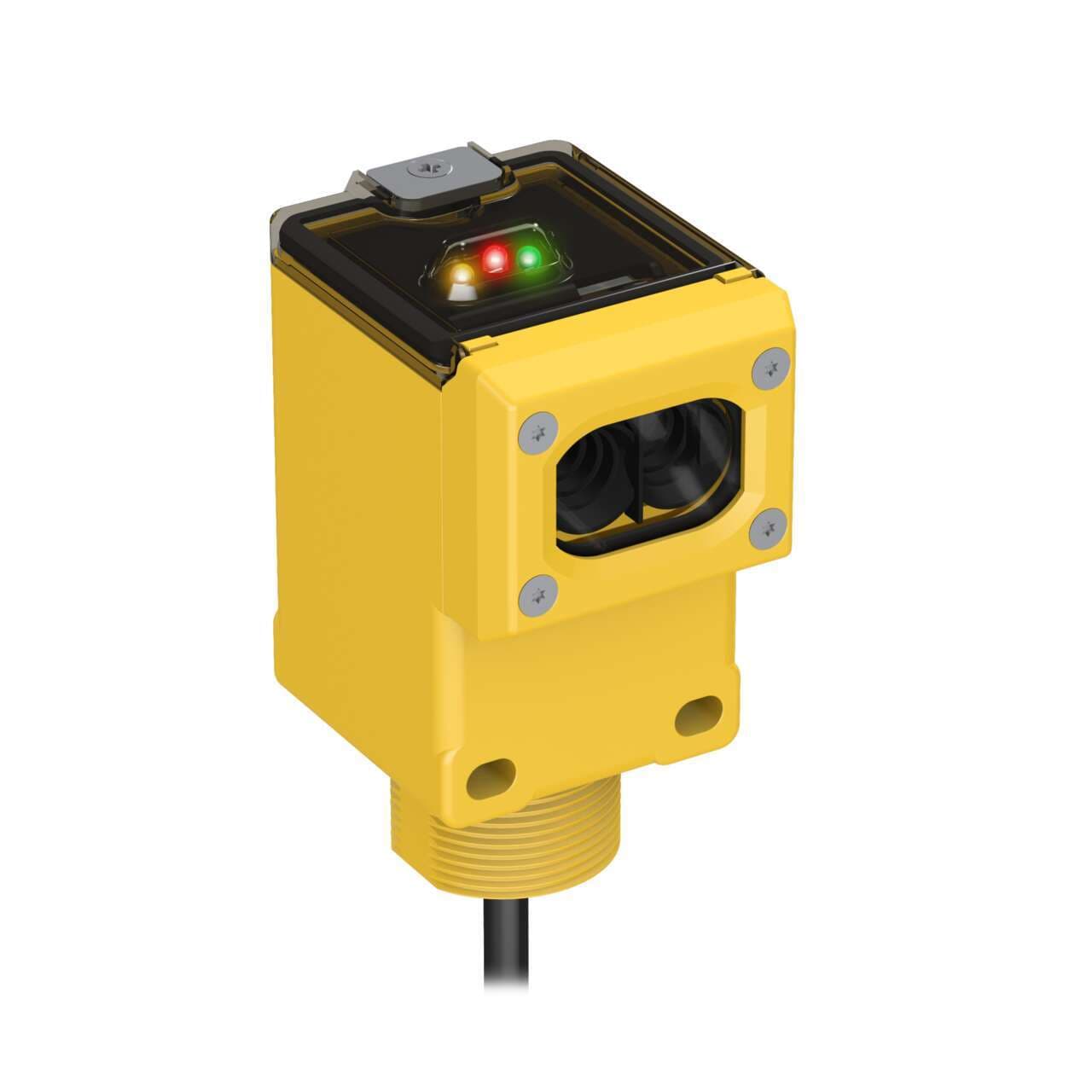

Q45AD9D W/30 Banner Proximity Sensors

Q45AD9D W/30 on Powermatic Associates
Banner
  • Q45AD9D W/30
  • Q45AD9D W/30

Part#:Q45AD9D W/30

Alt. Part#:40817

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 NAMUR: Diffuse; Range: 300 mm; Input: 5-15 V dc; Output: NAMUR; 9 m (30 ft) Cable

Product Details

  • Weight
    734.81904 g
  • Country Of Origin
    US
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    5
  • Barrel Diameter (mm)
    30
  • Housing Style
    Rectangular
  • Sensing Beam
    Infrared LED
  • Outputs
    Constant Current
  • Quick Disconnect Type
    No QD
  • Max Sensing Distance (mm)
    300
  • Special Feature: Remote Teach
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Power
    DC
  • Input/Output
    Discrete
  • Power Supply/Supply Voltage
    5-15 V dc
  • Special Feature: Intrinsically Safe
    Yes
  • Cable Length (m)
    9
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Operation
    Light/Dark Operate
  • IP Rating
    IP67
  • Feature: Audible
    No
  • Sensing Mode (General)
    Proximity
  • Connection
    Cable
  • Delay at Power-up (ms)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Feature: Hazardous Area
    Yes
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Chemical Resistant
    No
  • Repeatability (µs)
    N/A
  • Indicator
    LEDs
  • Min Op. Temp. (°C)
    -40
  • Number of Pins
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45AD9D W/30 on Powermatic Associates is $218.00. Order now.

About the product

Banner Engineering Q45AD9D W/30 is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. It features a diffuse mode with potentiometer adjustment and is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability in challenging environments. The Q45AD9D W/30, part of the Q45AD9 series, offers a sensing distance of 300mm and utilizes infrared light with a wavelength of 880 nm for detection. It supports both Light-ON and Dark-ON operating modes and provides a single digital output (NAMUR) with a quick response time of 5ms. This model is designed for M30 threaded mount installation and is protected against ingress with an IP67 NEMA 6P rating. It requires a supply voltage of 5Vdc to 15Vdc, with 12Vdc nominal, to operate efficiently.
