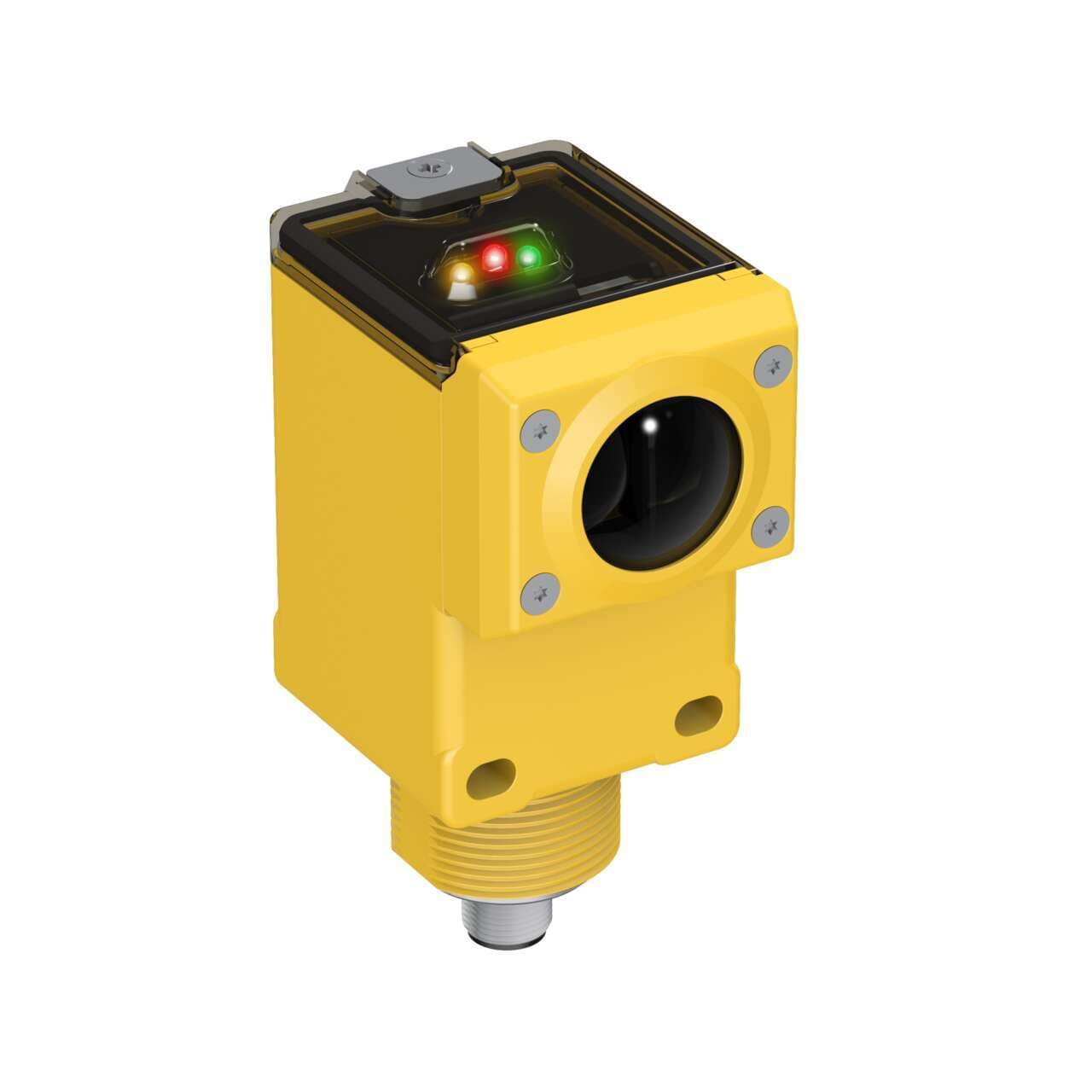

Q45AD9CV4Q Banner Proximity Sensors
Part#:Q45AD9CV4Q
Alt. Part#:37634
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 NAMUR: Convergent; Focal Point: 100 mm; Input: 5-15 V dc; Output: NAMUR; 4-pin M12 Integral QD
Product Details
- Weight 253.557928 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Light Color Visible red
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Digital outputs 1 x digital output (NAMUR)
- Product series / family name Q series
- Wavelength 680 nm
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) ATEX FM cCSAus CE
- Primary brand Banner Engineering
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Design convergent mode
- Thread size M30
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Sub-range name Q45AD9
- Sensing distance 100mm
- Response time 5ms / 0.005 s
- Order code / Manufacturer SKU 37634
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Shape Rectangular
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Sensing Beam Visible Red LED
- Power DC
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Housing Style Rectangular
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Audible No
- Outputs Constant Current
- Primary Housing Material Thermoplastic
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Sensing Mode (General) Proximity
- Max Sensing Distance (mm) 100
- Input/Output Discrete
- Sensing Mode (Detailed) Convergent
- Connection Integral QD
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Feature: Hazardous Area Yes
- Feature: Chemical Resistant No
- DeviceNet No
- IO Link No
- Power Supply/Supply Voltage 5-15 V dc
- Repeatability (µs) N/A
- Opposed Mode Emitter/Receiver N/A
- Special Feature: Intrinsically Safe Yes
- IP Rating IP67
- Output response time (ms) 5
- Max Op. Relative Humidity [%] 90% @ 50°C
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 680
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Operation Light/Dark Operate
- Number of Pins 4
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45AD9CV4Q on Powermatic Associates is $190.00. Order now.
About the product
Banner Engineering Q45AD9CV4Q is an intrinsically-safe photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor is mounted using an M30 threaded mount and operates within an ambient air temperature range of -40 to +70°C. The Q45AD9CV4Q, part of the Q45AD9 series, offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. It operates on a supply voltage range of 5Vdc to 15Vdc, with a nominal voltage of 12Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens. It has a sensing distance of 100mm and utilizes visible red light with a wavelength of 680 nm. The operating modes include Light-ON and Dark-ON, and it features 1 x digital output (NAMUR) with a response time of 5ms / 0.005 s.
