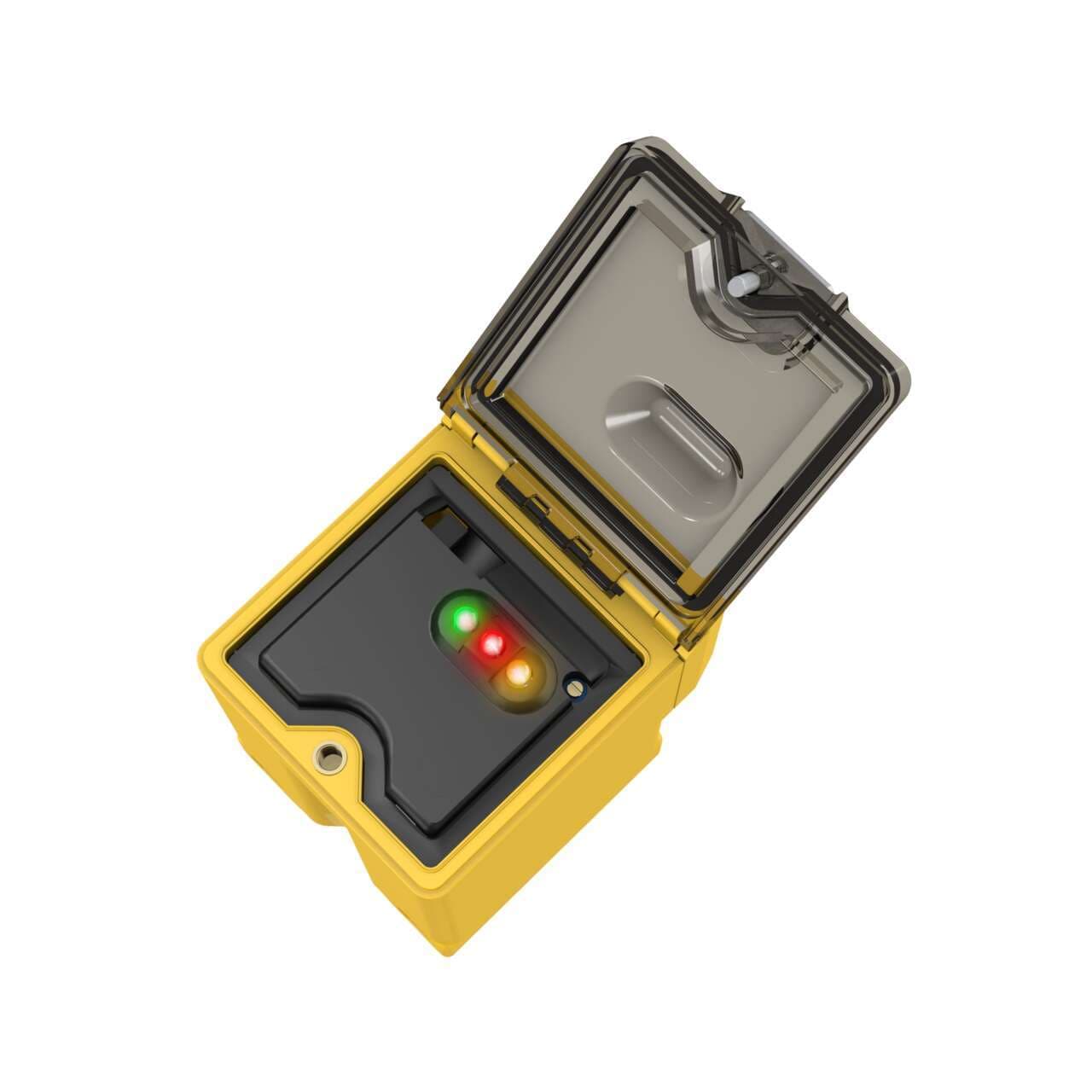

Q45AD9DL Banner Proximity Sensors

Product Details

• Weight
  308.44256 g
• Country Of Origin
  US
• Sub-range name
  Q45AD9
• Light Color
  Infrared (IR)
• Mounting mode
  Threaded mount
• Ambient air temperature for operation
  -40...+70 °C
• Primary brand
  Banner Engineering
• Sensing distance
  1m
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Product series / family name
  Q series
• Design
  diffuse mode
• Thread size
  M30
• Response time
  5ms / 0.005 s
• Material
  thermoplastic housing Acrylic lns.
• Main function
  Sensor (Photo-electric)
• Functions
  Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
• Shape
  Rectangular
• Digital outputs
  1 x digital output (NAMUR)
• Order code / Manufacturer SKU
  37618
• Supply voltage (DC)
  5Vdc-15Vdc (12Vdc nom.)
Wavelength
880 nm
Operating mode
Light-ON Dark-ON
Compliant with standard(s)
ATEX FM cCSAus CE
Degree of protection
IP67 NEMA 6P
Cable Length (m)
2
Connection
Cable
Special Feature: Water Detection
No
Lens Material
Acrylic
Sensing Mode (Detailed)
Diffuse
Special Feature: Intrinsically Safe
Yes
Adjustments
Potentiometer
Housing Style
Rectangular
Outputs
Constant Current
IP Rating
IP67
DeviceNet
No
Primary Housing Material
Thermoplastic
Max Op. Temp. (°C)
70
NEMA Rating
NEMA 6P
Power
DC
Power Supply/Supply Voltage
5-15 V dc
Repeatability (µs)
N/A
Opposed Mode Emitter/Receiver
N/A
Sensing Beam
Infrared LED
Output response time (ms)
5
Number of Pins
2
Feature: Timing (Hold/Delay)
No
Max Sensing Distance (mm)
1000
Quick Disconnect Type
No QD
Max Op. Relative Humidity [%]
90% @ 50°C
IO Link
No
Input/Output
Discrete
Operation
Light/Dark Operate
Delay at Power-up (ms)
N/A
Indicator
LEDs
Sensing Mode (General)
Proximity
Min Op. Temp. (°C)
-40
Special Feature: Remote Teach
No
Barrel Diameter (mm)
30
Feature: Encapsulated
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
Yes
