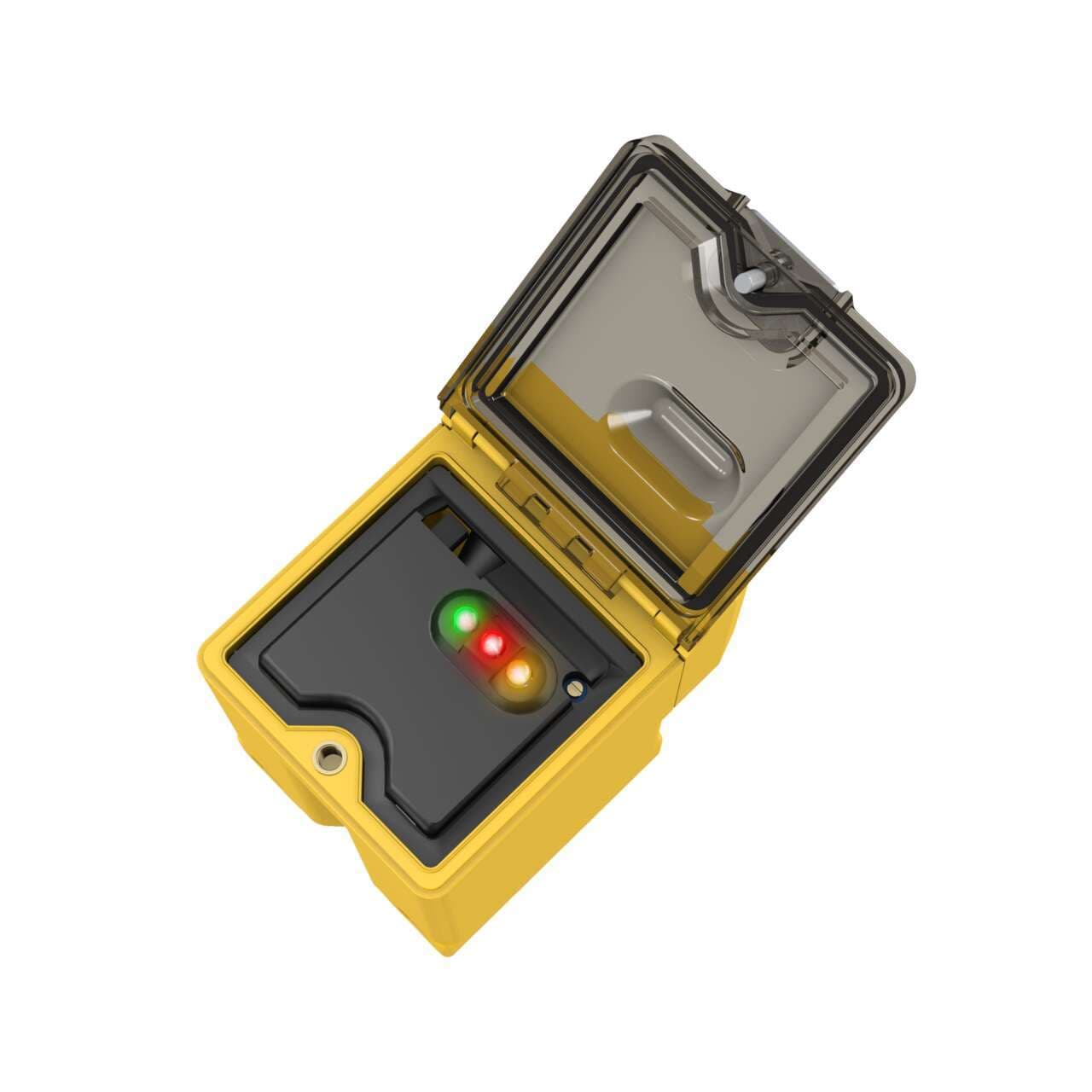

Q45AD9CV4 Banner Proximity Sensors
Part#:Q45AD9CV4
Alt. Part#:37624
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 NAMUR: Convergent; Focal Point: 100 mm; Input: 5-15 V dc; Output: NAMUR; 2 m (6.5 ft) Cable
Product Details
- Weight 335.65808 g
- Country Of Origin US
- Primary brand Banner Engineering
- Functions Intrinsically-safe photo-electric sensor green LED (power ON) red LED (signal) yellow LED (output state) potentiometer adjustment
- Light Color Visible red
- Digital outputs 1 x digital output (NAMUR)
- Compliant with standard(s) ATEX FM cCSAus CE
- Main function Sensor (Photo-electric)
- Design convergent mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Sub-range name Q45AD9
- Supply voltage (DC) 5Vdc-15Vdc (12Vdc nom.)
- Shape Rectangular
- Thread size M30
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Product series / family name Q series
- Sensing distance 100mm
- Wavelength 680 nm
- Material thermoplastic housing Acrylic lns.
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 37624
- Operating mode Light-ON Dark-ON
- Response time 5ms / 0.005 s
- Connection Cable
- Max Sensing Distance (mm) 100
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- IP Rating IP67
- Delay at Power-up (ms) N/A
- Sensing Mode (Detailed) Convergent
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Quick Disconnect Type No QD
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 5-15 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Feature: Encapsulated No
- Cable Length (m) 2
- Max Op. Temp. (°C) 70
- Sensing Beam Wavelength 680
- Barrel Diameter (mm) 30
- Housing Style Rectangular
- Outputs Constant Current
- Special Feature: Intrinsically Safe Yes
- Number of Pins 2
- DeviceNet No
- Power DC
- Output response time (ms) 5
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Indicator LEDs
- Feature: Chemical Resistant No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Feature: Hazardous Area Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45AD9CV4 on Powermatic Associates is $190.00. Order now.
About the product
Banner Engineering Q45AD9CV4 is an intrinsically-safe photo-electric sensor designed for precise detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It offers a sensing distance of 100mm and utilizes visible red light with a wavelength of 680 nm for detection. The Q45AD9CV4 operates in both Light-ON and Dark-ON modes, providing flexibility for various applications. It has a digital output (NAMUR) and boasts a quick response time of 5ms / 0.005 s. This model is part of the Q45AD9 series and is designed with an M30 threaded mount, ensuring secure installation. It operates on a supply voltage of 5Vdc-15Vdc (12Vdc nom.) and is protected against ingress with an IP67 NEMA 6P rating, making it suitable for challenging environments.
