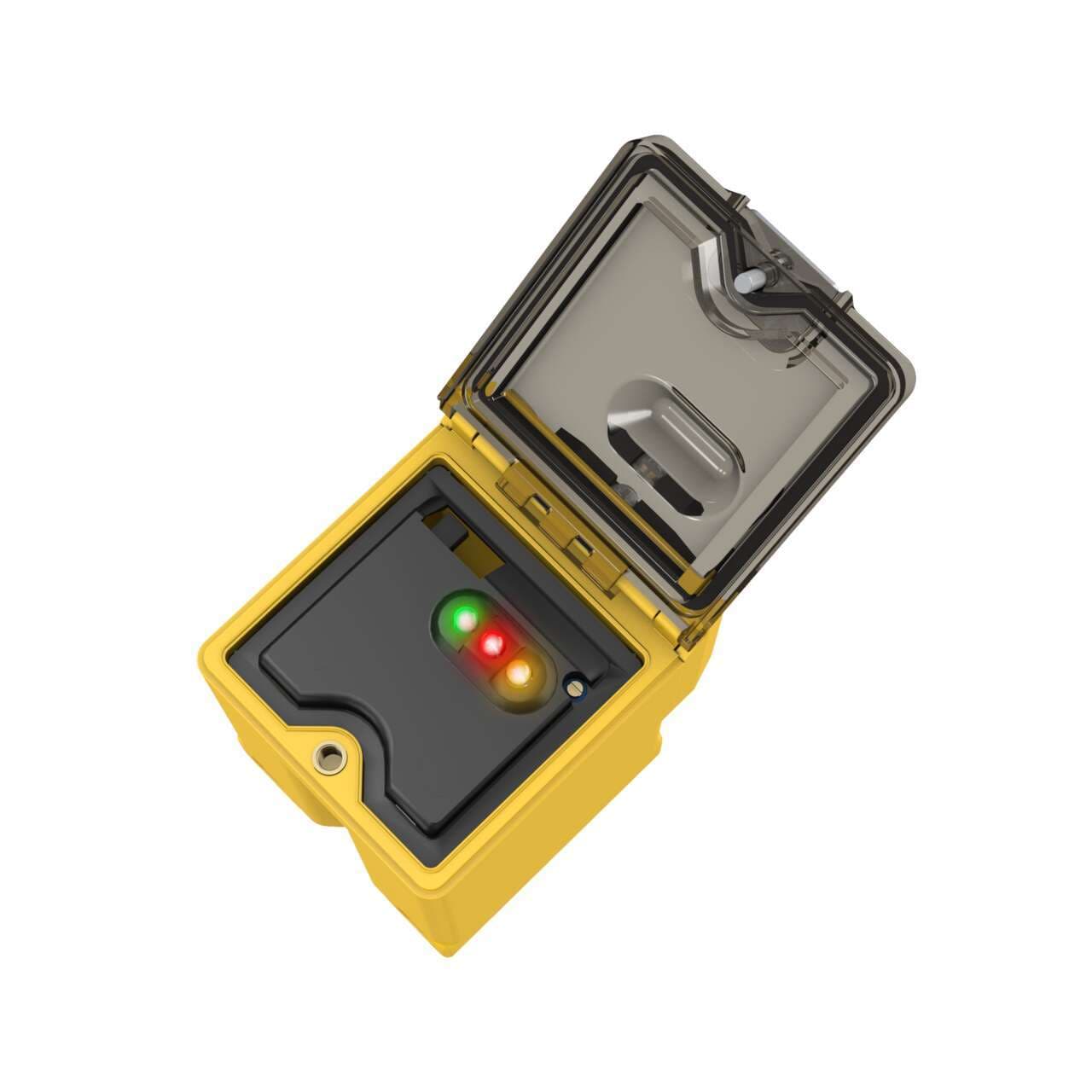

Q45BW22LPQ Banner Proximity Sensors
Part#:Q45BW22LPQ
Alt. Part#:37013
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Polarized Retro; Range: 0.15 -6 m; Input: 90-250 V ac; Output: SPST Solid-state Relay; 3-pin Mini Integral QD
Product Details
- Weight 260.361808 g
- Country Of Origin US
- Barrel Diameter (mm) 30
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 90-250 V ac
- Repeatability (µs) 500
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- Outputs Solid-State AC Switch
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Number of Pins 3
- Feature: Hazardous Area No
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Timing (Hold/Delay) Yes
- Power AC
- Connection Integral QD
- Delay at Power-up (ms) 100
- Feature: Encapsulated No
- Max Sensing Distance (mm) 6000
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Audible No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Input/Output Solid-State AC Switch
- Sensing Mode (Detailed) Polarized
- Output response time (ms) 2
- Housing Style Rectangular
- Quick Disconnect Type 7/8 in. (Mini)
- Special Feature: Water Detection No
- Adjustments Potentiometer
- DeviceNet No
- Sensing Mode (General) Retroreflective
- Min Op. Temp. (°C) -40
- Sensing Beam Wavelength 680
- Indicator LEDs
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BW22LPQ on Powermatic Associates is $181.00. Order now.
About the product
Banner Engineering Q45BW22LPQ is a polarized photo-electric sensor designed for a variety of detection applications. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is designed in a retro-reflective mode with potentiometer adjustment for precise control. It comes pre-equipped with a 3-pin 7/8" mini connector for easy connection and is powered by a supply voltage ranging from 90Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. The Q45BW22 series sensor boasts an IP67 NEMA 6P degree of protection, ensuring durability in harsh environments. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, suitable for sensing distances from 0.15cm up to 6m. The sensor emits a visible red light with a wavelength of 680 nm and offers both Light-ON and Dark-ON operating modes. It features a single digital output (Solid-state AC output; SPST contact type) with a rapid response time of 2ms / 0.002 s.
