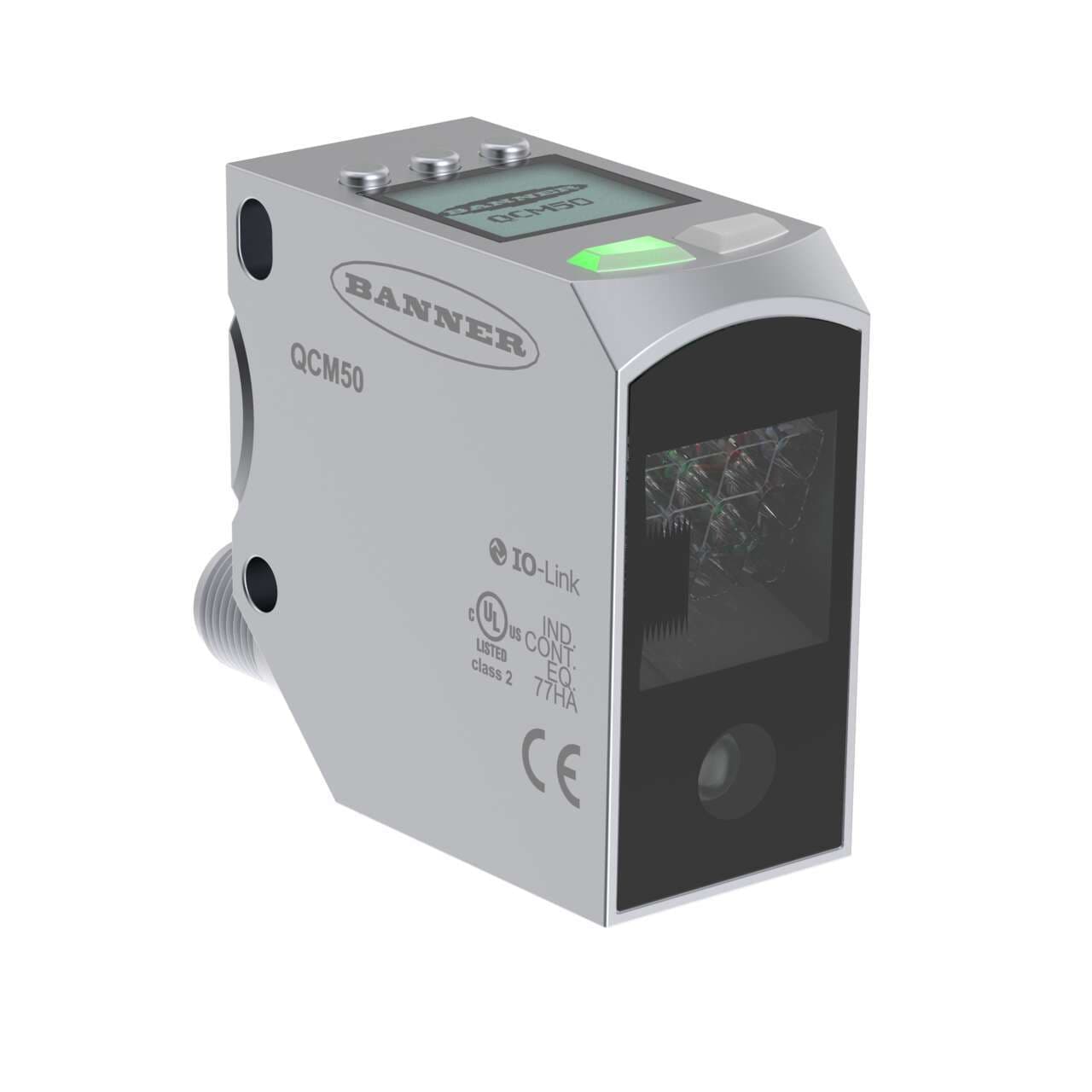

QCM50-K1D60-Q8-4 Banner Optical Sensors

QCM50-K1D60-Q8-4 on Powermatic Associates
Banner
  • QCM50-K1D60-Q8-4
  • QCM50-K1D60-Q8-4

Part#:QCM50-K1D60-Q8-4

Alt. Part#:806615

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QCM50 Series: Color Sensor; Range: 20-150 mm; Input: 10-30 V dc; Outputs: 1 Discrete PNP/NPN; IO-Link; 4-pin M12 Integral QD

Product Details

  • Weight
    189.147864 g
  • Country Of Origin
    DE
  • Application: Color
    Yes
  • IO Link
    Yes
  • Application: Registration Mark
    No
  • Application: Luminescence
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • SF-Sensing Specialty
    Long Range
  • SF-Multifunction Input/Output
    Yes
  • Number of Stored Colors
    1
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Delay at Power-up (ms)
    150
  • Special Feature: Analog Output
    No
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Max Op. Temperature (°C)
    55
  • Min Op. Temperature (°C)
    -20
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69K
  • Lens Material
    PMMA
  • Output response time (ms)
    33 to 0.33
  • Repeatability (µs)
    180
  • Operation
    NO/NC
  • Max Sensing Range (mm)
    150
  • LED Orientation
    Perpendicular to sensor length
  • Number of Pins
    4
  • Indicator
    LCD Display; LED(s)
  • Power Supply/Supply Voltage
    18-30 V dc
  • Connection
    Integral QD
  • Sensing Beam
    Visible White LED
  • Quick Disconnect Type
    M12 (Euro)
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • Special Feature: Remote Teach
    Yes
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Outputs
    1 PNP/NPN with IO-link
  • Adjustments
    Teach Button
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QCM50-K1D60-Q8-4 on Powermatic Associates is $880.00. Order now.

About the product

Banner Engineering QCM50-K1D60-Q8-4 is a high-performance color sensor designed for a variety of applications requiring color differentiation. It operates within an ambient air temperature range of -20 to +55 °C and features a TEACH mode for 1 color long-range detection. This sensor is equipped with a 4-pin Euro-style M12 connector for easy installation and falls under the QCM50 series. It has a compact rectangular shape with dimensions that produce an 8x8mm spot and is constructed from die-cast zinc housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. The sensor offers a degree of protection rated at IP67 and IP69K, making it suitable for harsh environments. It requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal. For communication, it utilizes the IO-Link protocol. The sensing distance ranges from 20 to 150mm, and it uses visible white light for detection. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 1 x digital output (PNP/NPN transistor). The sensor's surface is finished with a matte chrome plating.
