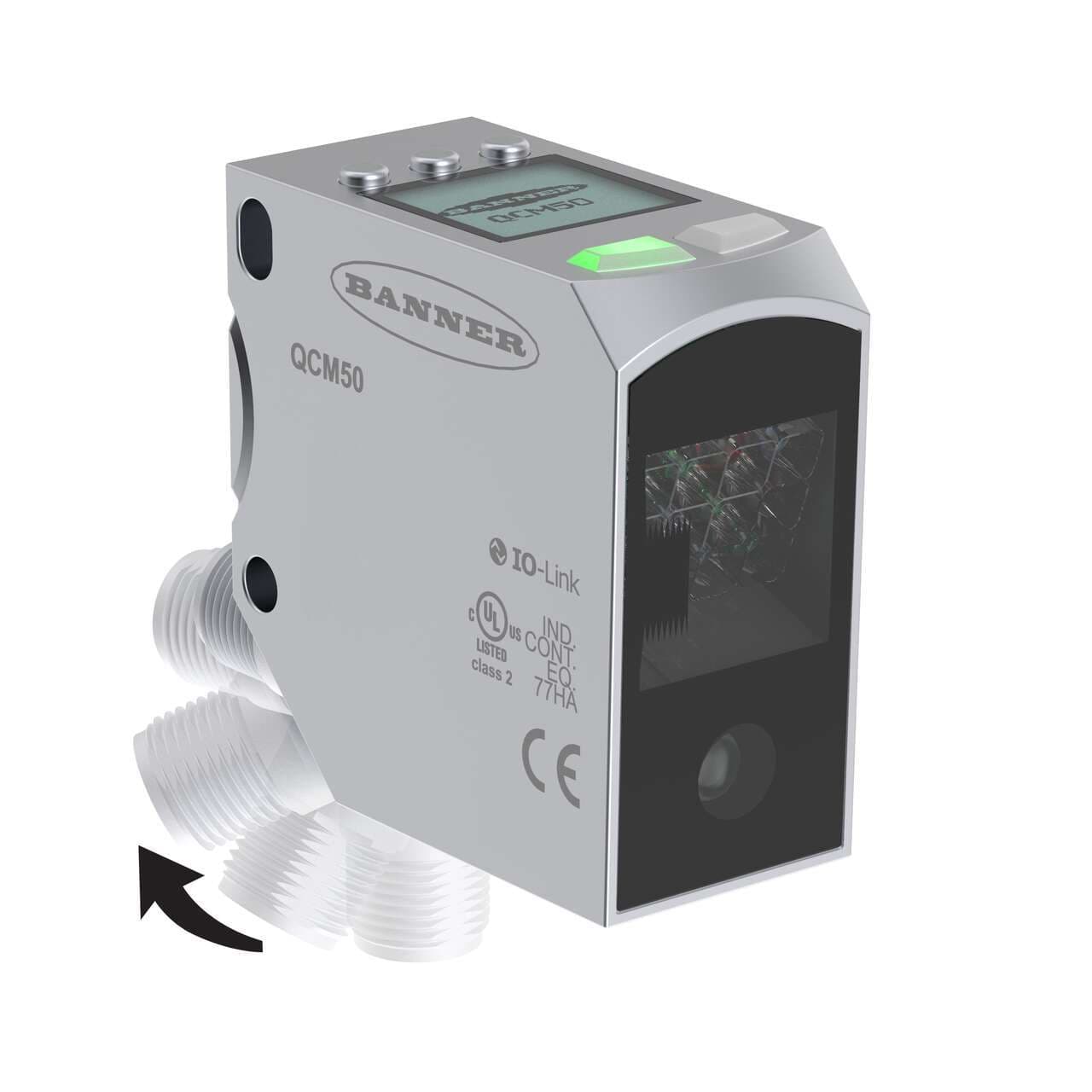

QCM50-K3D60-Q8-5 Banner Optical Sensors

QCM50-K3D60-Q8-5 on Powermatic Associates
Banner
  • QCM50-K3D60-Q8-5
  • QCM50-K3D60-Q8-5

Part#:QCM50-K3D60-Q8-5

Alt. Part#:806614

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QCM50 Series: Color Sensor; Range: 20-150 mm; Input: 10-30 V dc; Outputs: 3 Discrete PNP/NPN; IO-Link; 5-pin M12 Integral QD

Product Details

  • Weight
    188.7849904 g
  • Country Of Origin
    DE
  • Application: Color
    Yes
  • IO Link
    Yes
  • Application: Luminescence
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • SF-Multifunction Input/Output
    Yes
  • SF-Sensing Specialty
    Long Range
  • Application: Registration Mark
    No
  • Number of Stored Colors
    7
  • Delay at Power-up (ms)
    150
  • Special Feature: Analog Output
    No
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Min Op. Temperature (°C)
    -20
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69K
  • Output response time (ms)
    33 to 0.33
  • Operation
    NO/NC
  • Repeatability (µs)
    180
  • Lens Material
    PMMA
  • Indicator
    LCD Display; LED(s)
  • Number of Pins
    5
  • Power Supply/Supply Voltage
    18-30 V dc
  • LED Orientation
    Perpendicular to sensor length
  • Max Sensing Range (mm)
    150
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • Adjustments
    Teach Button
  • Sensing Beam
    Visible White LED
  • Connection
    Integral QD
  • Special Feature: Remote Teach
    No
  • Outputs
    1 PNP/NPN with IO-link, 2 PNP/NPN Auto Detect
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QCM50-K3D60-Q8-5 on Powermatic Associates is $1,030.00. Order now.

About the product

Banner Engineering QCM50-K3D60-Q8-5 is a high-performance color sensor within the QCM50 series, designed for a sensing distance of 20 to 150mm and featuring a visible white light color. This sensor operates within an ambient air temperature range of -20 to +55 °C and is equipped with a pre-equipped 5-pin Euro-style M12 connector for connectivity. It offers a TEACH mode capable of distinguishing up to 7 colors over long ranges and has a rectangular shape with dimensions featuring an 8x8mm spot. The sensor's housing is made from die-cast zinc with a Polymethyl methacrylate (PMMA) lens, coated in matte chrome-plated material for durability. It provides a degree of protection rated at IP67 and IP69K, ensuring its operation in demanding environments. The supply voltage required is 18Vdc to 30Vdc, with 24Vdc nominal. It supports the IO-Link communication protocol and offers three digital outputs (PNP/NPN transistor), operating in both NO (Normally Open) and NC (Normally Closed) modes.
