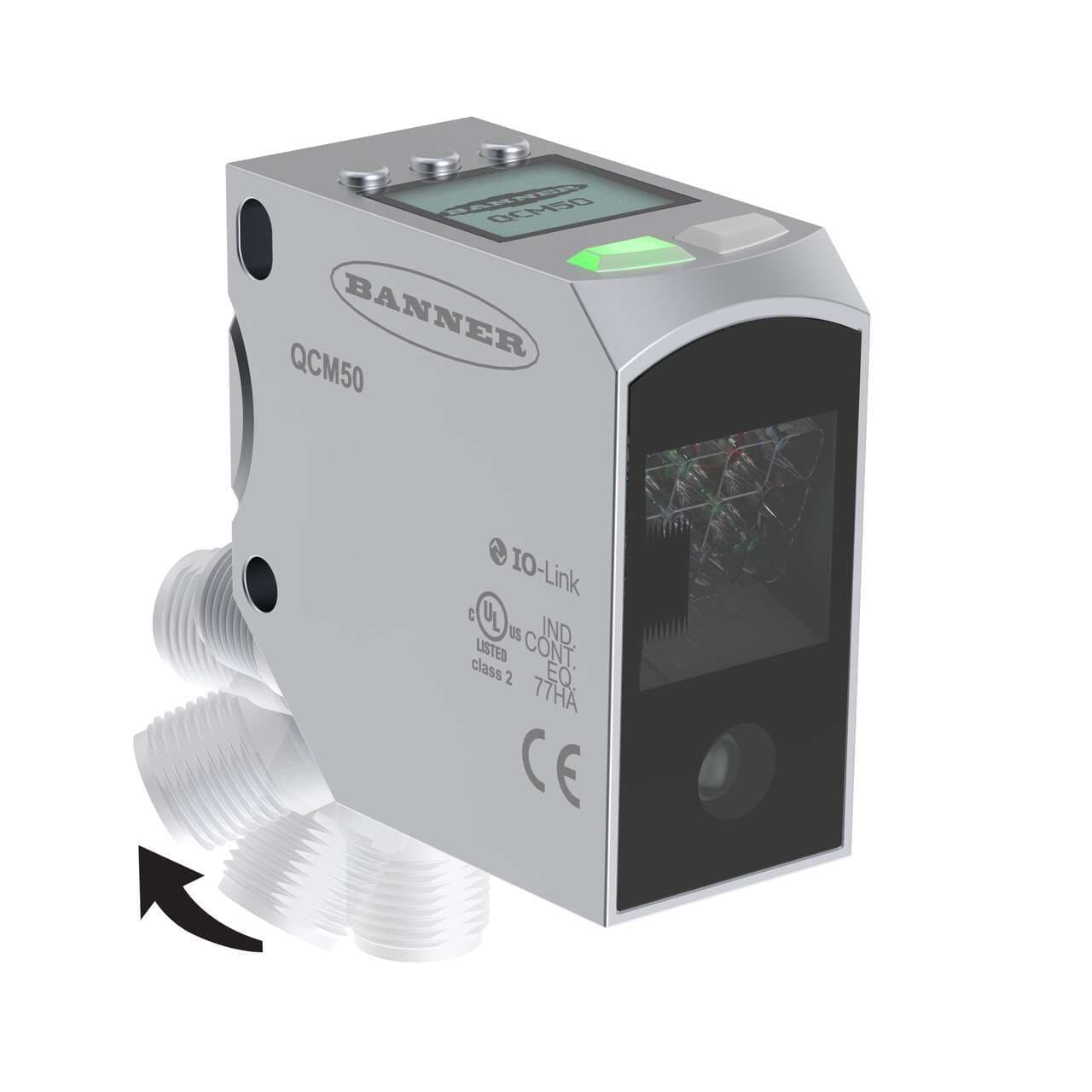

QCM50-K5D60-Q8-8 Banner Optical Sensors

QCM50-K5D60-Q8-8 on Powermatic Associates
Banner
  • QCM50-K5D60-Q8-8
  • QCM50-K5D60-Q8-8

Part#:QCM50-K5D60-Q8-8

Alt. Part#:806613

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QCM50 Series: Color Sensor; Range: 20-150 mm; Input: 10-30 V dc; Outputs: 5 Discrete PNP/NPN; IO-Link; 8-pin M12 Integral QD

Product Details

  • Weight
    189.147864 g
  • Country Of Origin
    DE
  • IO Link
    Yes
  • Application: Color
    Yes
  • SF-Multifunction Input/Output
    Yes
  • Application: Registration Mark
    No
  • Application: Luminescence
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • SF-Sensing Specialty
    Long Range
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Number of Stored Colors
    12
  • Special Feature: Analog Output
    No
  • Delay at Power-up (ms)
    150
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Min Op. Temperature (°C)
    -20
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69K
  • Operation
    NO/NC
  • Repeatability (µs)
    180
  • Lens Material
    PMMA
  • Output response time (ms)
    33 to 0.33
  • Number of Pins
    8
  • LED Orientation
    Perpendicular to sensor length
  • Indicator
    LCD Display; LED(s)
  • Power Supply/Supply Voltage
    18-30 V dc
  • Max Sensing Range (mm)
    150
  • Adjustments
    Teach Button
  • Special Feature: Remote Teach
    No
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Outputs
    1 PNP/NPN with IO-link, 4 PNP/NPN Auto Detect
  • Sensing Beam
    Visible White LED
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QCM50-K5D60-Q8-8 on Powermatic Associates is $1,334.00. Order now.

About the product

Banner Engineering QCM50-K5D60-Q8-8 is a high-performance color sensor designed for a variety of applications requiring color differentiation. It operates within an ambient air temperature range of -20 to +55 °C and features a TEACH mode capable of distinguishing up to 12 colors over a long range. This sensor is equipped with an 8-pin Euro-style M12 connector for easy integration into existing systems. Part of the QCM50 series, it has a compact rectangular shape with dimensions focusing on an 8x8mm spot and offers a sensing distance of 20 to 150mm. The sensor is constructed from die-cast zinc housing with a Polymethyl methacrylate (PMMA) lens and a matte chrome-plated coating, ensuring durability. It is rated with a degree of protection of IP67 and IP69K, making it suitable for harsh environments. The supply voltage required is 18Vdc to 30Vdc, with 24Vdc nominal. It supports the IO-Link communication protocol for enhanced connectivity and data exchange. The QCM50-K5D60-Q8-8 emits visible white light and can operate in both Normally Open (NO) and Normally Closed (NC) modes. It also features 5 x digital outputs (PNP/NPN transistor), allowing for versatile output configurations.

QCM50-K5D60-Q8-8 Related Documents

209634.pdf
