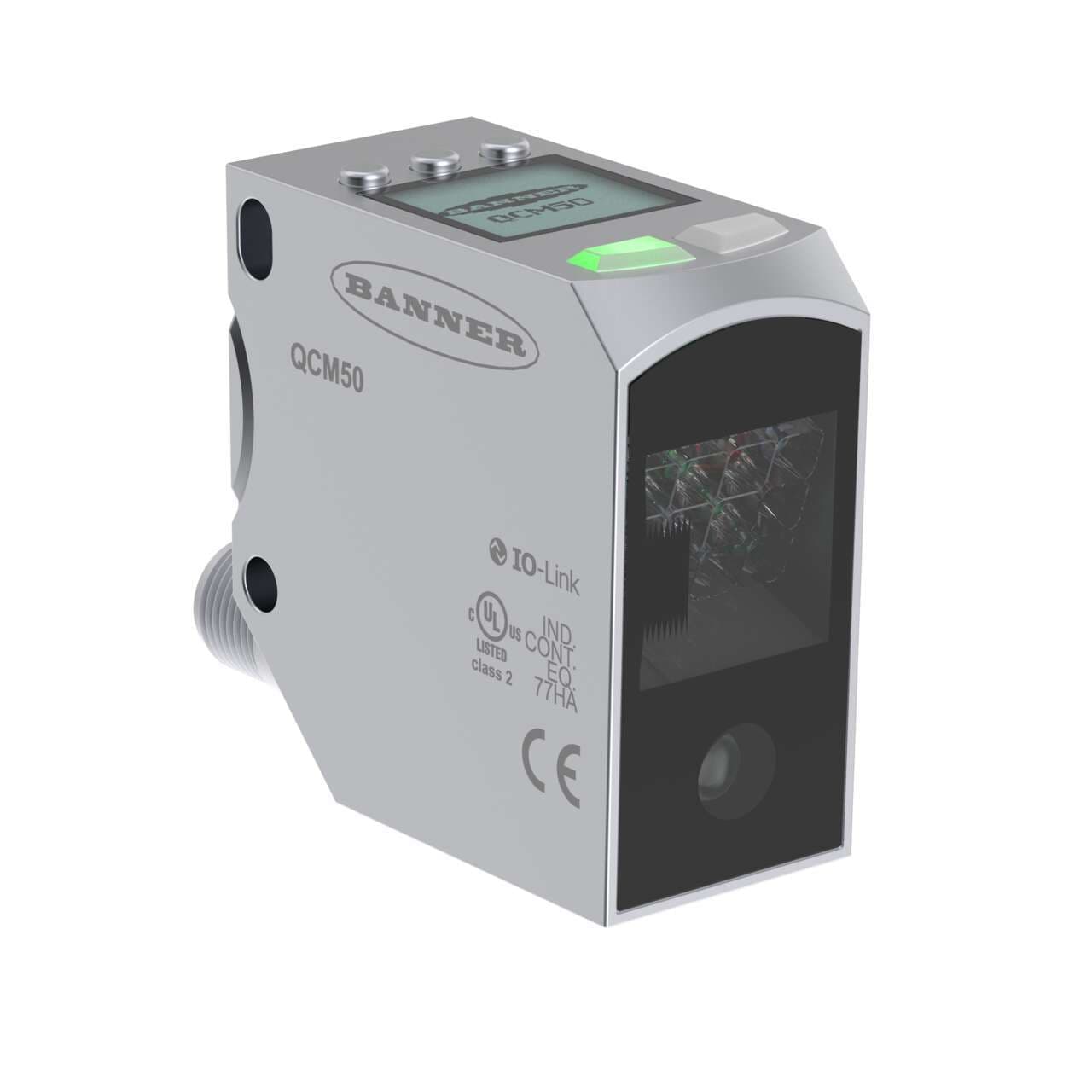

QCM50-K3D25-Q8-5 Banner Optical Sensors

QCM50-K3D25-Q8-5 on Powermatic Associates
Banner
  • QCM50-K3D25-Q8-5
  • QCM50-K3D25-Q8-5

Part#:QCM50-K3D25-Q8-5

Alt. Part#:806619

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QCM50 Series: Color Sensor; Range: 18-32 mm; Input: 10-30 V dc; Outputs: 3 Discrete PNP/NPN; IO-Link; 5-pin M12 Integral QD; Anti-Glare

Product Details

  • Weight
    188.3313984 g
  • Country Of Origin
    DE
  • Application: Registration Mark
    No
  • Application: Color
    Yes
  • Feature: Timing (Hold/Delay)
    Yes
  • SF-Sensing Specialty
    Anti-Glare
  • IO Link
    Yes
  • Application: Luminescence
    No
  • SF-Multifunction Input/Output
    Yes
  • Delay at Power-up (ms)
    150
  • Special Feature: Analog Output
    No
  • Number of Stored Colors
    7
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Max Op. Temperature (°C)
    55
  • NEMA Rating
    N/A
  • Min Op. Temperature (°C)
    -20
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • IP Rating
    IP67, IP69K
  • Lens Material
    PMMA
  • Output response time (ms)
    33 to 0.2
  • Repeatability (µs)
    180
  • Special Feature: Remote Teach
    No
  • Operation
    NO/NC
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Indicator
    LCD Display; LED(s)
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • LED Orientation
    Perpendicular to sensor length
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Number of Pins
    5
  • Sensing Beam
    Visible White LED
  • Outputs
    1 PNP/NPN with IO-link, 2 PNP/NPN Auto Detect
  • Power Supply/Supply Voltage
    18-30 V dc
  • Power
    DC
  • Max Sensing Range (mm)
    32
  • Adjustments
    Teach Button

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QCM50-K3D25-Q8-5 on Powermatic Associates is $1,030.00. Order now.

About the product

Banner Engineering QCM50-K3D25-Q8-5 is a high-performance color sensor designed for a variety of applications requiring color differentiation. It operates within an ambient air temperature range of -20 to +55°C and features a TEACH mode capable of distinguishing up to 7 colors, even in environments with glare. This sensor is part of the QCM50 series and is equipped with a 5-pin Euro-style M12 connector for easy integration. It has a compact, rectangular shape with dimensions tailored for a 6x6mm spot, ensuring precise sensing performance. The sensor is housed in die-cast zinc with a Polymethyl methacrylate (PMMA) lens and a matte chrome-plated coating, offering robust protection with an IP67 and IP69K degree of protection against dust and water ingress. It requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal. The QCM50-K3D25-Q8-5 supports IO-Link communication protocol for advanced connectivity and configuration options. It has a sensing distance of 18 to 32mm and utilizes visible white light for detection. The operating modes include Normally Open (NO) and Normally Closed (NC), and it features 3 digital outputs (PNP/NPN transistor) for versatile signaling options.

QCM50-K3D25-Q8-5 Related Documents

209634.pdf
