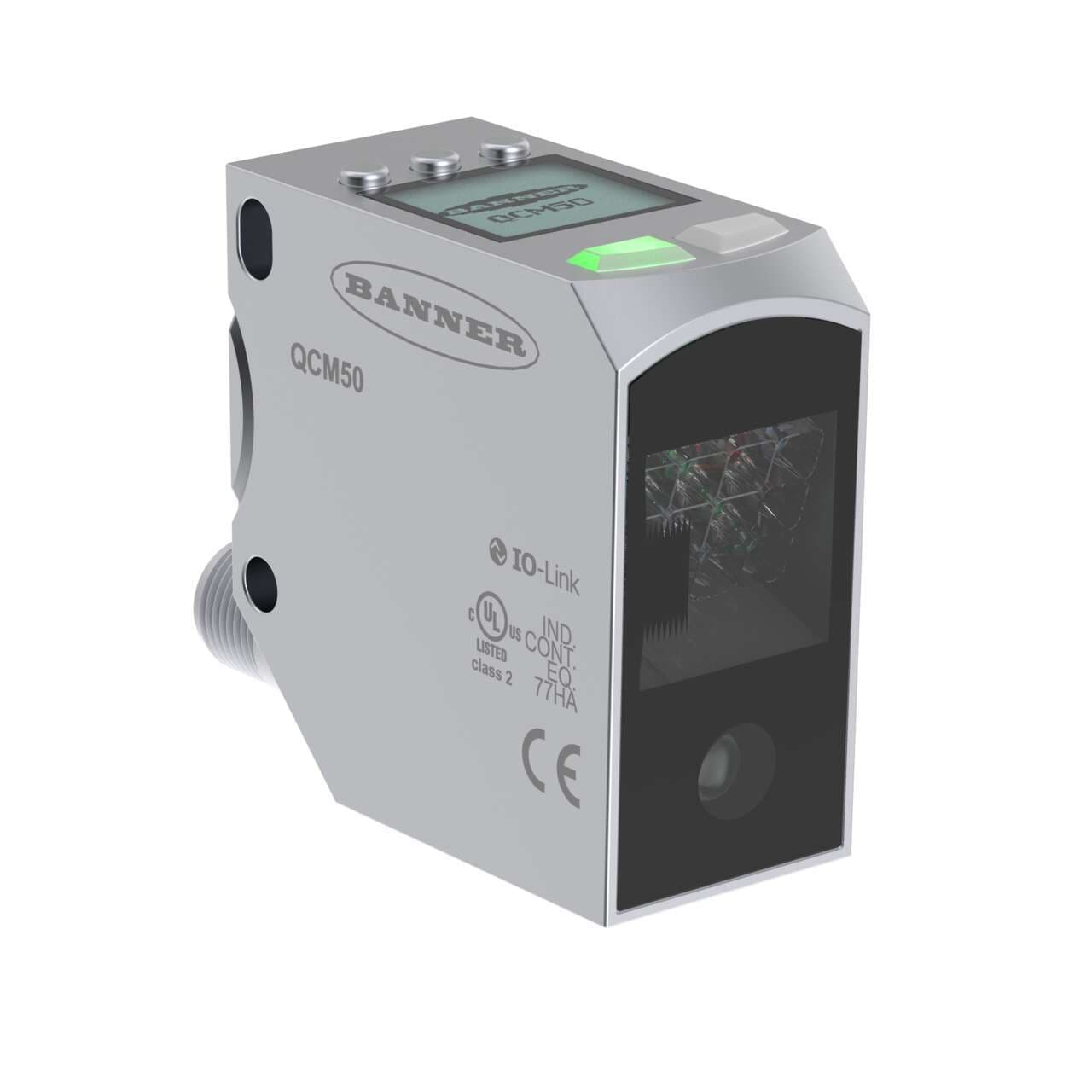

QCM50-K5D40-Q8-8 Banner Optical Sensors

QCM50-K5D40-Q8-8 on Powermatic Associates
Banner
  • QCM50-K5D40-Q8-8
  • QCM50-K5D40-Q8-8

Part#:QCM50-K5D40-Q8-8

Alt. Part#:806616

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QCM50 Series: Color Sensor; Range: 18-60 mm; Input: 10-30 V dc; Outputs: 5 Discrete PNP/NPN; IO-Link; 8-pin M12 Integral QD; Small Spot

Product Details

  • Weight
    189.9643296 g
  • Country Of Origin
    DE
  • Application: Registration Mark
    No
  • Application: Color
    Yes
  • IO Link
    Yes
  • Feature: Timing (Hold/Delay)
    Yes
  • Application: Luminescence
    No
  • SF-Sensing Specialty
    Small Spot Size
  • SF-Multifunction Input/Output
    Yes
  • Number of Stored Colors
    12
  • Beam Spot Size
    6 x 6 mm at 25 mm
  • Max Op. Temperature (°C)
    55
  • Delay at Power-up (ms)
    150
  • Special Feature: Analog Output
    No
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Min Op. Temperature (°C)
    -20
  • NEMA Rating
    N/A
  • IP Rating
    IP67, IP69K
  • LED Orientation
    Perpendicular to sensor length
  • Repeatability (µs)
    180
  • Operation
    NO/NC
  • Output response time (ms)
    33 to 0.33
  • Lens Material
    PMMA
  • Indicator
    LCD Display; LED(s)
  • Max Sensing Range (mm)
    60
  • Number of Pins
    8
  • Power Supply/Supply Voltage
    18-30 V dc
  • Sensing Beam Wavelength
    Broad Spectrum White
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Adjustments
    Teach Button
  • Outputs
    1 PNP/NPN with IO-link, 4 PNP/NPN Auto Detect
  • Special Feature: Remote Teach
    No
  • Sensing Beam
    Visible White LED
  • Primary Housing Material
    Zinc Die-Cast, Matte Chrome Plating
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QCM50-K5D40-Q8-8 on Powermatic Associates is $1,334.00. Order now.

About the product

Banner Engineering QCM50-K5D40-Q8-8 is a high-performance color sensor designed for precise color differentiation with a small spot size of 4x4mm. It operates within an ambient air temperature range of -20 to +55 °C and is equipped with a TEACH mode capable of recognizing up to 12 colors. This sensor features a pre-equipped 8-pin Euro-style M12 connector for connectivity and belongs to the QCM50 series. It has a rectangular shape with dimensions tailored for compact applications and is constructed from die-cast zinc housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. The sensor offers a degree of protection rated at IP67 and IP69K, making it suitable for harsh environmental conditions. It requires a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal. For communication, it utilizes the IO-Link protocol and has a sensing distance range of 18 to 60mm. The light color used for sensing is visible white, and it supports both Normally Open (NO) and Normally Closed (NC) operating modes. Additionally, it features 5 x digital outputs (PNP/NPN transistor) and is coated in matte chrome-plated material for enhanced resilience.
