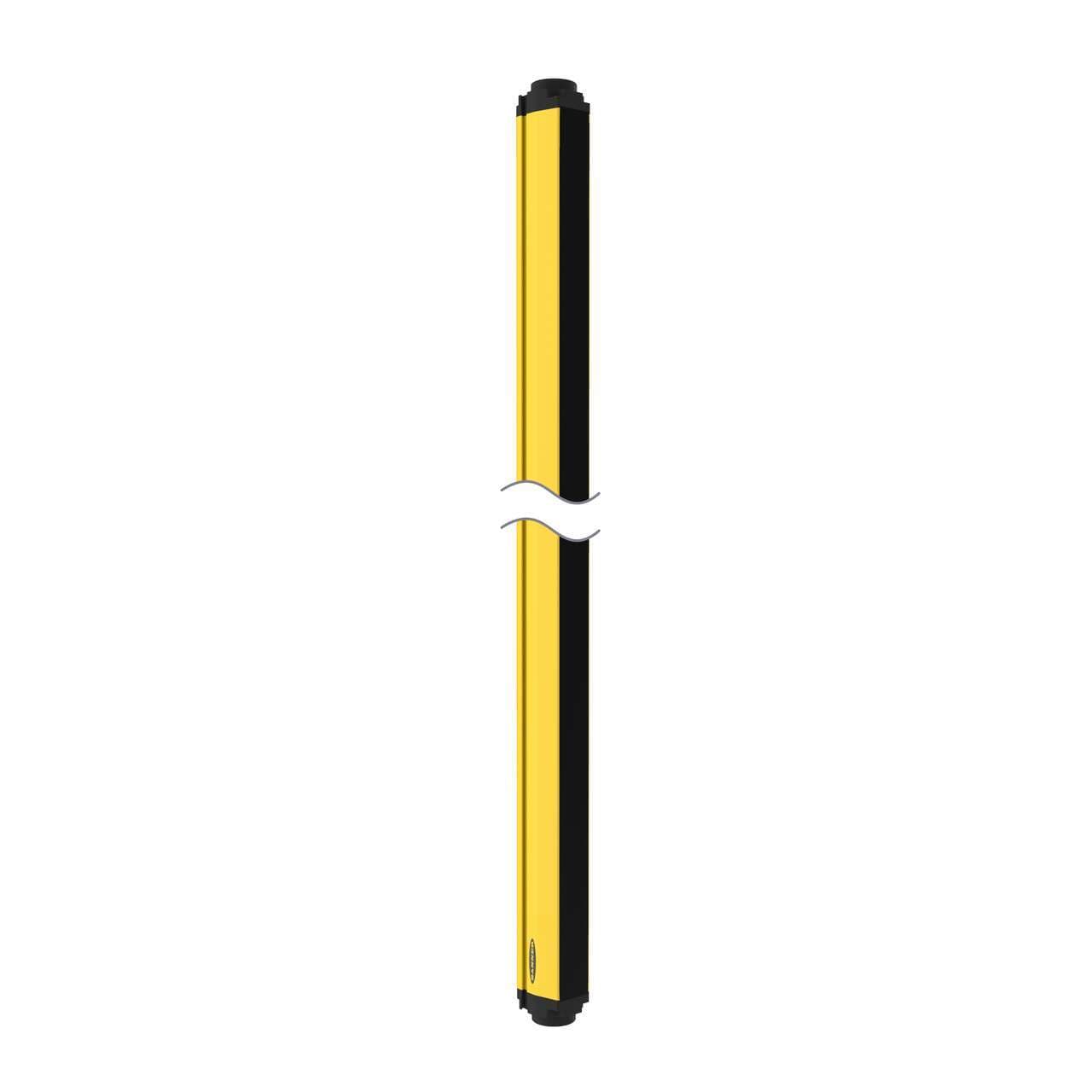

SGSB2-500 Banner Safety Light Curtains

SGSB2-500 on Powermatic Associates
Banner

Part#:SGSB2-500

Alt. Part#:803237

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

Safety Grid, Passive Mirror Assembly; Beams: 2; Resolution: 500 mm; Range: 0.5-8 m; Mounting Hardware Ordered Separately

Product Details

  • Weight
    1764.47288 g
  • Country Of Origin
    HU
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    N/A
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Operating Voltage
    N/A
  • Feature: Integral Muting
    Yes
  • Feature: End-to-End Sensing
    No
  • Fault Output
    No
  • OSSD Rating
    N/A
  • Housing Material
    Aluminum; PMMA
  • Auxiliary Output
    No
  • Scan Code
    None
  • System Type
    Mirror Assembly - Passive
  • Vibration
    10-55 Hz at 0.35 mm
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Resolution (mm)
    2 - 500
  • Response Time
    40
  • Reduced Resolution
    No
  • Recovery Time
    N/A
  • PL Rating
    Ple
  • IP Rating
    IP65
  • Operating Distance (m)
    0.5 - 8
  • Defined Area Height (mm)
    500
  • Overall Length (mm)
    580.5
  • Dimensions WxD (mm)
    52 x 56.9
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Fixed Blanking
    No
  • Connector Type
    M12
  • Housing Finish
    Yellow Polyester
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSB2-500 on Powermatic Associates is $262.00. Order now.

About the product

Banner Engineering SGSB2-500 is a reflector designed for automation applications, featuring a passive unit mirror/reflector assembly. It is constructed with an aluminium housing and a Polymethyl methacrylate (PMMA) lens, complemented by thermoplastic end caps. This part is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It offers a protective height of 500mm and comes in a yellow housing. The SGSB2-500 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection, ensuring durability in various environments. The reflector's shape is rectangular, with dimensions of 52mm in width, 581mm in height, and 57mm in depth. It features 2 beams with a 500mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance is effective from 50cm to 8m, utilizing infrared (IR) light with a wavelength of 950 nm and a response time of 40ms / 0.04 s.
