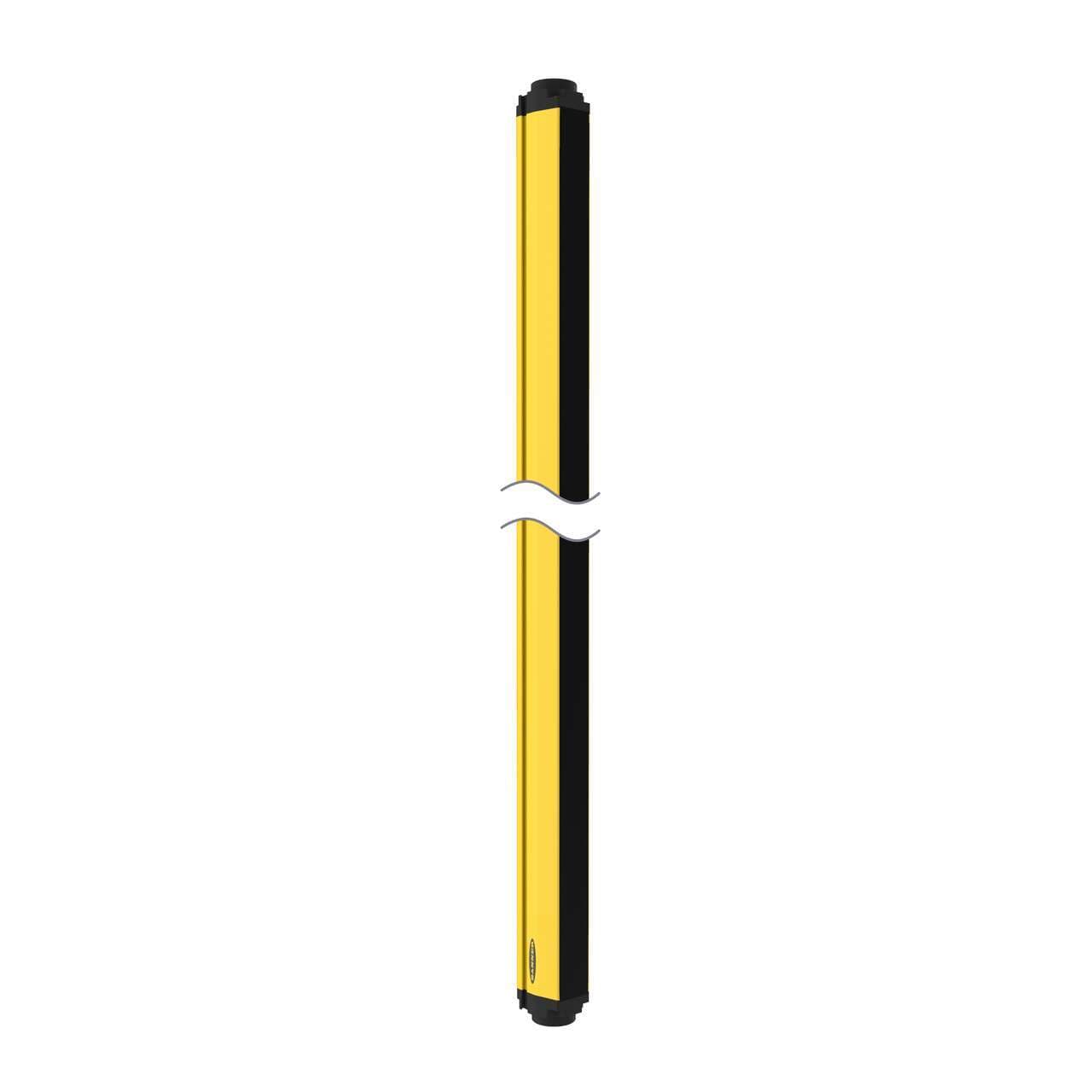

SGSB4-300 Banner Safety Light Curtains

SGSB4-300 on Powermatic Associates
Banner

Part#:SGSB4-300

Alt. Part#:803239

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

Safety Grid, Passive Mirror Assembly; Beams: 4; Resolution: 300 mm; Range: 0.5 to 6.5 m; Mounting Hardware Ordered Separately

Product Details

  • Weight
    2766.9112 g
  • Country Of Origin
    HU
  • Feature: Integral Muting
    Yes
  • OSSD Rating
    N/A
  • Auxiliary Output
    No
  • Resolution (mm)
    4 - 300
  • Reduced Resolution
    No
  • Connector Type
    M12
  • Safety Level
    Type 4
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    N/A
  • Housing Material
    Aluminum; PMMA
  • Fault Output
    No
  • System Type
    Mirror Assembly - Passive
  • Vibration
    10-55 Hz at 0.35 mm
  • Scan Code
    None
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Response Time
    27
  • SIL Rating
    SIL3; CL3
  • Recovery Time
    N/A
  • PL Rating
    Ple
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.5 - 6.5
  • Operating Voltage
    N/A
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Primary Housing Material
    Aluminum
  • Defined Area Height (mm)
    900
  • Overall Length (mm)
    980.5
  • Housing Finish
    Yellow Polyester
  • Dimensions WxD (mm)
    52 x 56.9
  • IP Rating
    IP65
  • Fixed Blanking
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSB4-300 on Powermatic Associates is $458.00. Order now.

About the product

Banner Engineering SGSB4-300 is a reflector designed for automation applications, featuring a passive unit mirror/reflector assembly. It is constructed with an aluminium housing and a Polymethyl methacrylate (PMMA) lens, complemented by thermoplastic end caps. This part is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It offers a protective height of 300mm and comes in a yellow housing. The SGSB4-300 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection, ensuring durability against dust and water ingress. The reflector's shape is rectangular, with dimensions of 52mm in width, 981mm in height, and 57mm in depth. It features 2 beams with a 300mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance is effective from 50cm to 6.5m, utilizing infrared (IR) light with a wavelength of 950 nm and a response time of 27ms (0.027 s).
