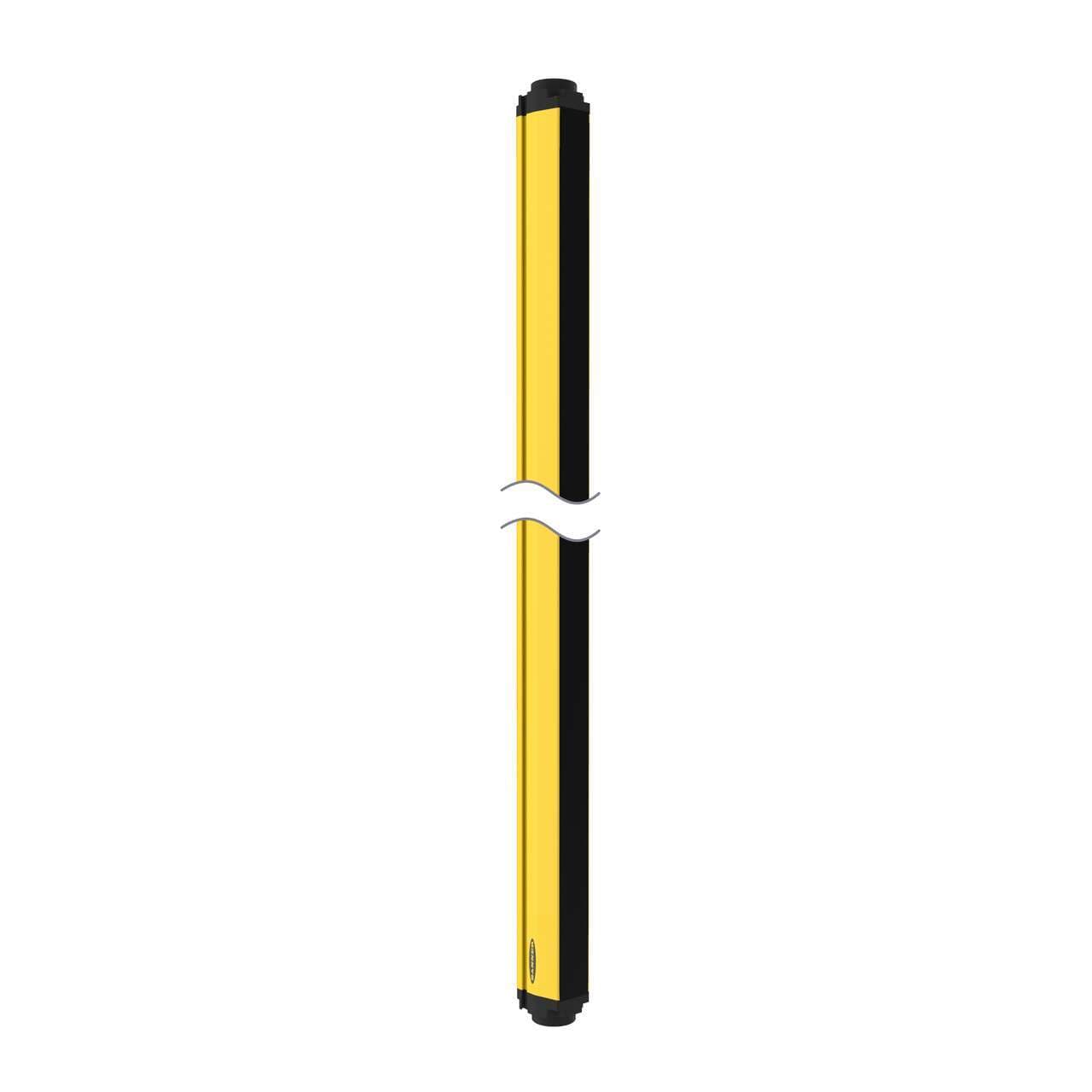

SGSB4-400 Banner Safety Light Curtains

SGSB4-400 on Powermatic Associates
Banner

Part#:SGSB4-400

Alt. Part#:803240

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

Safety Grid, Passive Mirror Assembly; Beams: 4; Resolution: 400 mm; Range: 0.5-8 m; Mounting Hardware Ordered Separately

Product Details

  • Weight
    3764.8136 g
  • Country Of Origin
    HU
  • Fault Output
    No
  • Response Time
    30
  • Connector Type
    M12
  • Feature: Integral Muting
    Yes
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    N/A
  • OSSD Rating
    N/A
  • Housing Material
    Aluminum; PMMA
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Mirror Assembly - Passive
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Scan Code
    None
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • Recovery Time
    N/A
  • Resolution (mm)
    4 - 400
  • Operating Distance (m)
    0.5 - 8
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Operating Voltage
    N/A
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP65
  • Overall Length (mm)
    1280.5
  • Fixed Blanking
    No
  • Dimensions WxD (mm)
    52 x 56.9
  • Defined Area Height (mm)
    1200
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSB4-400 on Powermatic Associates is $525.00. Order now.

About the product

Banner Engineering SGSB4-400 is a reflector designed for automation applications, featuring a passive unit mirror/reflector assembly. It is constructed with an aluminium housing and a Polymethyl methacrylate (PMMA) lens, complemented by thermoplastic end caps. This part is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It offers a protective height of 400mm and comes in a yellow housing. The SGSB4-400 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection, ensuring its suitability for various industrial environments. The reflector has a rectangular shape with dimensions of 52mm in width, 1281mm in height, and 57mm in depth. It features 2 beams with a 400mm beam spacing/pitch and includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance is effective from 50cm to 8m, utilizing infrared (IR) light with a wavelength of 950 nm and a response time of 30ms / 0.03 s.

SGSB4-400 Related Documents

203063.pdf
