SLPE14-690 Banner Safety Light Curtains

SLPE14-690 on Powermatic Associates
Banner

Part#:SLPE14-690

Alt. Part#:83635

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

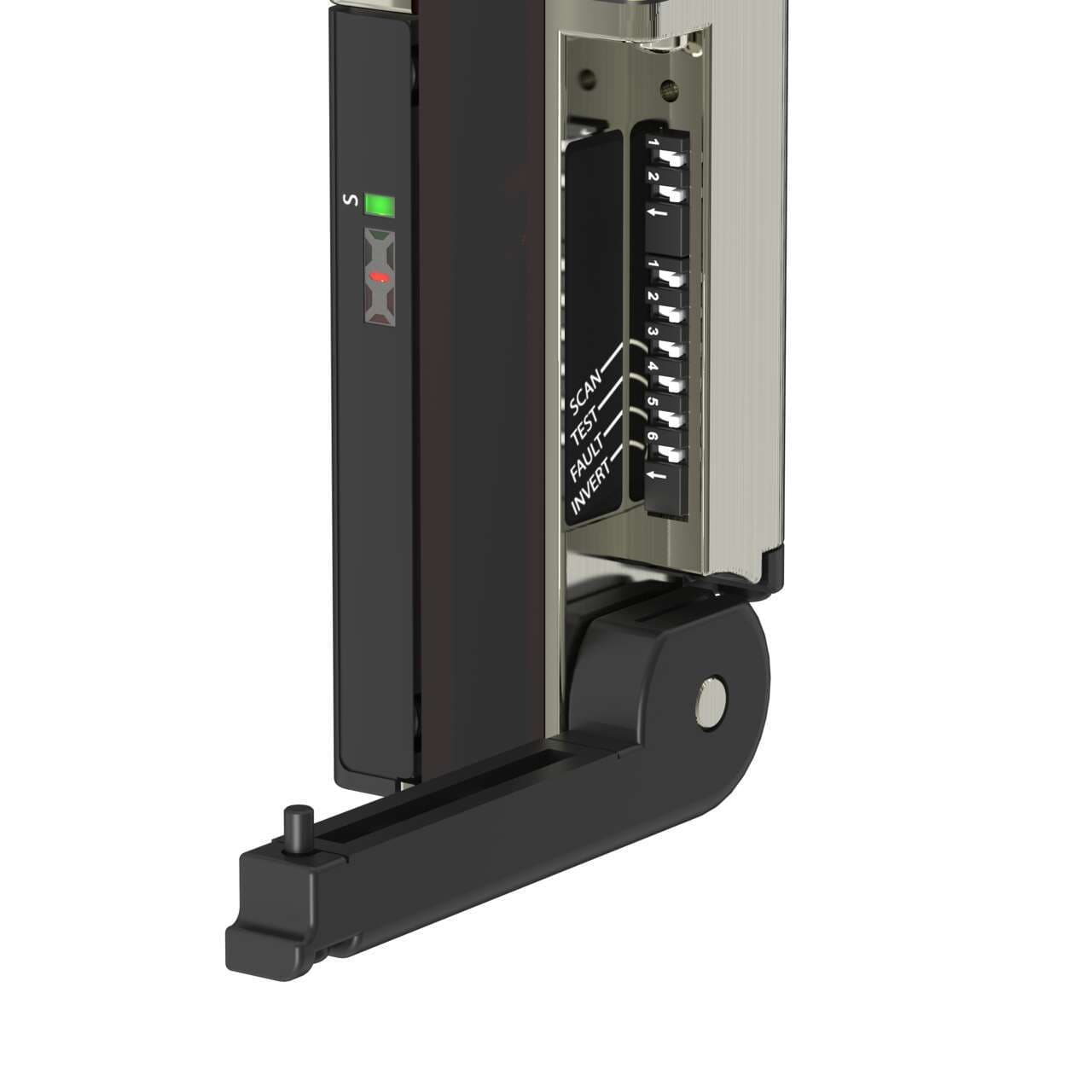

SLPE14-690 EZ-SCREEN Low Profile Emitter; Res.: 14 mm Response (Tr): 19.5 ms; Beams: 69; Rng: 0.1-7 m (4 in - 23 ft); Height: 690 mm (27.1 in); Integral RD

Product Details

  • Weight
    #VALUE! g
  • Country Of Origin
    US
  • Feature: End-to-End Sensing
    Yes
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    Yes
  • Trip/Latch Output
    N/A
  • OSSD Rating
    N/A
  • Supply Current
    60 mA max.
  • Fault Output
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Vibration
    10-55 Hz at 0.35 mm
  • Auxiliary Output
    No
  • Short Protection
    Yes
  • System Type
    Emitter
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Response Time
    19.5
  • Shock
    10g at 16ms (6000 cycles)
  • Reduced Resolution
    No
  • Scan Code
    Selectable
  • PL Rating
    Ple
  • Recovery Time
    33-220 / 109-800
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Resolution (mm)
    14
  • Operating Voltage
    24 V dc +/- 15%
  • Fixed Blanking
    No
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Operating Distance (m)
    0.1 - 7
  • Overall Length (mm)
    690
  • Connector Type
    Removable Disconnect
  • Safety Level
    Type 4
  • External Monitoring Device
    No
  • Defined Area Height (mm)
    690
  • low-profile
    Yes
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Dimensions WxD (mm)
    28 x 26
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPE14-690 on Powermatic Associates is $1,260.00. Order now.

About the product

Banner Engineering SLPE14-690 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This unit, serving as an emitter alone, is encased in an aluminium housing with an acrylic lens and zinc end caps, featuring a yellow housing color. It offers a protective height of 690mm and operates with a supply voltage of 24Vdc. The SLPE14-690 is equipped with an Integral Removable Disconnect (RD) connection type and has dimensions of 28mm in width, 689mm in height, and 26mm in depth. It is designed to operate within an ambient air temperature range of 0 to +55°C and provides a degree of protection rated at IP65. The safety light curtain has a sensing distance ranging from 10cm to 7m and utilizes infrared (IR) light with a wavelength of 850 nm. It features a response time of 19.5ms and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; 250mA; PNP transistor) for FAULT output.

SLPE14-690 Related Documents

140044.pdf
