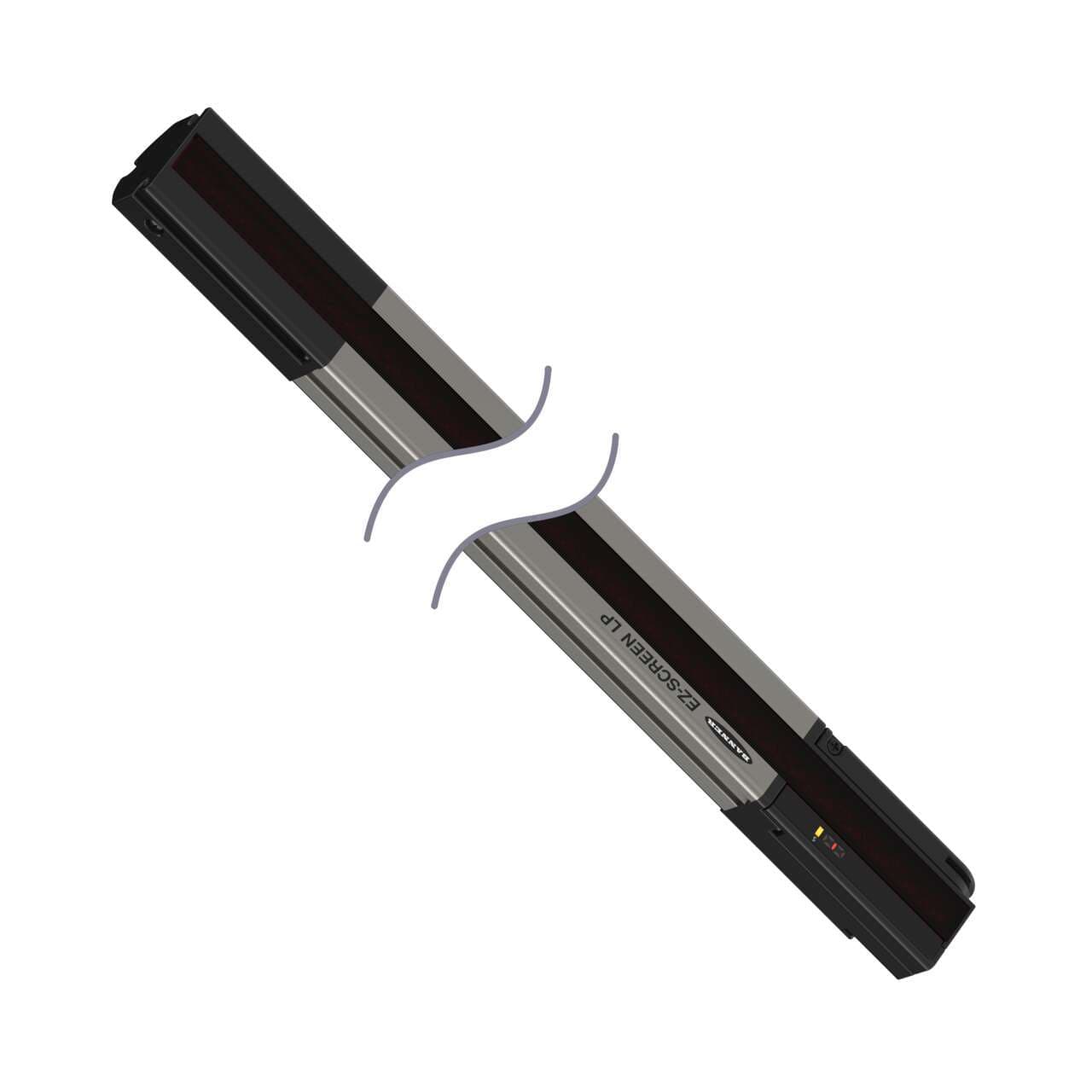

SLPE14-690AP8 Banner Safety Light Curtains
Part#:SLPE14-690AP8
Alt. Part#:83863
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPE14-690 AP8 EZ-SCREEN Low Profile EMITTER; Resolution: 14 mm; Response (Tr): 19.5 ms; Beams: 69; Range: 0.1-7 m (4 in - 23 ft); Height: 690 mm (27.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD; Housing: Anodized Aluminum
Product Details
- Weight 1270.0576 g
- Country Of Origin US
- Effective Aperture Angle Type 4 Per IEC 61496-2
- PL Rating Ple
- Scan Code Selectable
- Housing Material Aluminum; Zinc; Acrylic
- Primary Housing Material Aluminum
- IP Rating IP65
- Electrical Safety Class III
- Supply Current 60 mA max.
- External Monitoring Device No
- Housing Finish Clear Anodized
- System Type Emitter
- Feature: ESD Safe No
- Defined Area Height (mm) 690
- Operating Distance (m) 0.1 - 7
- Reduced Resolution No
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Safety Level Type 4
- Operating Temperature 0 to +55 deg. C; RH 95%
- Auxiliary Output No
- SIL Rating SIL3; CL3
- low-profile Yes
- Operating Voltage 24 V dc +/- 15%
- Response Time 19.5
- Trip/Latch Output N/A
- Connector Type M12 Pigtail (Yellow)
- Recovery Time 33-220 / 109-800
- Fault Output Yes
- Overall Length (mm) 690
- Fixed Blanking No
- Resolution (mm) 14
- Shock 10g at 16ms (6000 cycles)
- OSSD Rating N/A
- Dimensions WxD (mm) 28 x 26
- Number of Pins (Receiver/Emitter) 8
- Short Protection Yes
- Feature: Integral Muting No
- Test Input Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPE14-690AP8 on Powermatic Associates is $1,278.00. Order now.
About the product
Banner Engineering SLPE14-690AP8 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This unit, serving as the emitter alone, is housed in clear anodized aluminum with acrylic lens and zinc end caps. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector for connectivity. The protective height of the device is 690mm, and it operates on a 24Vdc supply voltage. It is designed to function within an ambient air temperature range of 0 to +55°C and offers a degree of protection rated at IP65. The net dimensions are 28mm in width, 689mm in height, and 26mm in depth. This model is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for fault indication. It has a sensing distance range from 10cm to 7m and utilizes infrared light with a wavelength of 850 nm. The response time is 19.5ms, and the housing color is gray.
