SLPR25-1110AP8 Banner Safety Light Curtains

SLPR25-1110AP8 on Powermatic Associates
Banner
  • SLPR25-1110AP8
  • SLPR25-1110AP8

Part#:SLPR25-1110AP8

Alt. Part#:83986

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

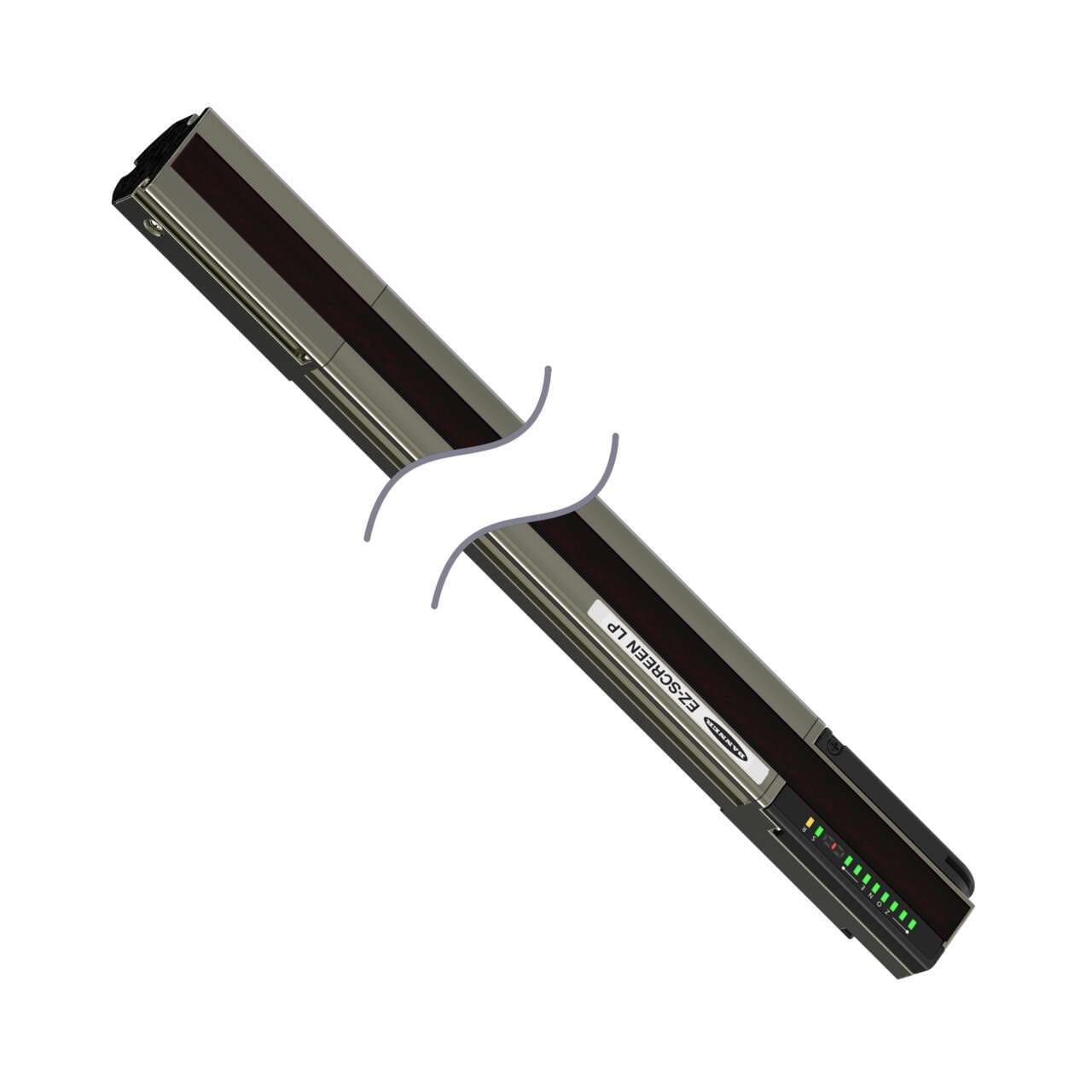

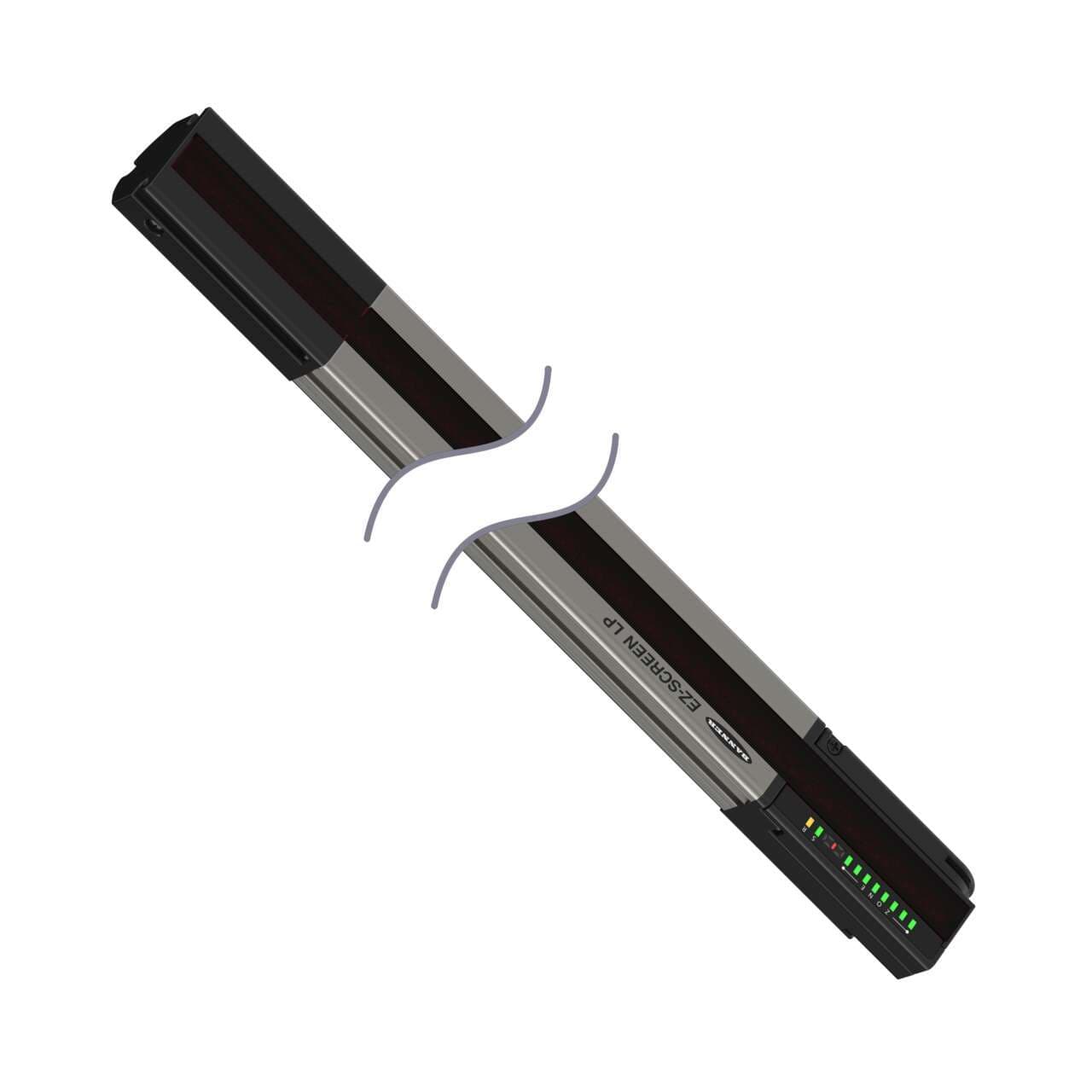

SLPR25-1110 AP8 EZ-SCREEN Low Profile RECEIVER; Resolution: 25 mm; Response (Tr): 17 ms; Beams: 56; Range: 0.1-7 m (4 in - 23 ft); Height: 1110 mm (43.7 in); 300 mm (1 ft) 8-pin M12 Pigtail QD; Housing: Anodized Aluminum

Product Details

  • Weight
    1723.6496 g
  • Country Of Origin
    US
  • Trip/Latch Output
    Selectable
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    Yes
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Supply Current
    150 mA max.
  • Fault Output
    Yes
  • OSSD Rating
    24 V dc at 0.5 A each
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Response Time
    17
  • Reduced Resolution
    Yes
  • System Type
    Receiver
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Recovery Time
    33-220 / 109-800
  • Resolution (mm)
    25
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Clear Anodized
  • Fixed Blanking
    Yes
  • Operating Distance (m)
    0.1 - 7
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Primary Housing Material
    Aluminum
  • External Monitoring Device
    1 or 2 Channel
  • low-profile
    Yes
  • Defined Area Height (mm)
    1110
  • Overall Length (mm)
    1110
  • Connector Type
    M12 Pigtail (Yellow)
  • Dimensions WxD (mm)
    28 x 26

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPR25-1110AP8 on Powermatic Associates is $2,027.00. Order now.

About the product

Banner Engineering SLPR25-1110AP8 is a safety light curtain from the LP Low-Profile series designed for hand detection with a resolution of 25mm. This receiver unit is housed in clear anodized aluminum with acrylic lens and zinc end caps, ensuring durability. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector for easy installation. The protective height of the unit is 1110mm, and it operates on a 24Vdc supply voltage. Suitable for use in environments with ambient air temperatures ranging from 0 to +55°C, it offers a degree of protection rated at IP65. The SLPR25-1110AP8 has a net width of 28mm, a height of 1108mm, and a depth of 26mm. It is designed with a 25mm beam spacing/pitch and can detect objects within a sensing distance of 10cm to 7m. The unit includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for fault indication, alongside one digital input (10Vdc-30Vdc; 30mA) for EDM and one digital input (10Vdc-30Vdc) for reset functions. Its response time is 17ms / 0.017s.
