SLSP14-1500Q88 Banner Safety Light Curtains
Part#:SLSP14-1500Q88
Alt. Part#:73372
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 8-pin M12 Connectors; Emitter: No test input
Product Details
- Weight 9171.63024 g
- Country Of Origin MX
- Vibration 10-55 Hz at 0.35 mm
- External Monitoring Device 1 or 2 Channel
- Reduced Resolution Yes
- Resolution (mm) 14
- Auxiliary Output Yes
- Feature: Integral Muting No
- Connector Type M12
- Recovery Time 33-220 / 109-800
- Scan Code Selectable
- Test Input No
- Safety Level Type 4
- Fixed Blanking Yes
- Short Protection Yes
- Feature: End-to-End Sensing No
- low-profile No
- Housing Finish Yellow Polyester
- PL Rating Ple
- Fault Output No
- Overall Length (mm) 1569
- Operating Temperature 0 to +55 deg. C; RH 95%
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Defined Area Height (mm) 1500
- Operating Voltage 24 V dc +/- 15%
- Electrical Safety Class III
- Supply Current 375 mA max.
- Primary Housing Material Aluminum
- IP Rating IP65
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Response Time 48
- OSSD Rating 24 V dc at 0.5 A each
- Dimensions WxD (mm) 36 x 45.2
- Operating Distance (m) 0.1 - 6
- System Type Emitter/Receiver Pair
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-1500Q88 on Powermatic Associates is $5,784.00. Order now.
About the product

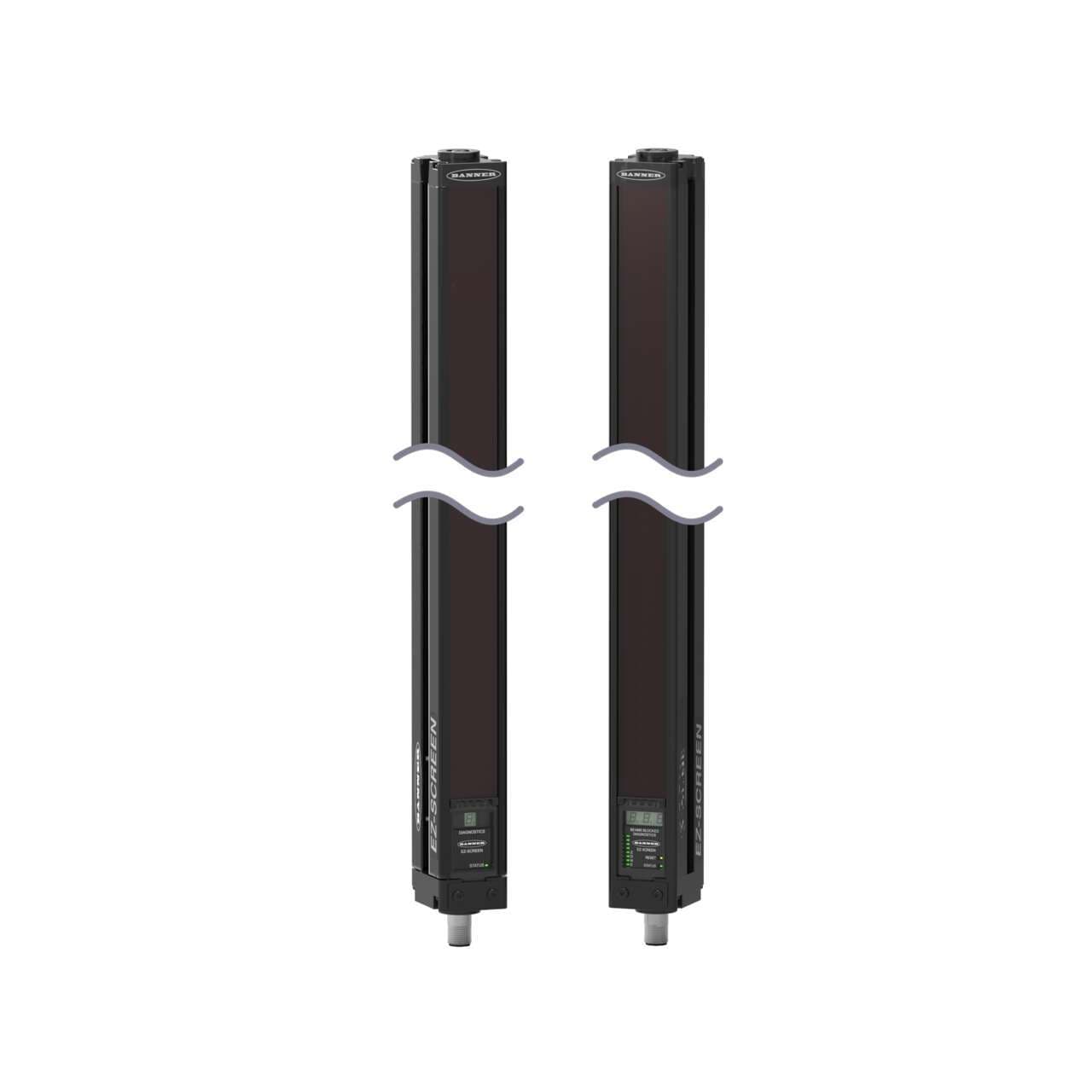

Banner Engineering SLSP14-1500Q88 is a safety light curtain from the 14/30 series designed for finger detection with a resolution of 14mm. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a protective height of 1500mm and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The SLSP14-1500Q88 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and is capable of sensing distances from 10cm up to 6m. The light curtain emits infrared light at a wavelength of 850 nm and has a beam spacing/pitch of 14mm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The response time of the device is 48ms / 0.048 s. The housing is colored yellow.
SLSP14-1500Q88 Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SLSP14-1500Q88 Banner
$5,784.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$5,784.00
$5,784.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SLSP14-1500Q88 with other Safety Light Curtains products
Weight
Country Of Origin
Vibration
External Monitoring Devic...
Reduced Resolution
Resolution (mm)
Auxiliary Output
Feature: Integral Muting
Connector Type
Recovery Time
Selected product
SLSP14-1500Q88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1500 mm (59.1 in); Housing Leng...
Weight9171.63024 g
Country Of OriginMX
Vibration10-55 Hz at 0.35 mm
External Monitoring Device1 or 2 Channel
Reduced ResolutionYes
Resolution (mm)14
Auxiliary OutputYes
Feature: Integral MutingNo
Connector TypeM12
Recovery Time33-220 / 109-800
SLSP30-1200Q88
Banner
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1200 mm (47.2 in); Housing Len...
Weight7892.5008 g
Country Of OriginMX
Vibration-
External Monitoring Device1 or 2 Channel
Reduced Resolution-
Resolution (mm)-
Auxiliary Output-
Feature: Integral Muting-
Connector TypeM12
Recovery Time-
SLSP14-450P88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Lengt...
Weight562.45408 g
Country Of OriginMX
Vibration-
External Monitoring Device1 or 2 Channel
Reduced Resolution-
Resolution (mm)-
Auxiliary Output-
Feature: Integral Muting-
Connector TypeM12 Pigtail (Yellow)
Recovery Time-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SLSP14-1500Q88?
Purchase the SLSP14-1500Q88 from Powermatic Associates at the price of $5,784.00. Order today.
Out if stock but available for backorder.
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 8-pin M12 Connectors; Emitter: No test input
