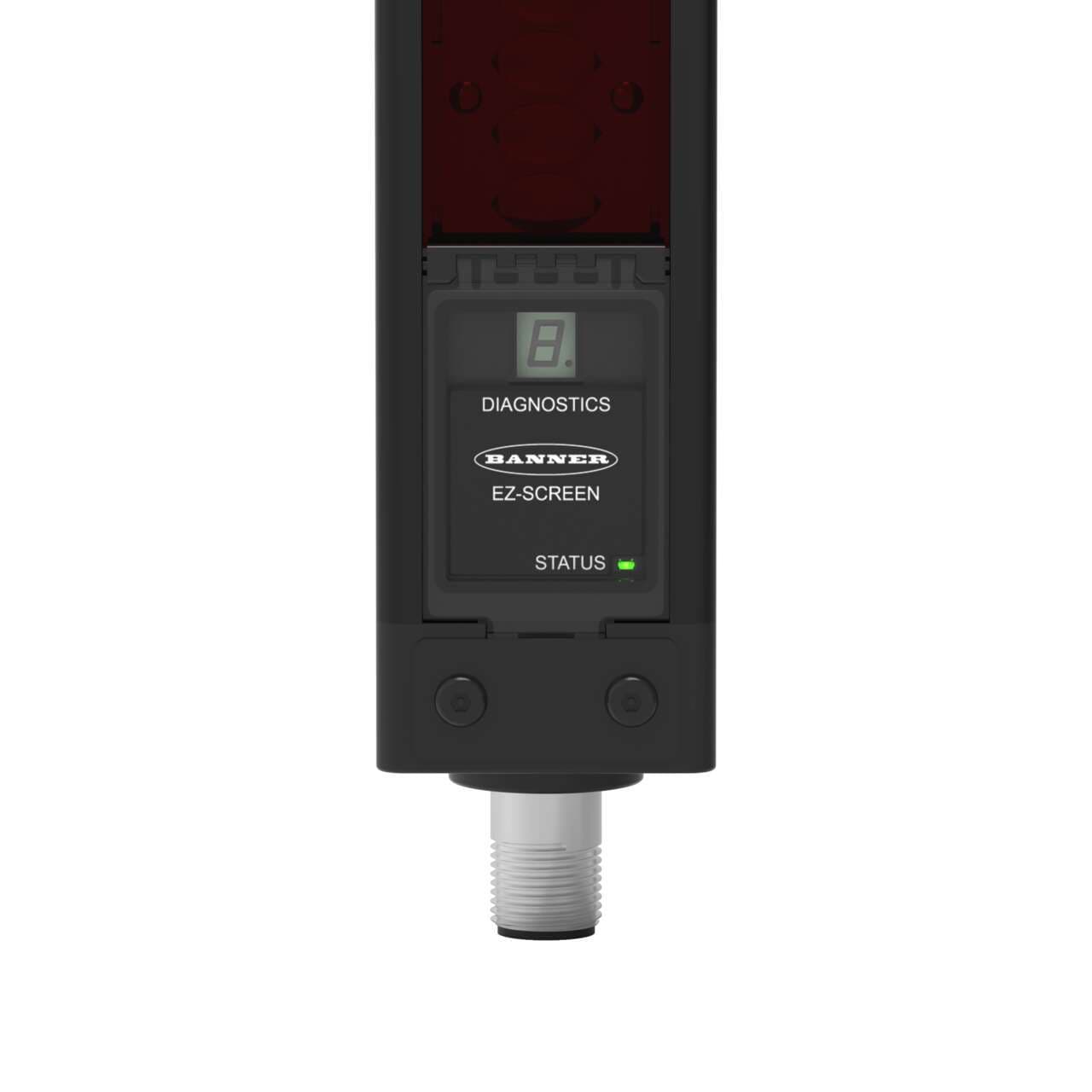

SLSP30-2400Q88 Banner Safety Light Curtains
Part#:SLSP30-2400Q88
Alt. Part#:82077
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 2400 mm (94.5 in); Housing Length: 2468 mm (97.2 in); Connection: 8-pin M12 Connectors; Emitter: No test Input
Product Details
- Weight 11339.8 g
- Country Of Origin MX
- External Monitoring Device 1 or 2 Channel
- Safety Level Type 4
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Connector Type M12
- Operating Temperature 0 to +55 deg. C; RH 95%
- SIL Rating SIL3; CL3
- Trip/Latch Output Selectable
- Overall Length (mm) 2468
- IP Rating IP65
- PL Rating Ple
- System Type Emitter/Receiver Pair
- Feature: End-to-End Sensing No
- Primary Housing Material Aluminum
- Operating Distance (m) 0.1 - 18
- Electrical Safety Class III
- Test Input No
- Number of Pins (Receiver/Emitter) 8
- Shock 10g at 16ms (6000 cycles)
- Fault Output No
- Feature: ESD Safe No
- Defined Area Height (mm) 2400
- Housing Finish Yellow Polyester
- Short Protection Yes
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
- low-profile No
- Fixed Blanking Yes
- Resolution (mm) 30
- Vibration 10-55 Hz at 0.35 mm
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Recovery Time 25-152 / 81-495
- Reduced Resolution Yes
- Auxiliary Output Yes
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Response Time 40
- Supply Current 375 mA max.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-2400Q88 on Powermatic Associates is $7,275.00. Order now.
About the product
Banner Engineering SLSP30-2400Q88 is a safety light curtain designed for hand detection with a protective height of 2400mm and a resolution of 30mm. This component of the 14/30 series features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is pre-equipped with an 8-pin Euro-style M12 connector for easy connection. The device operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSP30-2400Q88 measures 36mm in width, 2468mm in height, and 46mm in depth, and it has a yellow housing. It offers a sensing distance between 10cm and 18m, utilizing infrared light with a wavelength of 850 nm. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, alongside one digital input (10Vdc-30Vdc) for EDM input and one for RESET input. Its response time is 40ms / 0.04 s, and it features a 30mm beam spacing/pitch.
