SLSP30-1500P55NT Banner Safety Light Curtains
Part#:SLSP30-1500P55NT
Alt. Part#:97144
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 5-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 9434.7136 g
- Country Of Origin MX
- Connector Type M12 Pigtail (Yellow)
- Resolution (mm) 30
- System Type Emitter/Receiver Pair
- Feature: Integral Muting No
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Primary Housing Material Aluminum
- Number of Pins (Receiver/Emitter) 5,5
- Defined Area Height (mm) 1500
- IP Rating IP65
- Electrical Safety Class III
- Supply Current 375 mA max.
- External Monitoring Device No
- Operating Distance (m) 0.1 - 18
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Overall Length (mm) 1569
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Test Input No
- Fixed Blanking Yes
- Recovery Time 25-152 / 81-495
- Fault Output No
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Short Protection Yes
- Reduced Resolution Yes
- Housing Material Aluminum; PBT; Acrylic
- Feature: ESD Safe No
- Safety Level Type 4
- Housing Finish Yellow Polyester
- Response Time 27
- Trip/Latch Output Selectable
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Auxiliary Output No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-1500P55NT on Powermatic Associates is $4,822.00. Order now.
About the product

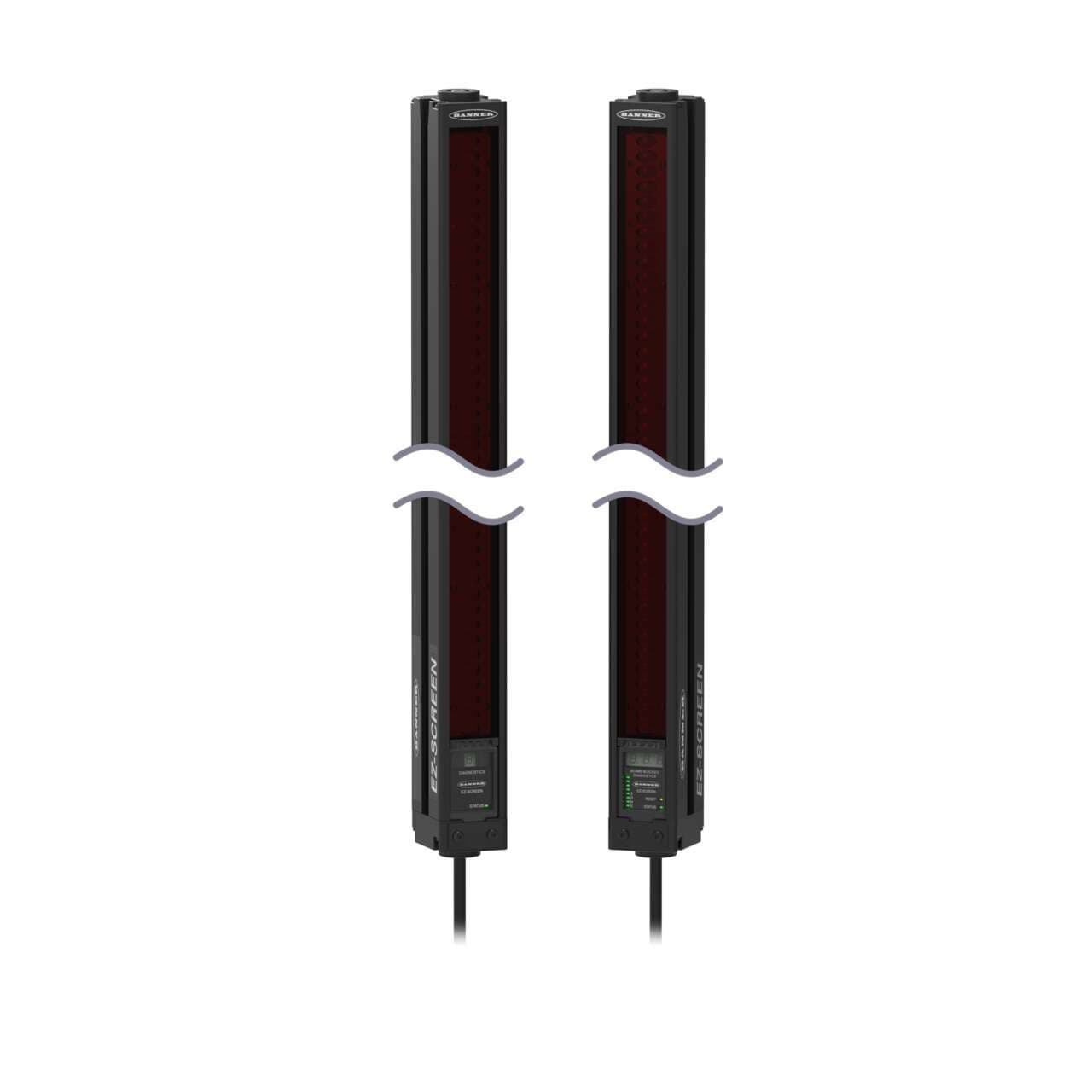

Banner Engineering SLSP30-1500P55NT is a safety light curtain from the 14/30 series designed with a test input no test / no ground wire. It features an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. This part is pre-wired with a 300mm pigtail that terminates with a 5-pin Euro-style M12 connector. It offers a protective height of 1500mm and comes in a yellow housing. The SLSP30-1500P55NT operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection. The dimensions include a net width of 36mm, a net height of 1569mm, and a net depth of 46mm. The light curtain features a 30mm beam spacing/pitch and provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output. It has a sensing distance ranging from 10cm to 18m and uses infrared (IR) light with a wavelength of 850 nm. The resolution is set at 30mm for hand detection. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM input and one for RESET input, with a response time of 27ms / 0.027 s.
SLSP30-1500P55NT Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
SLSP30-1500P55NT Banner
$4,822.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$4,822.00
$4,822.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
