SLSP30-450P88 Banner Safety Light Curtains
Part#:SLSP30-450P88
Alt. Part#:73962
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

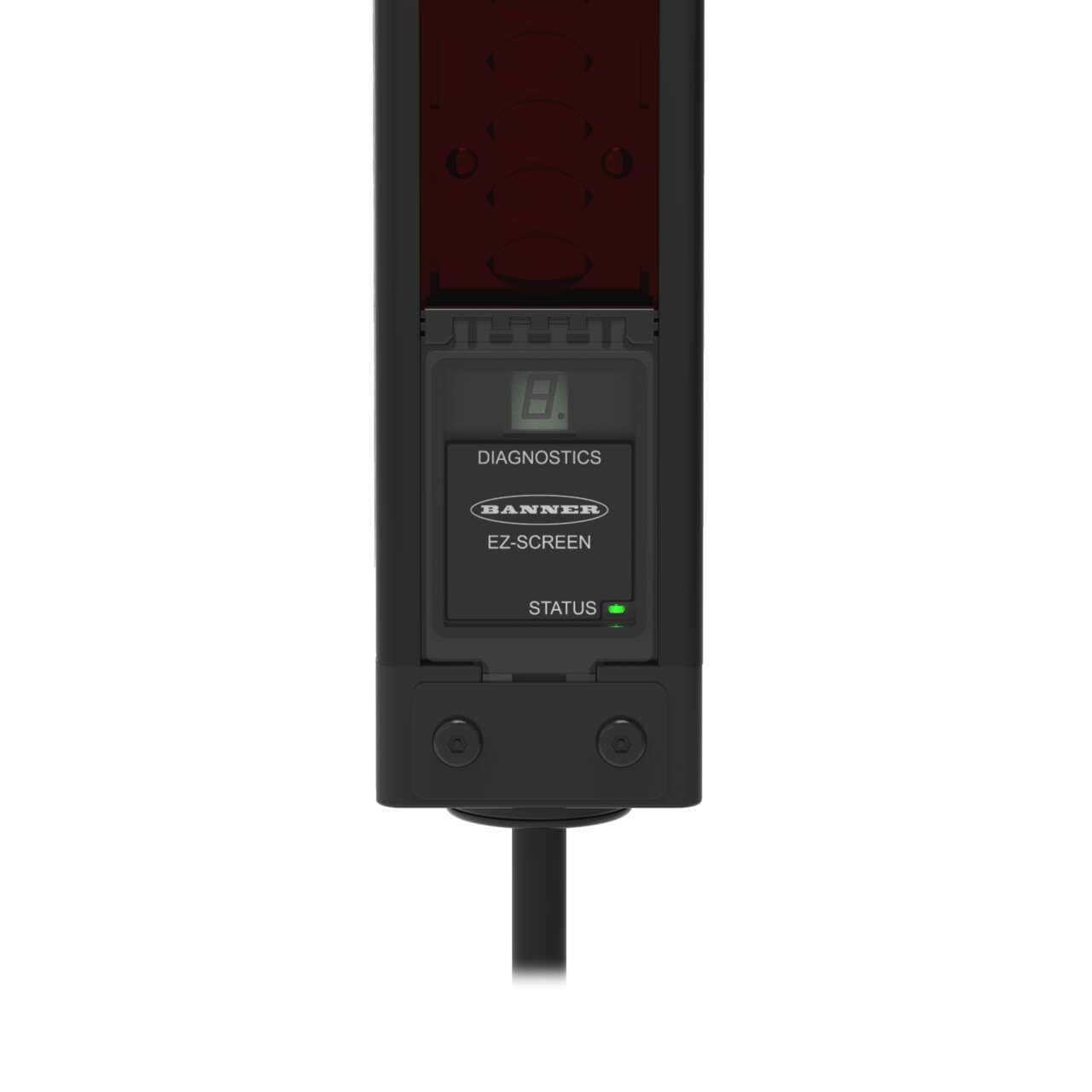

EZ-SCREEN Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 707.60352 g
- Country Of Origin MX
- Overall Length (mm) 522
- Operating Distance (m) 0.1 - 18
- Shock 10g at 16ms (6000 cycles)
- OSSD Rating 24 V dc at 0.5 A each
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- Resolution (mm) 30
- Fault Output No
- Feature: ESD Safe No
- low-profile No
- Fixed Blanking Yes
- Reduced Resolution Yes
- Vibration 10-55 Hz at 0.35 mm
- Connector Type M12 Pigtail (Yellow)
- IP Rating IP65
- Response Time 13
- Auxiliary Output Yes
- Dimensions WxD (mm) 36 x 45.2
- PL Rating Ple
- Electrical Safety Class III
- Housing Material Aluminum; Zinc; Acrylic
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Recovery Time 25-152 / 81-495
- System Type Emitter/Receiver Pair
- Feature: End-to-End Sensing No
- Defined Area Height (mm) 450
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Test Input No
- Safety Level Type 4
- Operating Voltage 24 V dc +/- 15%
- SIL Rating SIL3; CL3
- Supply Current 375 mA max.
- External Monitoring Device 1 or 2 Channel
- Number of Pins (Receiver/Emitter) 8
- Short Protection Yes
- Trip/Latch Output Selectable
- Feature: Integral Muting No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP30-450P88 on Powermatic Associates is $1,913.00. Order now.
About the product
Banner Engineering SLSP30-450P88 is a safety light curtain from the 14/30 series designed for hand detection with a resolution of 30mm. This unit comprises an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It features a pre-wired 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height is 450mm, and the housing is colored yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP30-450P88 is IP65 rated, indicating a high level of protection against dust and water. The net dimensions are 36mm in width, 522mm in height, and 46mm in depth. The light curtain offers a sensing distance between 10cm and 18m with a 30mm beam spacing/pitch. It emits infrared light with a wavelength of 850 nm. The device includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The response time is 13ms.
