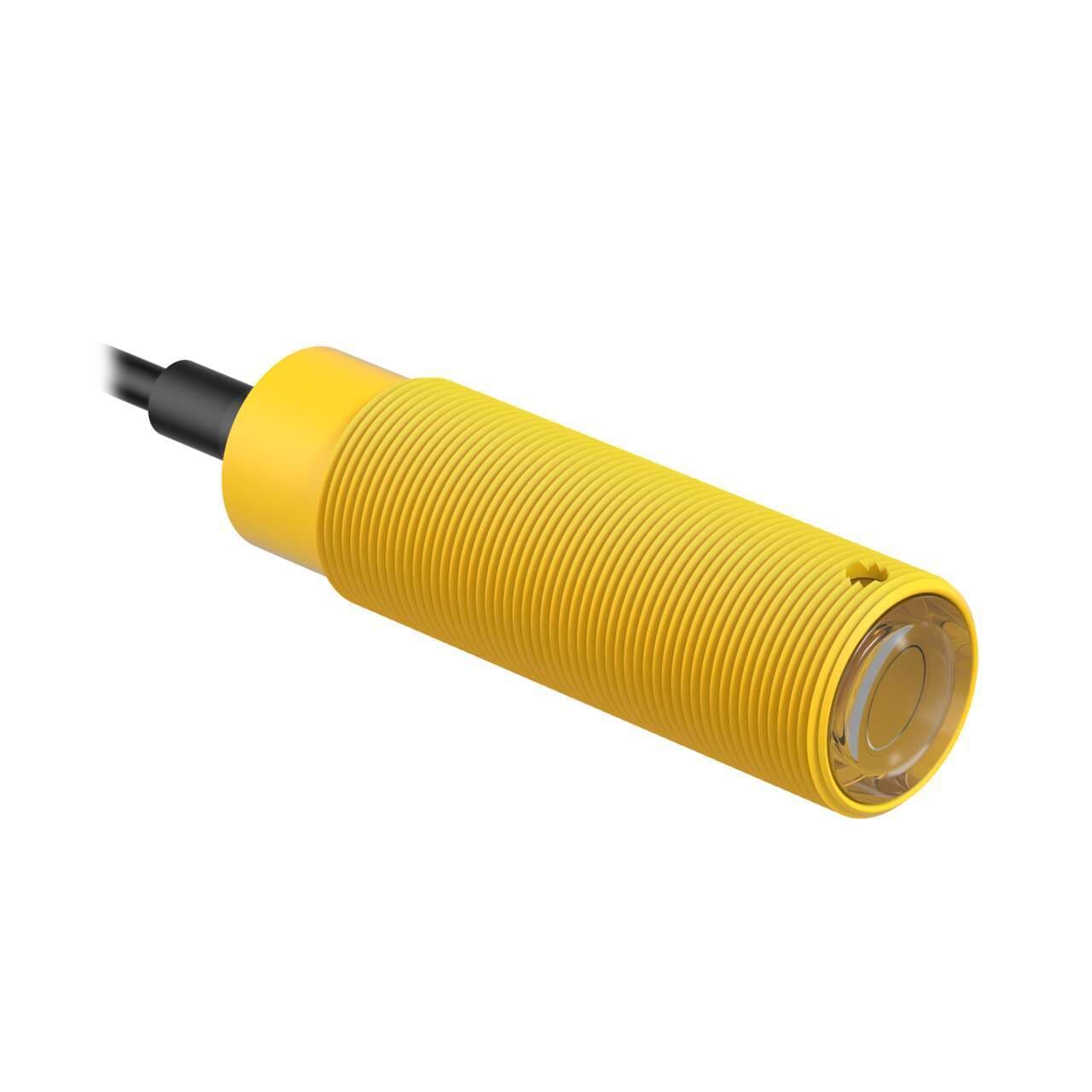

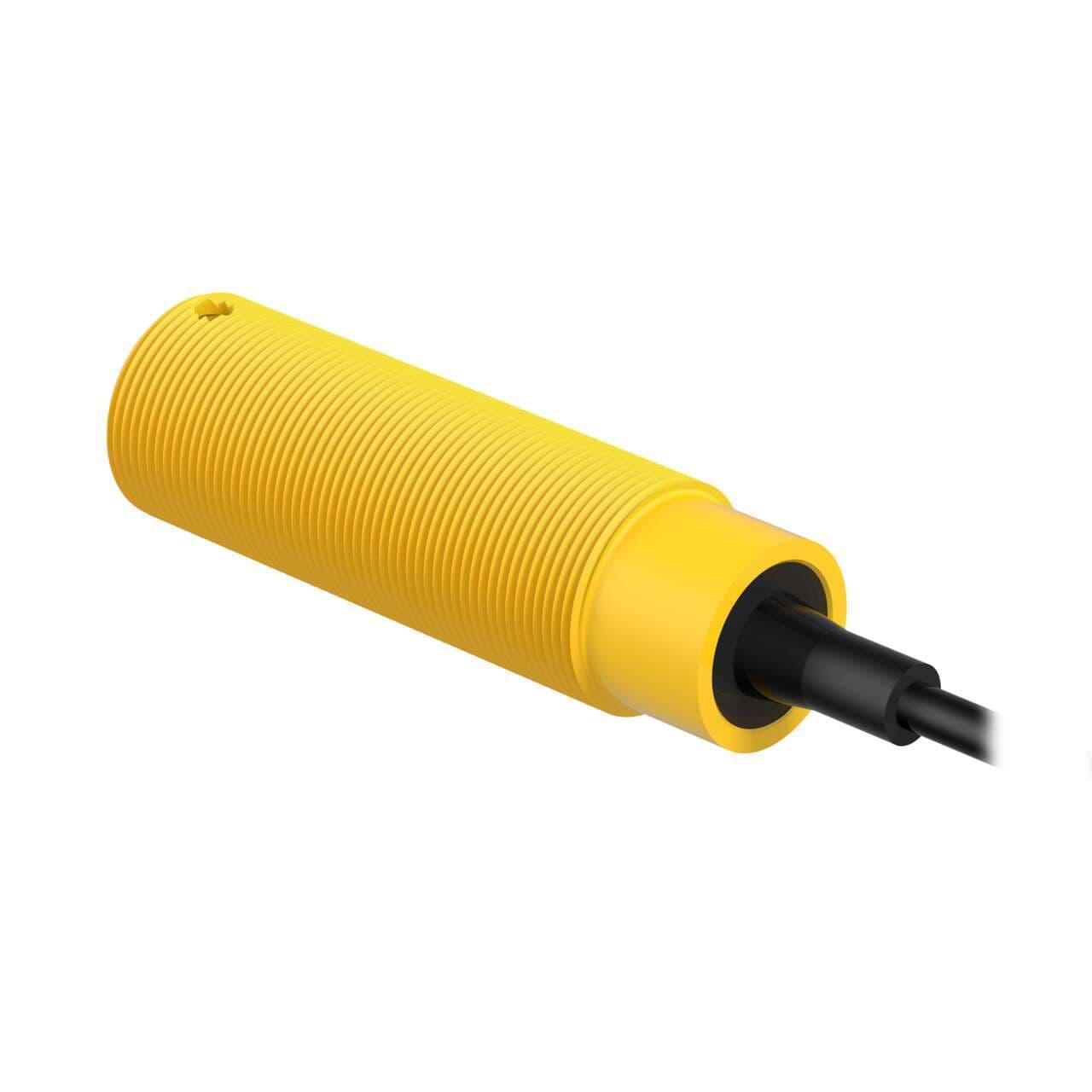

SM30PRL Banner Proximity Sensors

Product Details

• Weight
  230.878328 g
• Country Of Origin
  MX
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Cylindrical threaded/barrel
• Degree of protection
  IP67 NEMA 6P
• Order code / Manufacturer SKU
  27291
• Sub-range name
  SM30 series
• Light Color
  Infrared (IR)
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Main function
  Sensor (Photo-electric)
• Design
  through-beam system / opposed mode "A" modulation frequency washdown rated
• Wavelength
  880 nm
• Operating mode
  Light-ON Dark-ON
• Product series / family name
  EZ-BEAM series
• Sensing distance
  150m
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Material
  thermoplastic housing
• Ambient air temperature for operation
  -40...+70 °C
• Primary brand
  Banner Engineering
• Functions
  Photo-electric sensor receiver red LED (power ON)
Thread size
M30
Response time
10ms / 0.01 s
Compliant with standard(s)
cURus CSA CE
Max Sensing Distance (mm)
150000
Delay at Power-up (ms)
N/A
Indicator
LEDs
Cable Length (m)
2
Outputs
Bipolar (NPN & PNP)
Max Op. Temp. (°C)
70
Lens Material
Acrylic
Feature: Chemical Resistant
No
Input/Output
Discrete
Output response time (ms)
10
Adjustments
N/A
DeviceNet
No
Power
DC
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6P
Feature: Hazardous Area
No
Connection
Cable
Power Supply/Supply Voltage
10-30 V dc
Sensing Mode (General)
Opposed
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Audible
No
Housing Style
Barrel
Quick Disconnect Type
No QD
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
IO Link
No
Sensing Mode (Detailed)
Receiver
Special Feature: Remote Teach
No
Repeatability (µs)
1000
Opposed Mode Emitter/Receiver
Receiver
Sensing Beam
Infrared LED
Min Op. Temp. (°C)
-40
Number of Pins
4
Feature: Timing (Hold/Delay)
No
Primary Housing Material
Thermoplastic
Operation
Light/Dark Operate
IP Rating
IP67
Feature: Encapsulated
Yes
