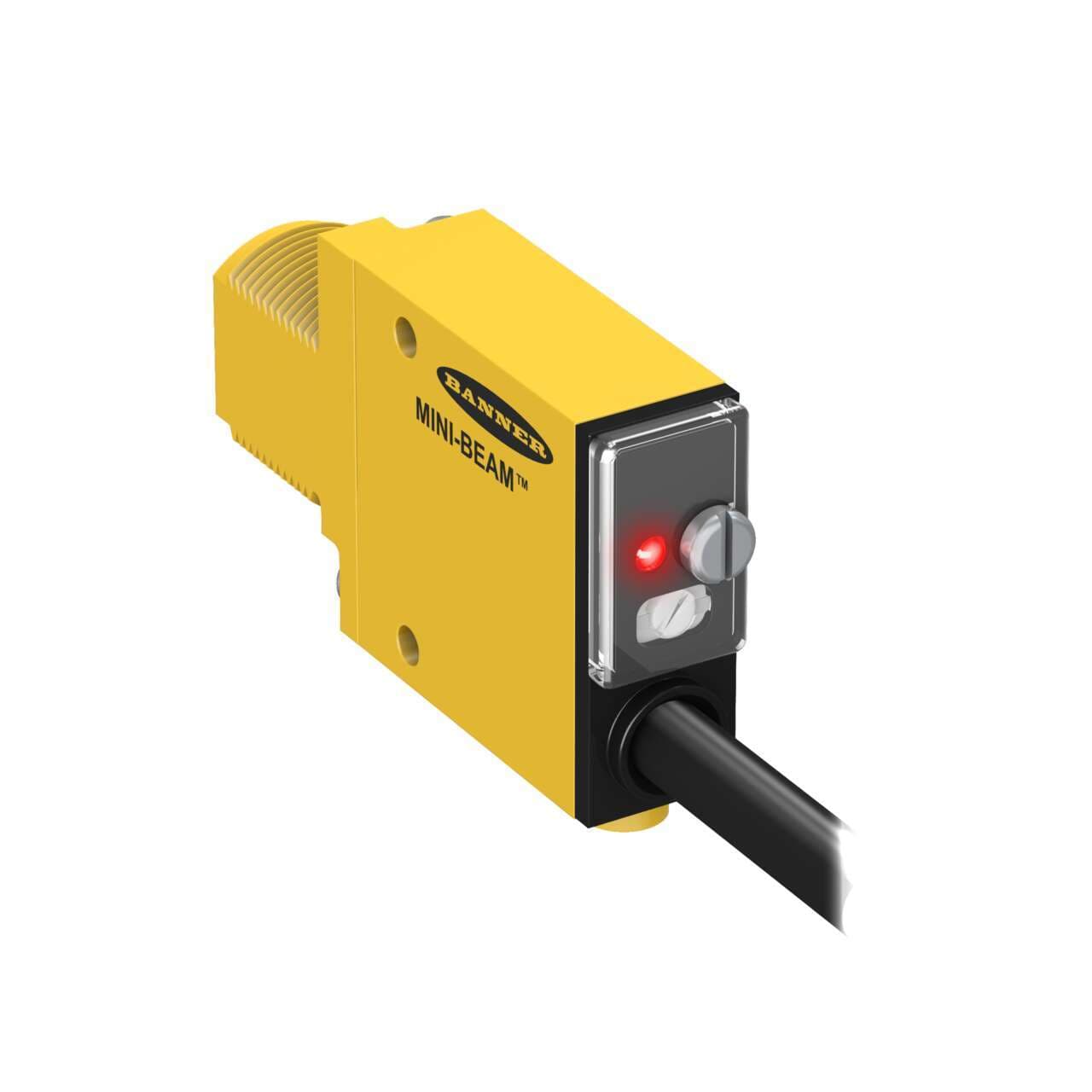

SM312CVBQDP Banner Proximity Sensors
Part#:SM312CVBQDP
Alt. Part#:49073
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Visible Blue 475 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 81.64656 g
- Country Of Origin US
- Max Sensing Distance (mm) 16
- Operation Light/Dark Operate
- Repeatability (µs) 300
- Feature: Audible No
- Power DC
- Special Feature: Intrinsically Safe No
- Primary Housing Material Thermoplastic
- Output response time (ms) 1
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Convergent
- Power Supply/Supply Voltage 10-30 V dc
- Outputs Bipolar (NPN & PNP)
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Sensing Mode (General) Proximity
- Special Feature: Remote Teach No
- Number of Pins 4
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Hazardous Area No
- Sensing Beam Visible Blue LED
- Connection Pigtail QD
- Lens Material Acrylic
- Indicator LEDs
- Barrel Diameter (mm) 18
- Quick Disconnect Type M12 (Euro)
- IP Rating IP67
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Adjustments Potentiometer
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312CVBQDP on Powermatic Associates is $240.00. Order now.
About the product
Banner Engineering SM312CVBQDP is a photo-electric sensor from the SM312 series, designed with a convergent mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted using an M18 threaded mount. The sensor is capable of functioning within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor), with a sensing distance of 16mm and a visible blue light color. The response time of the sensor is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
