SM312LVMHS-50248 Banner Proximity Sensors

Name: SM312LVMHS-50248
Brand: Banner
Price: 295 USD
Availability: BackOrder

SM312LVMHS-50248 on Powermatic Associates

Part#:SM312LVMHS-50248

Alt. Part#:50248

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SM312LVMHS-50248 5-15 V CABLED 300 MS RESPONSE

Product Details

Weight
145.14944 g
Country Of Origin
US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312LVMHS-50248 on Powermatic Associates is $295.00. Order now.

About the product

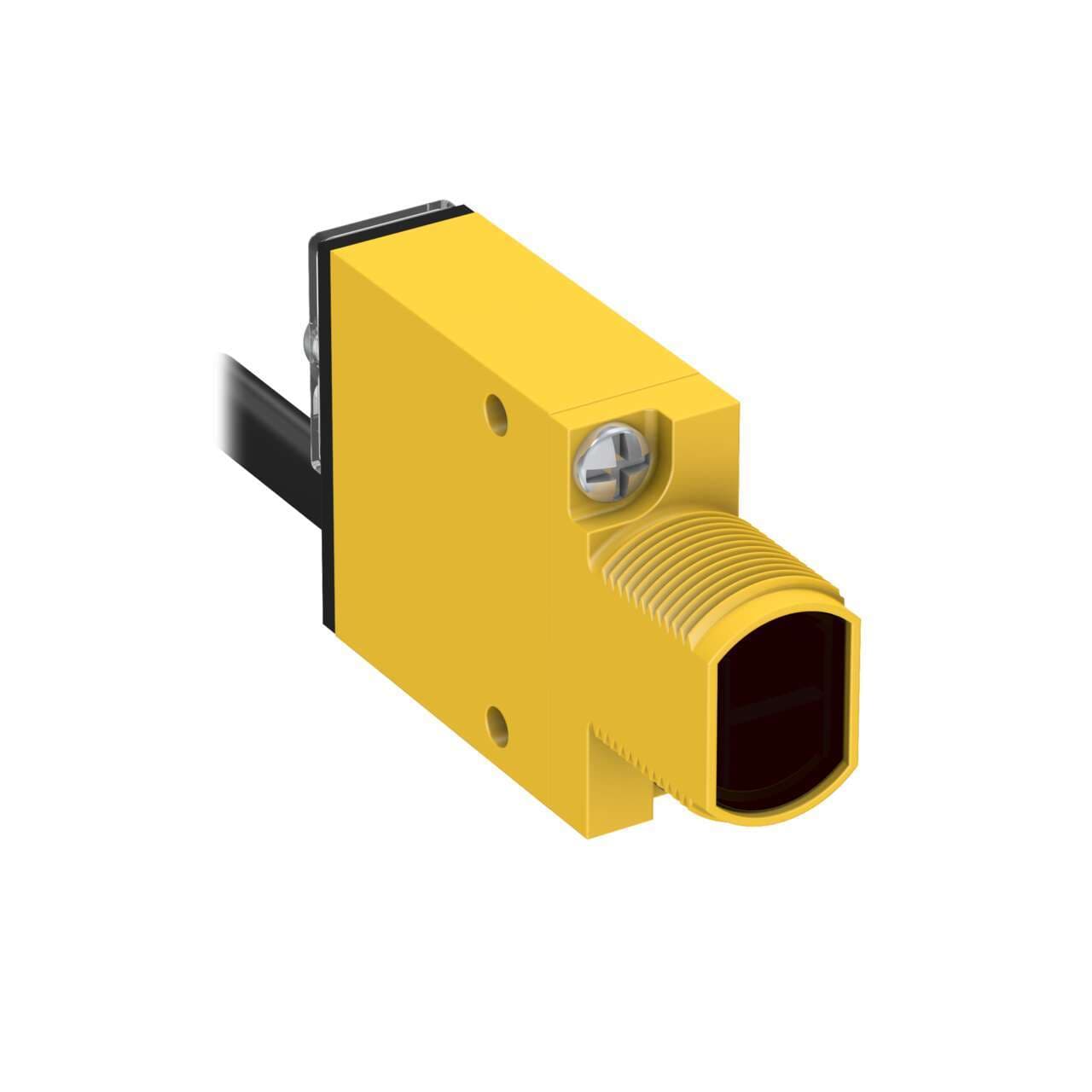

Banner Engineering SM312LVMHS-50248 is a photo-electric sensor from the SM312 series designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 5Vdc-15Vdc, with a nominal 12Vdc, and is mounted using an M18 threaded mount. The sensor can operate in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. It has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). The sensing distance is up to 5m, with a visible red light color, a response time of 0.3ms / 0.0003 s, and operates in both Light-ON and Dark-ON modes. The wavelength of the light is 650 nm.

SM312LVMHS-50248 Related Documents

69943.pdf

$295.00
