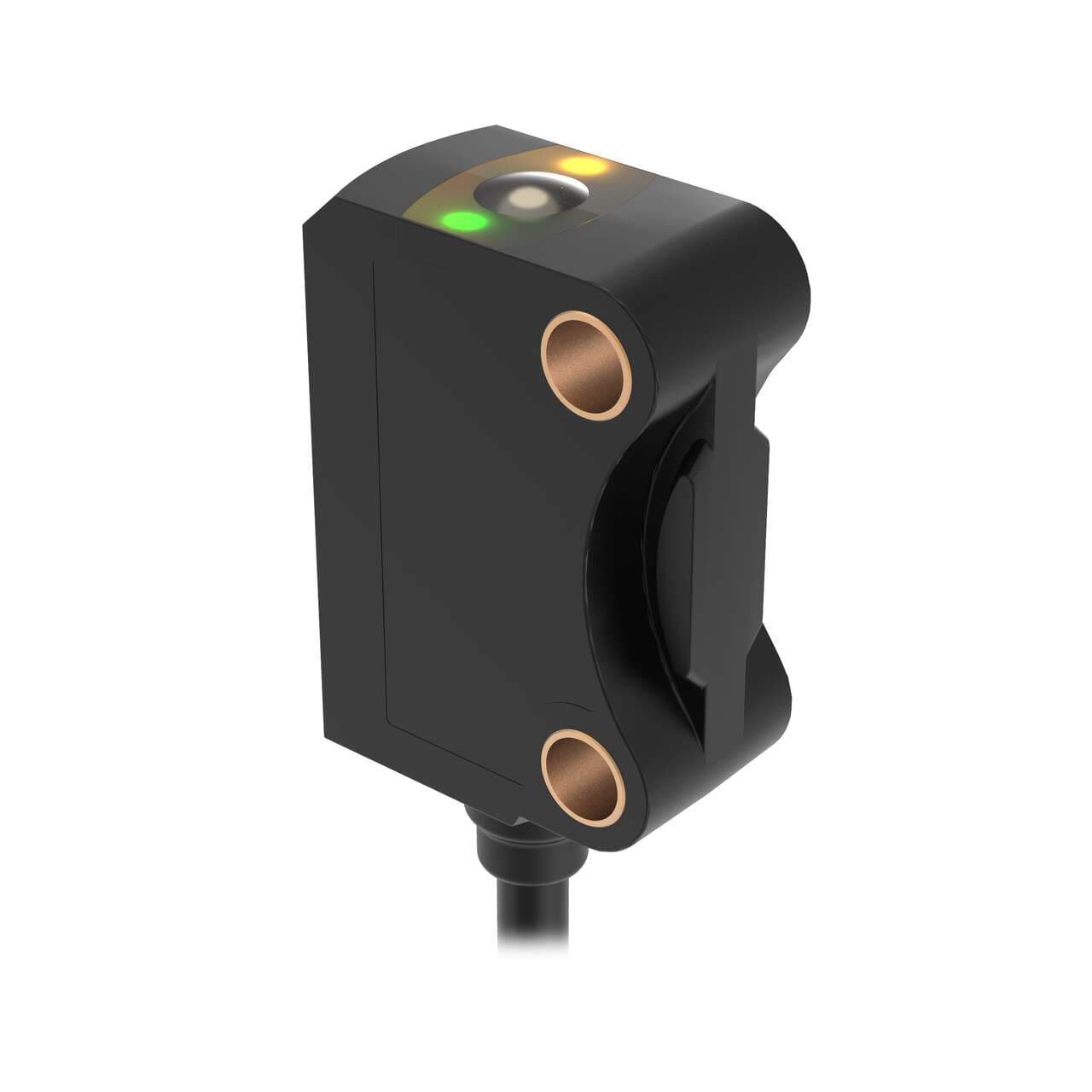

VS8EAPLLP Banner Proximity Sensors
Part#:VS8EAPLLP
Alt. Part#:803431
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Laser Polarized Retro Reflective; Range: 0.1 m to 2 m; Input: 10-30 V dc; Output: PNP; 4-conductor 2 m Cable
Product Details
- Weight 34.0194 g
- Country Of Origin DE
- Functions Polarized class 1 Laser photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Light Color Visible red
- Compliant with standard(s) cULus CE
- Sub-range name VS8 series
- Shape Rectangular
- Wavelength 655 nm
- Degree of protection IP67
- Ambient air temperature for operation -20...+50 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing PMMA lns. PUR (cable)
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 803431
- Sensing distance 10cm...2m
- Response time 0.5ms / 0.0005 s
- Primary Housing Material PUR
- Outputs PNP
- Indicator LEDs
- Sensing Mode (General) Retroreflective
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- DeviceNet No
- Housing Style Rectangular
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 655
- Number of Pins 4
- Feature: Audible No
- Power DC
- Max Op. Temp. (°C) 50
- Special Feature: Intrinsically Safe No
- NEMA Rating N/A
- Feature: Chemical Resistant No
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Special Feature: Remote Teach Yes
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -20
- Output response time (ms) 0.5
- Opposed Mode Emitter/Receiver N/A
- Feature: Encapsulated No
- Input/Output Discrete
- Adjustments Teach Button
- IO Link No
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Connection Cable
- Repeatability (µs) N/A
- Lens Material PMMA
- Small Visible Spot Laser
- Max Sensing Distance (mm) 2000
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EAPLLP on Powermatic Associates is $194.00. Order now.
About the product
Banner Engineering VS8EAPLLP is a polarized Class 1 laser photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity and offers a degree of protection rated at IP67, making it suitable for various industrial environments. This sensor operates within an ambient air temperature range of -20 to +50 °C and offers both Light-ON and Dark-ON operating modes. It is equipped with a single digital output (PNP transistor) and boasts a rapid response time of 0.5ms / 0.0005 s. The VS8EAPLLP comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads, ensuring easy installation. Its rectangular shape and visible red light, with a wavelength of 655 nm, facilitate precise detection. Operating on a supply voltage of 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal), this sensor is designed in a retro-reflective mode with TEACH functionality. It has a sensing distance ranging from 10cm to 2m and is part of the VS8 series.
