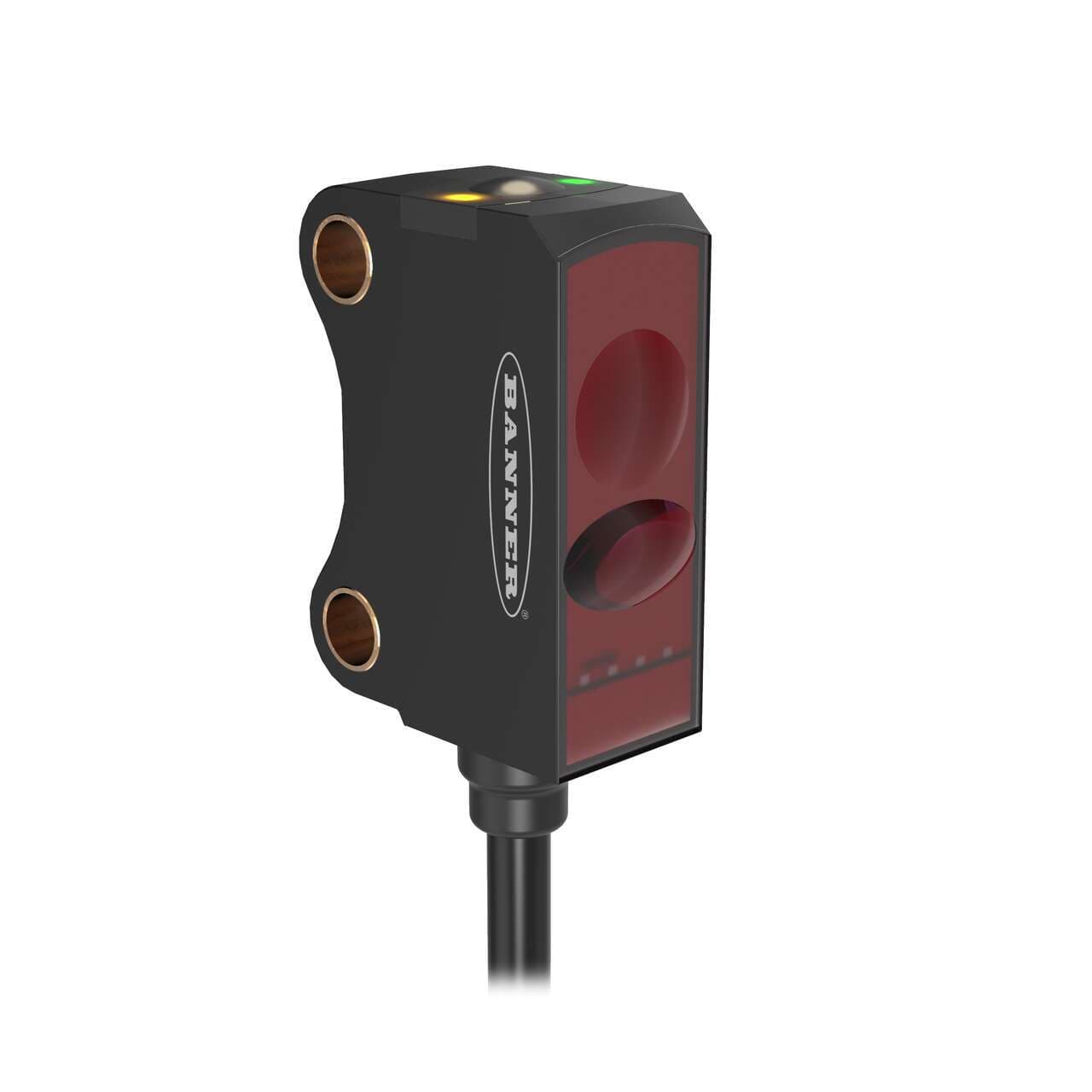

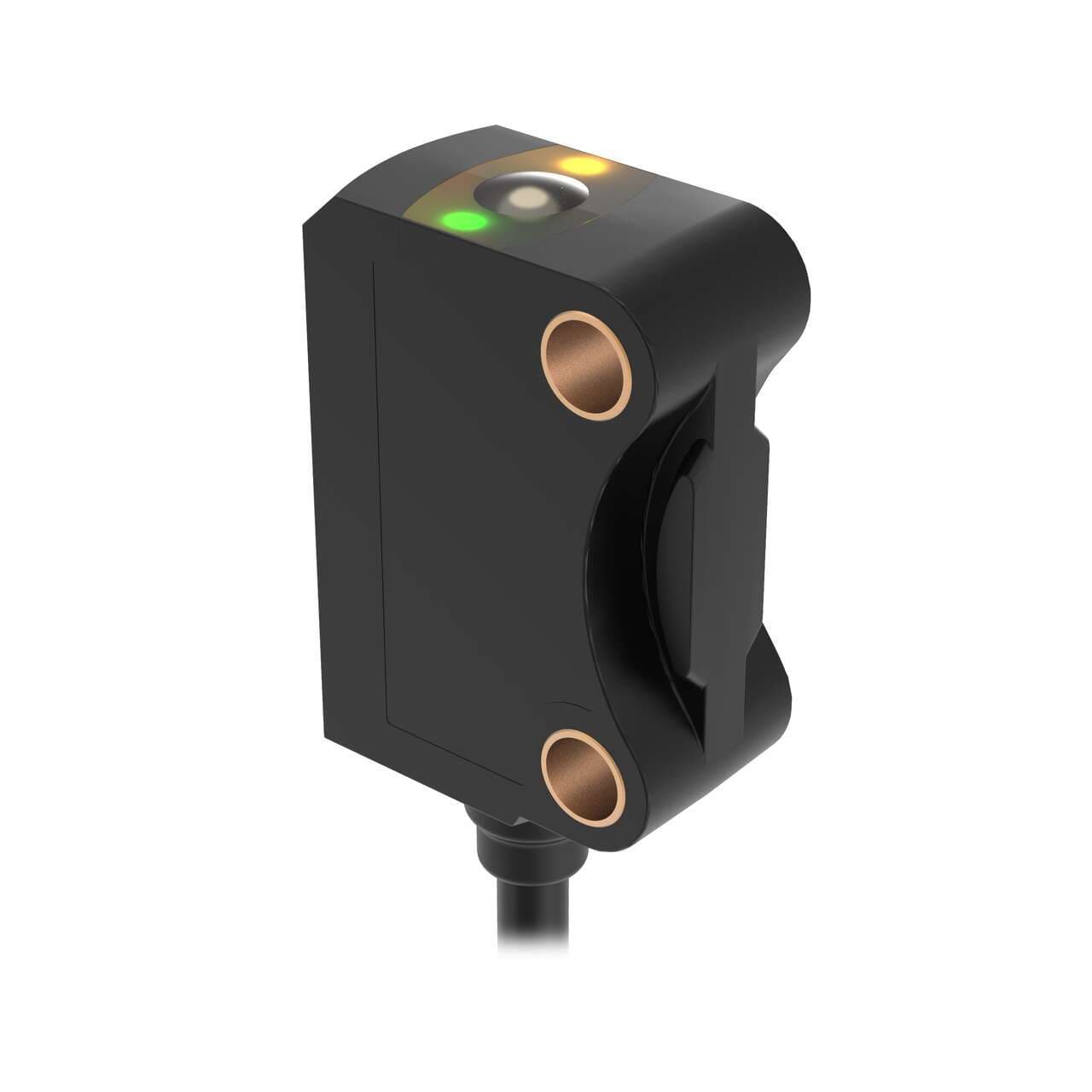

VS8EAPAF70Q5 Banner Proximity Sensors
Part#:VS8EAPAF70Q5
Alt. Part#:803551
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Adjustable Field; Range: 5 mm to 70 mm; Input: 10-30 V dc; Output: PNP; 200 mm 4-pin M12 Pigtail QD
Product Details
- Weight 27.21552 g
- Country Of Origin DE
- Main function Sensor (Photo-electric)
- Functions Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Sub-range name VS8 series
- Design background suppression system
- Wavelength 650 nm
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing PMMA lns. PUR (cable)
- Primary brand Banner Engineering
- Sensing distance 5...70mm
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cULus CE
- Connection type Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
- Order code / Manufacturer SKU 803551
- Light Color Visible red
- Degree of protection IP67
- Ambient air temperature for operation -20...+60 °C
- Response time 0.5ms / 0.0005 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Small Visible Spot LED
- Max Op. Temp. (°C) 60
- IP Rating IP67
- DeviceNet No
- Power DC
- Special Feature: Intrinsically Safe No
- NEMA Rating N/A
- IO Link No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Delay at Power-up (ms) 300
- Primary Housing Material PUR
- Min Op. Temp. (°C) -20
- Barrel Diameter (mm) N/A
- Connection Pigtail QD
- Sensing Beam Wavelength 650
- Indicator LEDs
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Number of Pins 4
- Feature: Audible No
- Housing Style Rectangular
- Output response time (ms) 0.5
- Sensing Beam Visible Red LED
- Adjustments Teach Button
- Feature: Encapsulated No
- Outputs PNP
- Special Feature: Water Detection No
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Special Feature: Remote Teach Yes
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 70
- Operation Light/Dark Operate
- Lens Material PMMA
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EAPAF70Q5 on Powermatic Associates is $224.00. Order now.
About the product
Banner Engineering VS8EAPAF70Q5 is a sensor (photo-electric) featuring a thermoplastic housing with a polymethyl methacrylate (PMMA) lens and a polyurethane (PUR) cable. It offers a degree of protection rated at IP67, making it suitable for operation in ambient air temperatures ranging from -20 to +60°C. This sensor operates in both Light-ON and Dark-ON modes and includes 1 x digital output (PNP transistor) with a response time of 0.5ms / 0.0005 s. It comes pre-wired with a 7.5" / 200mm pigtail terminated with a 4-pin Euro-style M12 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 650 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It is designed with a background suppression system and TEACH mode for enhanced functionality. The sensing distance of this adjustable-field photo-electric sensor ranges from 5 to 70mm, and it is part of the VS8 series.
