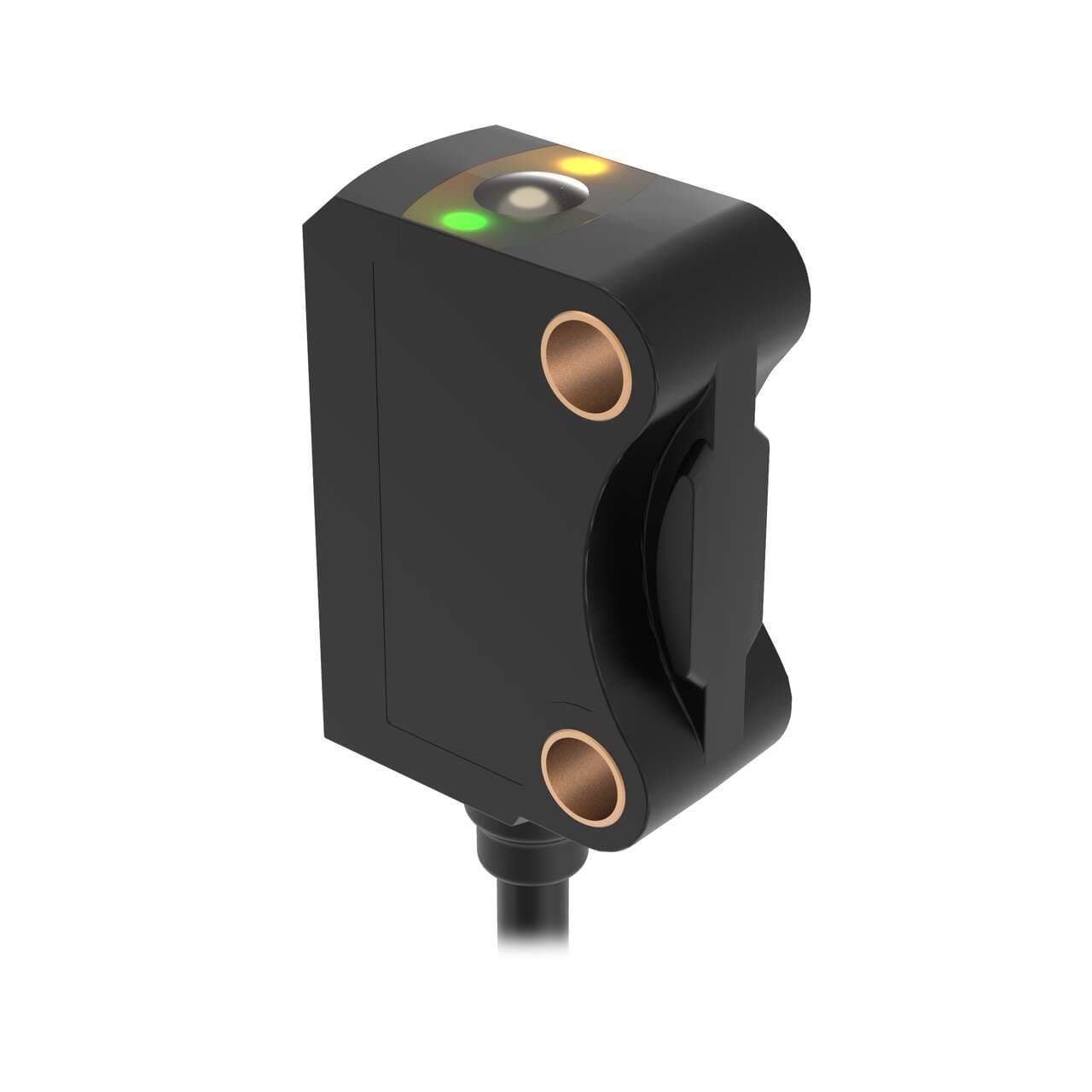

VS8EAPLAF70Q Banner Proximity Sensors
Part#:VS8EAPLAF70Q
Alt. Part#:803425
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Laser Adjustable Field; Range: 6 mm to 70 mm; Input: 10-30 V dc; Output: PNP; 200 mm 4-pin M8 Pigtail QD
Product Details
- Weight 10.432616 g
- Country Of Origin DE
- Ambient air temperature for operation -20...+50 °C
- Order code / Manufacturer SKU 803425
- Main function Sensor (Photo-electric)
- Design background suppression system
- Shape Rectangular
- Response time 0.5ms / 0.0005 s
- Compliant with standard(s) cULus CE
- Sub-range name VS8 series
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing PMMA lns. PUR (cable)
- Primary brand Banner Engineering
- Functions Adjustable-field class 1 Laser photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Wavelength 655 nm
- Digital outputs 1 x digital output (PNP transistor)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 5...70mm
- Connection type Pre-wired with 7.5" / 20cm pigtail terminated with 4-pin Pico-style M8 connector
- Degree of protection IP67
- Sensing Beam Visible Red Laser
- Outputs PNP
- Special Feature: Remote Teach Yes
- Barrel Diameter (mm) N/A
- IO Link No
- Small Visible Spot Laser
- Primary Housing Material PUR
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Number of Pins 4
- Adjustments Teach Button
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Sensing Beam Wavelength 655
- Indicator LEDs
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Connection Pigtail QD
- Delay at Power-up (ms) 300
- Opposed Mode Emitter/Receiver N/A
- Laser Classification Class 1
- Quick Disconnect Type M8 (Pico)
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Feature: Encapsulated No
- Output response time (ms) 0.5
- NEMA Rating N/A
- Feature: Audible No
- Power DC
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Max Sensing Distance (mm) 70
- Special Feature: Intrinsically Safe No
- Lens Material PMMA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EAPLAF70Q on Powermatic Associates is $276.00. Order now.
About the product
Banner Engineering VS8EAPLAF70Q is a photo-electric sensor constructed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens, featuring a polyurethane (PUR) cable. It offers an IP67 degree of protection, making it suitable for operation in ambient air temperatures ranging from -20 to +50°C. This sensor operates in both Light-ON and Dark-ON modes and includes 1 x digital output (PNP transistor) with a response time of 0.5ms / 0.0005 s. It comes pre-wired with a 7.5" / 20cm pigtail terminated with a 4-pin Pico-style M8 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 655 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It is designed with a background suppression system and TEACH mode, offering a sensing distance of 5...70mm. This adjustable-field Class 1 laser photo-electric sensor is part of the VS8 series.
