VS8EANRQ Banner Proximity Sensors

Name: VS8EANRQ
Brand: Banner
Price: 183 USD
Availability: BackOrder

Part#:VS8EANRQ

Alt. Part#:803487

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VS8 Series: Laser Receiver; Range: 3 m; Input: 10-30 V dc; Output: NPN; 200 mm 4-pin M8 Pigtail QD

Product Details

Weight
18.14368 g
Country Of Origin
DE
Sensing Mode (General)
Opposed
Sensing Beam Wavelength
650
Output response time (ms)
0.5
Indicator
LEDs
Input/Output
Discrete
Min Op. Temp. (°C)
-20
Number of Pins
4
Feature: Audible
No
Housing Style
Rectangular
Operation
Light/Dark Operate
IP Rating
IP67
Barrel Diameter (mm)
N/A
Sensing Beam
Visible Red LED
Connection
Pigtail QD
Special Feature: Water Detection
No
Feature: Timing (Hold/Delay)
No
IO Link
No
Sensing Mode (Detailed)
Receiver

Quick Disconnect Type

M8 (Pico)

Repeatability (µs)

N/A

Opposed Mode Emitter/Receiver

Receiver

Max Sensing Distance (mm)

3000

Special Feature: Remote Teach

Yes

Adjustments

Teach Button

Feature: Encapsulated

Power

Power Supply/Supply Voltage

10-30 V dc

Delay at Power-up (ms)

300

Feature: Hazardous Area

Primary Housing Material

PUR

Special Feature: Intrinsically Safe

Lens Material

PMMA

DeviceNet

Outputs

NPN

Max Op. Temp. (°C)

NEMA Rating

N/A

Feature: Chemical Resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EANRQ on Powermatic Associates is $183.00. Order now.

About the product

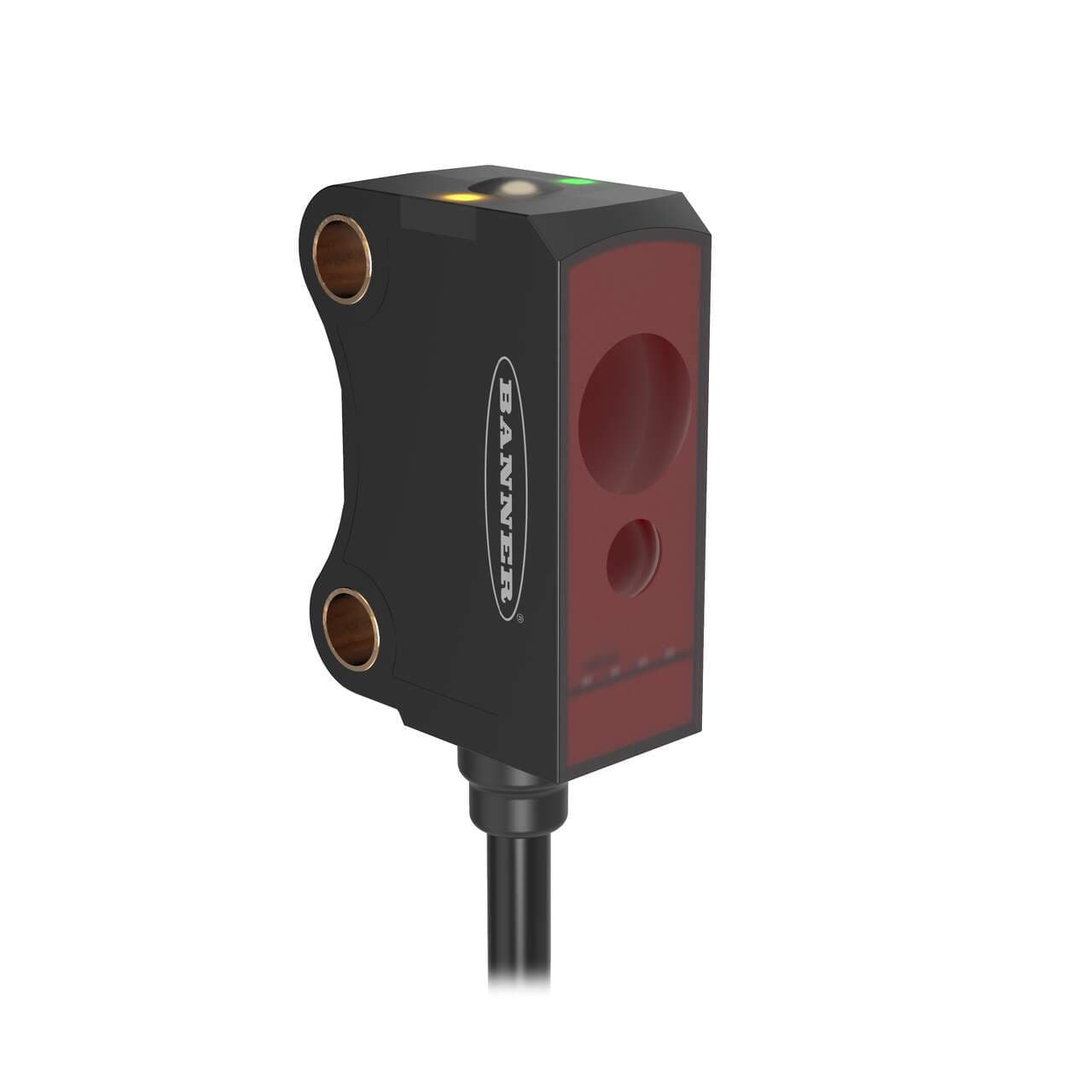

Banner Engineering VS8EANRQ is a photo-electric sensor with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable and offers a degree of protection rated at IP67, making it suitable for operation in ambient air temperatures ranging from -20 to +60 °C. This sensor operates in both Light-ON and Dark-ON modes and includes 1 x digital output (NPN transistor) with a response time of 0.5ms / 0.0005 s. It comes pre-wired with a 7.5" / 20cm pigtail terminated with a 4-pin Pico-style M8 connector. The rectangular-shaped sensor operates at a wavelength of 650 nm, emitting visible red light, and requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). Designed as a through-beam system / opposed mode with TEACH mode, it has a sensing distance of 3m. This model is part of the VS8 series and functions as a photo-electric sensor (receiver alone).

VS8EANRQ Related Documents

201958.pdf
