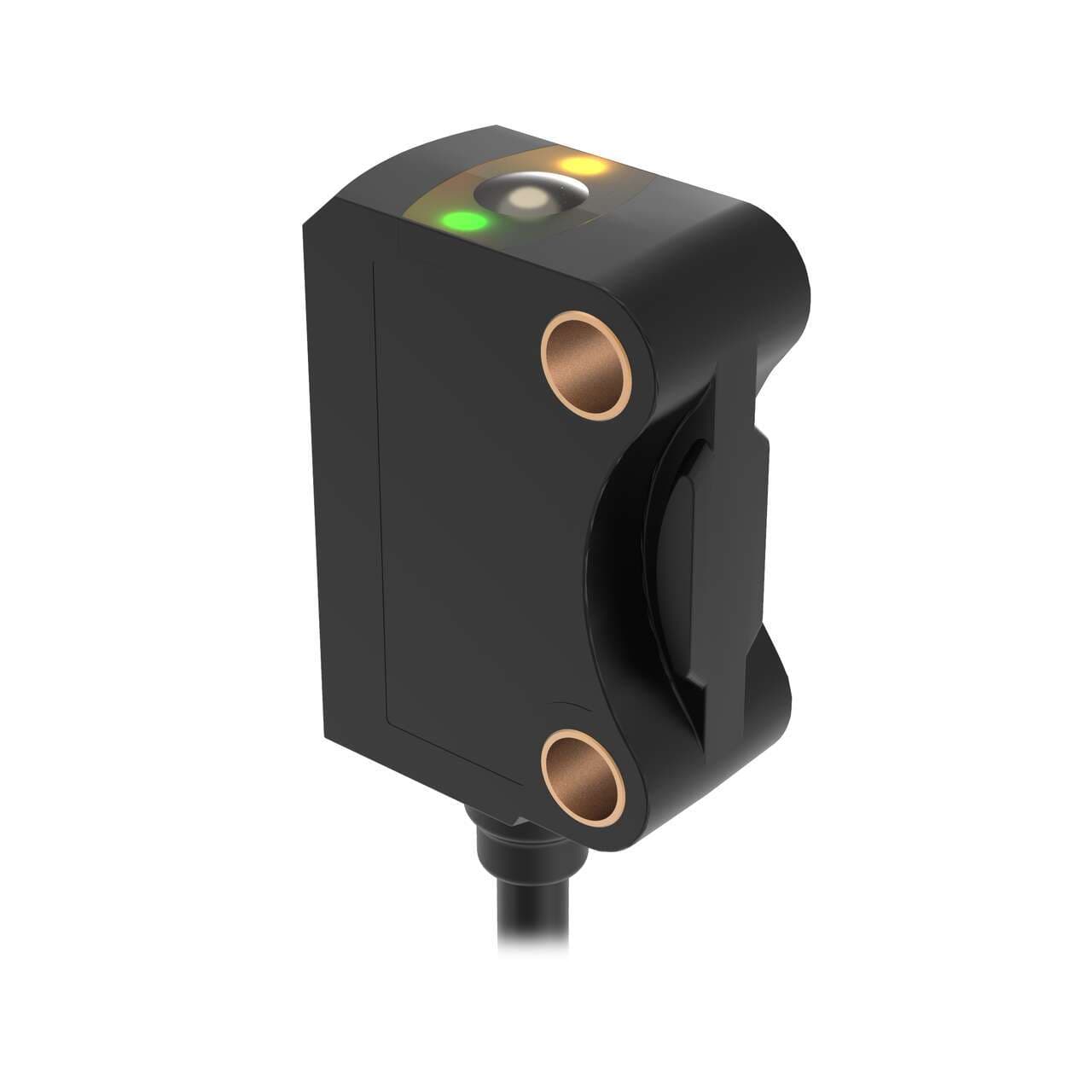

VS8EANLLP Banner Proximity Sensors

Name: VS8EANLLP
Brand: Banner
Price: 194 USD
Availability: BackOrder

Part#:VS8EANLLP

Alt. Part#:803432

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VS8 Series: Laser Polarized Retro Reflective; Range: 0.1 m to 2 m; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable

Product Details

Weight
34.0194 g
Country Of Origin
DE
Cable Length (m)
2
Outputs
NPN
Output response time (ms)
0.5
Special Feature: Intrinsically Safe
No
Laser Classification
Class 1
Connection
Cable
Power
DC
Operation
Light/Dark Operate
Number of Pins
4
Barrel Diameter (mm)
N/A
Sensing Mode (Detailed)
Polarized
Min Op. Temp. (°C)
-20
IP Rating
IP67
Indicator
LEDs
IO Link
No
Feature: Chemical Resistant
No
Housing Style
Rectangular
Max Sensing Distance (mm)
2000

Special Feature: Remote Teach

Yes

Lens Material

PMMA

Power Supply/Supply Voltage

10-30 V dc

Max Op. Temp. (°C)

Repeatability (µs)

N/A

Feature: Timing (Hold/Delay)

Sensing Mode (General)

Retroreflective

Primary Housing Material

PUR

Special Feature: Water Detection

NEMA Rating

N/A

Small Visible Spot

Laser

Sensing Beam

Visible Red Laser

Quick Disconnect Type

No QD

Opposed Mode Emitter/Receiver

N/A

Feature: Encapsulated

Adjustments

Teach Button

Feature: Hazardous Area

Sensing Beam Wavelength

655

Feature: Audible

Input/Output

Discrete

Delay at Power-up (ms)

300

DeviceNet

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EANLLP on Powermatic Associates is $194.00. Order now.

About the product

Banner Engineering VS8EANLLP is a polarized Class 1 laser photo-electric sensor designed for precise detection tasks. It features a thermoplastic housing, polymethyl methacrylate (PMMA) lens, and a polyurethane (PUR) cable, ensuring durability and resistance to environmental conditions with an IP67 degree of protection. This sensor operates within an ambient air temperature range of -20 to +50 °C and offers both Light-ON and Dark-ON operating modes. It is equipped with a single digital output (NPN transistor) and boasts a rapid response time of 0.5ms / 0.0005 s. The VS8EANLLP is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. Its rectangular shape and visible red light, with a wavelength of 655 nm, facilitate straightforward alignment. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is designed in a retro-reflective mode with TEACH mode functionality. It offers a sensing distance ranging from 10cm to 2m, making it versatile for a variety of applications within the VS8 series.

VS8EANLLP Related Documents

201958.pdf
