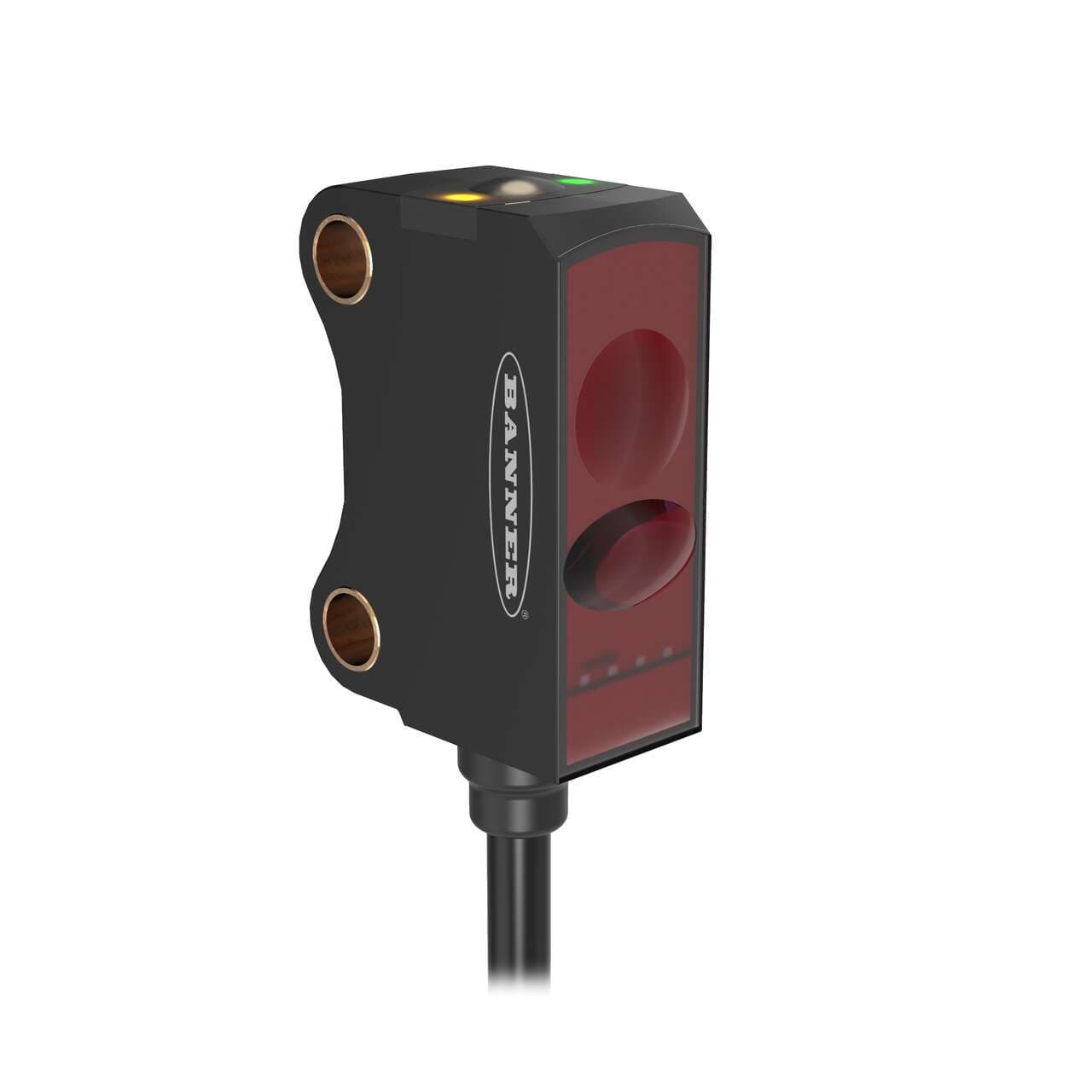

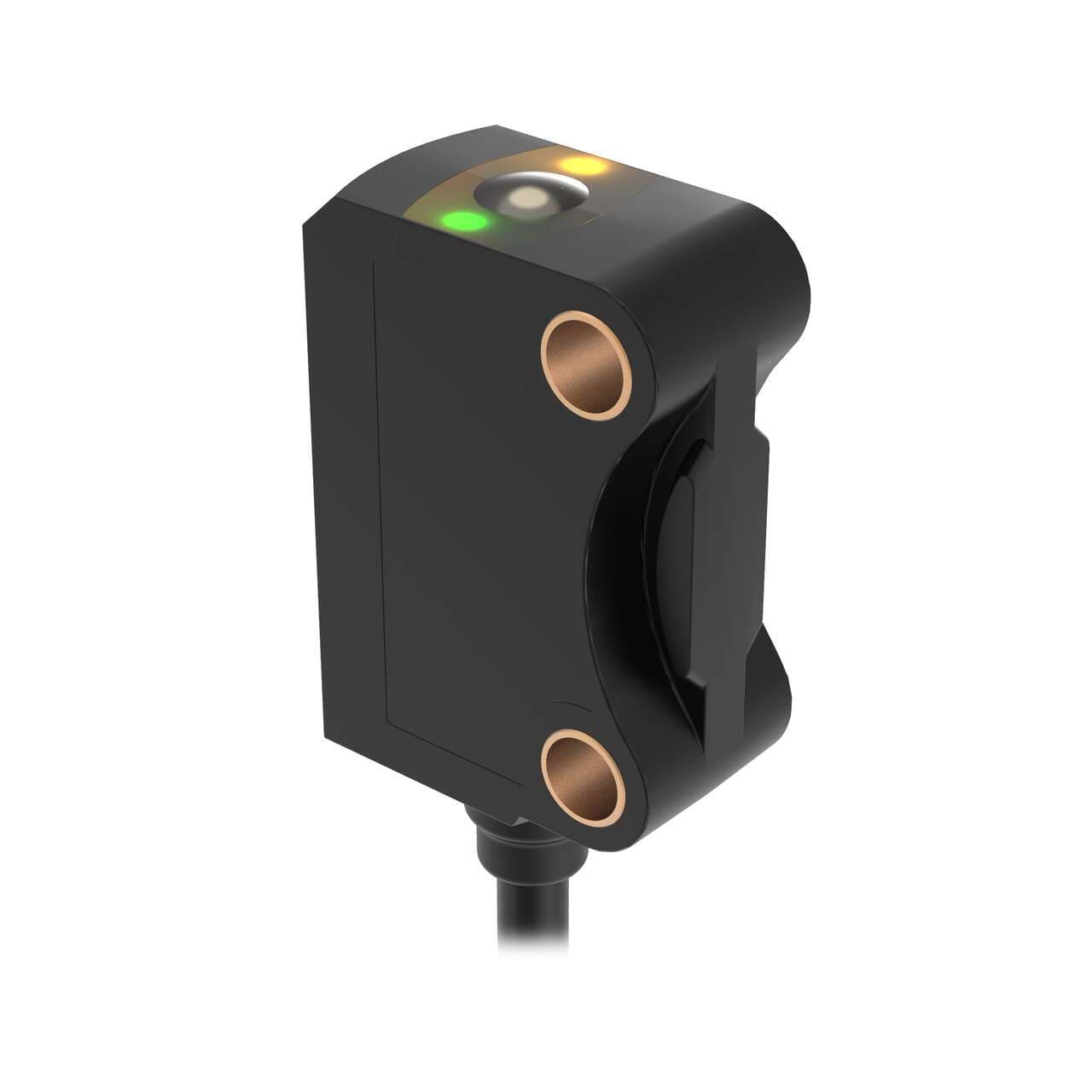

VS8EANLP Banner Proximity Sensors
Part#:VS8EANLP
Alt. Part#:803428
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
VS8 Series: Polarized Retro Reflective; Range: 0.1 m to 1.6 m; Input: 10-30 V dc; Output: NPN; 4-conductor 2 m Cable
Product Details
- Weight 31.297848 g
- Country Of Origin DE
- Light Color Visible red
- Material thermoplastic housing PMMA lns. PUR (cable)
- Sub-range name VS8 series
- Sensing distance 10cm...1.6m
- Operating mode Light-ON Dark-ON
- Response time 0.5ms / 0.0005 s
- Ambient air temperature for operation -20...+60 °C
- Primary brand Banner Engineering
- Functions Polarized photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Compliant with standard(s) cULus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (NPN transistor)
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Wavelength 650 nm
- Degree of protection IP67
- Order code / Manufacturer SKU 803428
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Outputs NPN
- Sensing Beam Visible Red LED
- DeviceNet No
- Input/Output Discrete
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 1600
- Delay at Power-up (ms) 300
- Barrel Diameter (mm) N/A
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Sensing Mode (General) Retroreflective
- Max Op. Temp. (°C) 60
- Special Feature: Intrinsically Safe No
- Feature: Encapsulated No
- Output response time (ms) 0.5
- NEMA Rating N/A
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Polarized
- Repeatability (µs) N/A
- Indicator LEDs
- IO Link No
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material PUR
- Connection Cable
- Special Feature: Water Detection No
- Sensing Beam Wavelength 650
- Lens Material PMMA
- Quick Disconnect Type No QD
- Feature: Audible No
- Power DC
- Special Feature: Remote Teach Yes
- Adjustments Teach Button
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS8EANLP on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering VS8EANLP is a polarized photo-electric sensor designed with a thermoplastic housing and polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity and offers a degree of protection rated at IP67, making it suitable for various industrial environments. This sensor operates within an ambient air temperature range of -20 to +60 °C and can function in both Light-ON and Dark-ON modes. It is equipped with a single digital output (NPN transistor) and boasts a rapid response time of 0.5ms / 0.0005 s. The VS8EANLP is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Its rectangular shape is designed for retro-reflective mode with TEACH mode functionality. The sensor emits a visible red light at a wavelength of 650 nm and is capable of sensing distances ranging from 10cm to 1.6m. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is part of the VS8 series.
