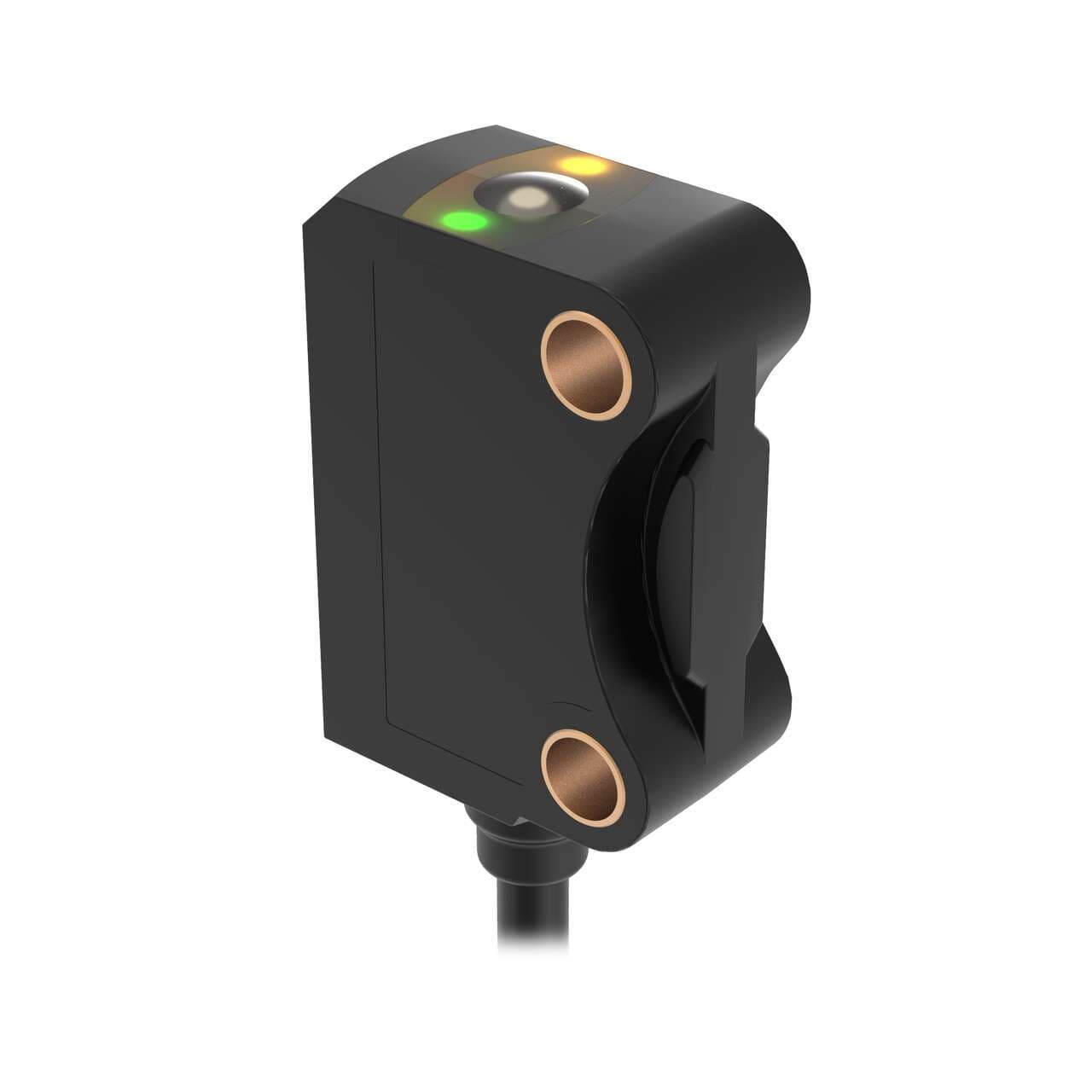

VS8EANLAF70Q5 Banner Proximity Sensors

Product Details

• Weight
  24.8568416 g
• Country Of Origin
  DE
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Light Color
  Visible red
• Design
  background suppression system
• Connection type
  Pre-wired with 7.5" / 200mm pigtail terminated with 4-pin Euro-style M12 connector
• Digital outputs
  1 x digital output (NPN transistor)
• Primary brand
  Banner Engineering
• Sensing distance
  5...70mm
• Material
  thermoplastic housing PMMA lns. PUR (cable)
• Order code / Manufacturer SKU
  803554
• Main function
  Sensor (Photo-electric)
• Shape
  Rectangular
• Degree of protection
  IP67
• Compliant with standard(s)
  cULus CE
• Sub-range name
  VS8 series
• Functions
  Adjustable-field class 1 Laser photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
• Wavelength
  655 nm
• Operating mode
  Light-ON Dark-ON
• Response time
  0.5ms / 0.0005 s
Ambient air temperature for operation
-20...+50 °C
Housing Style
Rectangular
Outputs
NPN
Delay at Power-up (ms)
300
Barrel Diameter (mm)
N/A
Laser Classification
Class 1
Output response time (ms)
0.5
IP Rating
IP67
Feature: Hazardous Area
No
Sensing Mode (General)
Proximity
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Intrinsically Safe
No
Feature: Encapsulated
No
Feature: Audible
No
Special Feature: Water Detection
No
Adjustments
Teach Button
IO Link
No
Small Visible Spot
Laser
Min Op. Temp. (°C)
-20
Power
DC
Max Sensing Distance (mm)
70
Sensing Beam Wavelength
655
Indicator
LEDs
NEMA Rating
N/A
Feature: Chemical Resistant
No
Input/Output
Discrete
Operation
Light/Dark Operate
Repeatability (µs)
N/A
Opposed Mode Emitter/Receiver
N/A
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Max Op. Temp. (°C)
50
Number of Pins
4
Feature: Timing (Hold/Delay)
No
Sensing Beam
Visible Red Laser
Quick Disconnect Type
M12 (Euro)
Primary Housing Material
PUR
Connection
Pigtail QD
Lens Material
PMMA
Special Feature: Remote Teach
Yes
DeviceNet
No
