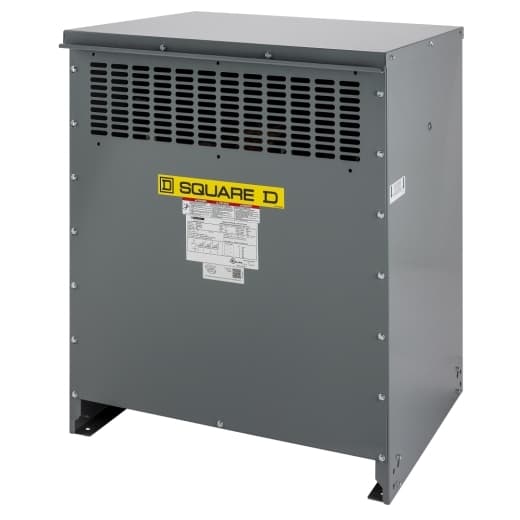

EXN150T3HFCU Schneider Electric Industrial Automation Components

Product Details

• Transformer BTU/HR
  1163 16.6 % 1496 25 % 3290 50 % 6281 75 % 10468 100 %
• Electrical Connection
  4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
• Mounting Support
  Floor Floor, with 7400FMB Ceiling, with 7400CMB22M
• Sound Level
  47 dB 3 dB NEMA ST-20
• Transformer Losses
  263 no load (core loss) 2805 load loss (coil loss)
• Temperature Rise
  115 °C 220 °C insulated
• Degree Of Protection
  UL type 2 UL type 3R, with 7400WS22M
• Number Of Tap-Offs
  2 2.5 % FCAN 4 2.5 % FCBN
• Number Of Mounting Holes
  0.51 in (13 mm)
• Net Weight
  1303.00 lb(US) (591.03 kg)
• Width
  33.66 in (855 mm)
• Depth
  32.56 in (827 mm)
• Height
  40.59 in (1031 mm)
• X/R Ratio
  2.39
• Inrush Current
  1476 A
• Let Through Current
  9.13 kA
• %IX
  4.26 %
• %IZ
  4.56 %
• DOE Efficiency
  98.94 % at 35 % load factor , 167 °F (75.0 °C)
• Basic IMP Level (BIL)
  10 kV
Coil Material
Copper
Secondary Voltage
208Y/120 V
Primary Operational Current
180.42 A 416.36 A 150 kVA
Type Of Cooling
Natural convection
Primary Voltage
480 V delta
Rated Operational Power In VA
150 kVA
Range Of Product
Square D
Network Frequency
60 Hz
Box Number
22M
Device Short Name
DOE 2016
Transformer Type
Energy efficient
Product Or Component Type
DOE 2016 energy efficient transformer
Device Application
Low voltage electrical distribution
Phase
3 phase
