Part#:PJL36100M69

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

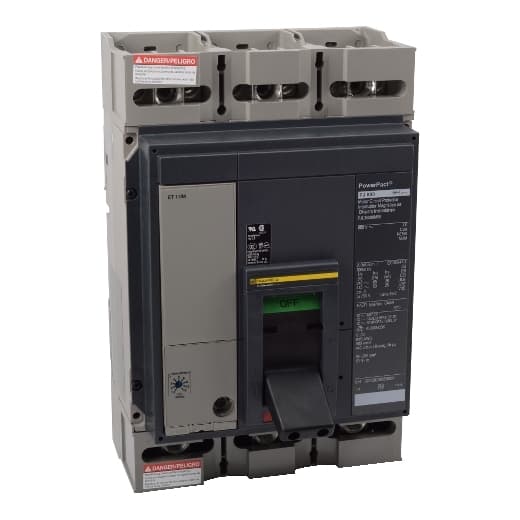

Square D by Schneider Electric PJL36100M69 is a Molded Case Circuit Breaker (MCCB) designed for mounting on a mounting plate. It features a rated current of 1000A and utilizes lugs for both load and line side connections. This breaker falls under the PowerPact PJL sub-range and operates at a rated voltage of 600V AC with a 3 Pole configuration. It offers protection functions including Long-time (L) and Instantaneous (I) protection, with a trip current rating of 1000 AT and a frame current rating of 1200 AF. The short circuit breaking rating is specified as 100kA at 240Vac, 65kA at both 480Y/277Vac and 480Vac, and 25kA at both 600Y/347Vac and 600Vac, covering all protected poles. The trip unit type is an ET3.0 (LI) Electronic, ensuring precise operation.

Product Details

  • Certifications
    CSA IEC UL Listed
  • Breaking Capacity
    100 kA 240 V AC 65 kA 480 V AC 25 kA 600 V AC
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil) 8.85…11.51 lbf.in (1.0…1.3 N.m)
  • Electrical Connection
    Lugs load Lugs line
  • Depth
    8.05 in (204.47 mm)
  • Width
    8.27 in (210.06 mm)
  • Height
    16.16 in (410.46 mm)
  • Circuit Breaker Rating Code
    J
  • Poles Description
    3P
  • Mounting Mode
    Unit mount
  • Mounting Location
    Bolt-on
  • Module Type
    P-Frame
  • Rated Operatioal Voltage
    600 V AC
  • AWG Gauge
    AWG 3/0...500 kcmil aluminium/copper)4
  • Trip Unit Technology
    Thermal-magnetic
  • Rated Current
    1000 A
  • Current Sensor Rating Range
    1000 A
  • Range
    PowerPact P
  • Product Or Component Type
    Circuit breaker

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PJL36100M69 on Powermatic Associates is $12,705.00. Order now.
