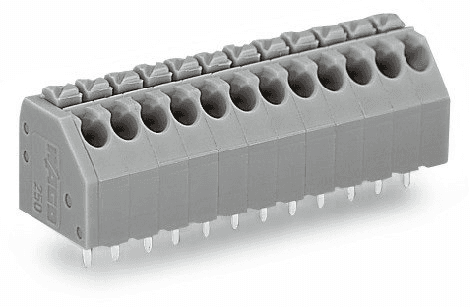

250-115 WAGO Industrial Automation Components

WAGO 250-115 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal and rated voltages of 160V for overvoltage category III/2 and 320V for category II/2, with a rated impulse voltage of 2.5kV for both categories. The rated current is 8A according to IEC/EN standards. Under UL 1059, it has a rated voltage of 300V and a rated current of 5A for both Use Groups B and D. CSA approvals indicate a rated voltage of 300V and a rated current of 10A for Use Groups B and D. This part includes 15 connection points, with a single connection type and level, utilizing Push-in CAGE CLAMP technology and push-button actuation. It accommodates solid and fine-stranded conductors ranging from 0.2 to 1.5mm2 (24 to 16 AWG), with strip length specifications of 8.5 to 9.5mm. The conductor connection direction to the PCB is at a 45-degree angle, and the pole number is 15. Physical dimensions include a pin spacing of 3.5mm, width of 54mm, height of 16.7mm, depth of 12mm, and a solder pin length of 3.4mm. The terminal strip is designed for THT PCB contact with one solder pin per potential. It is made from gray Polyamide (PA66) with a flammability class of UL94 V0 and features a copper alloy clamping spring with tin contact plating. The part has a fire load of 0.156MJ and weighs 7g. It operates within a temperature range of -60 to +105°C. Packaged in boxes of 80 pieces, it has a GTIN of 4044918647892 and a customs tariff number of 85369010000. This product is RoHS compliant without exemptions and originates from CH.
